System Design Interview - An Insider’s Guide

Category: career
By: Alex Xu
:execute getline(".")
inoremap png ![](https://raw.githubusercontent.com/arafatm/assets/main/img/system.design/15.10.png)<ESC>5<left>r

test

System Design Interview PDF

Ask a lot of questions

Twitter

Youtube

URL Shortener

Solutions

Interesting examples

Common Questions

Video Description of a lot of these designs

https://www.youtube.com/​channel/​UC1HEtidkUVwmofYXnR3PYtg

Design Facebook news feed -

TOP FACEBOOK SYSTEM DESIGN INTERVIEW QUESTIONS (PART 1) | Facebook Pirate Interview Round

Design live commenting

Facebook Chat

Design Instagram

Design Proximity Server

Typeahead

Top N Songs

Design Privacy Settings

Design Web Crawler

Netflix Design Interview

(223) TOP FACEBOOK SYSTEM DESIGN INTERVIEW QUESTIONS (PART 1) | Facebook Pirate Interview Round - YouTube

1. Design Facebook News Feed

Key features

Design Goals:

Scale Estimations:

Feed Generation

  1. Obtain IDs of all friends and pages followed
  2. Retrieve most recent and popular posts
  3. Rank these posts based on relevance, and store in cache
  4. Top posts, ~30, returned and displayed on UI
  5. When end of feed is reached, next 30 top posts will be displayed

Updating Feed?

  1. Run feed generation on a 5 min queue
  2. Notify user of updated feed

Feed Publishing (Pull vs Push)

Pull (Fan out on load)

Push Model (Fan out on write)

Ideal solution is hybrid

Provide search bar to allow searching posts/status/video/content posted by friends and pages they follow

Key Features

  1. User can search status posted by friends and followed pages
  2. Status only contains text

Design Goals

  1. minimum latency
  2. HA
  3. Eventual consistency (CAP)
  4. Read heavy service

Scale estimations

  1. 1B DAU
  2. 5B daily search
  3. 1B status generated a day

REST APIs

/searchStatuses

  1. Read API to fetch search results
  2. Params: UserID, search query, max results, page number, timestamp

/postStatus

  1. write API to post new status
  2. Params: UID, Status content, timestamp

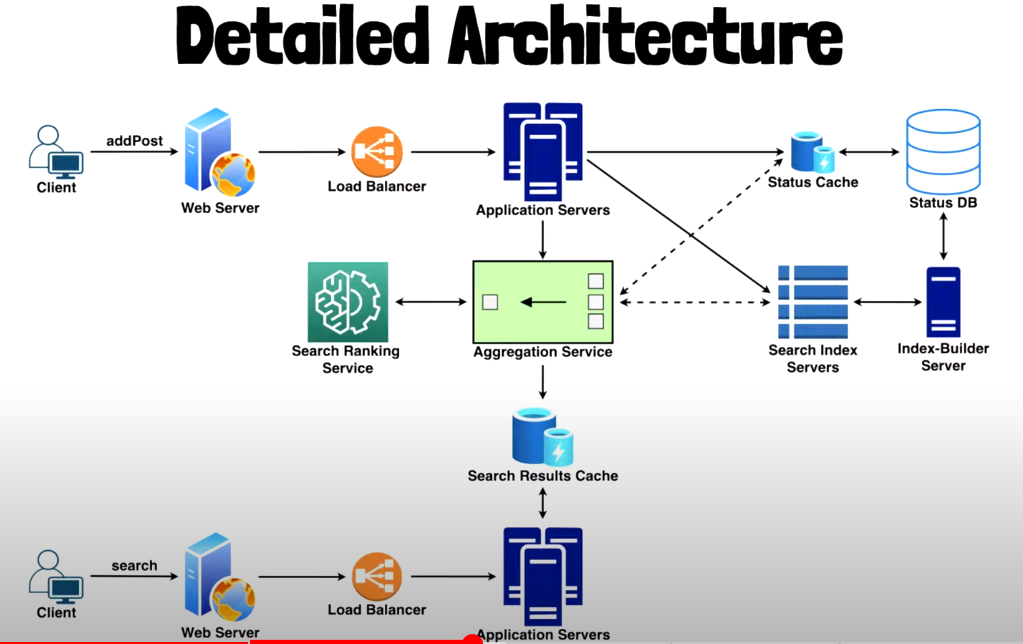

High Level Design

  1. Store status in a DB
  2. Build search index to keep track of which word appears in which status
  3. Index to quickly find status

Important Questions

  1. How is search index built for quick retrieval
  2. How to store and shard search index
  3. How to rebuild index with fault-tolerant design
  4. What happens if app server dies
  5. How to balance load across multiple app servers

3. Live Commenting

Key Features

  1. enable real-time commenting on posts
  2. User sees new comments real-time as they're posted

Challenging

  1. Users are continuously scrolling news feed
  2. Posts that are visible change frequently

Scale Estimations

  1. Every minute, FB servers 100M content that may receive comments
  2. Each minute, users submits 1M comments

High Level Design

Push (Fan-out-on-write) vs Pull(Fan-out-on-load)

  1. Push: maintains connection with client directly to send new comments (websockets?)
  2. Pull: User has to request updates

Storage

  1. need to store millions of viewer-to-content associations per second
  2. 2 Approaches:
  3. Write locally, Read globally
  4. Write globally, Read locally

4. Messenger/WhatsApp

Key Features

Design Goals

  1. minimum latency
  2. high consistency
  3. CAP: tolerate lower avialability for high consistency

Scale Estimations

  1. 1B DAU
  2. Each user sends ~50 messages daily

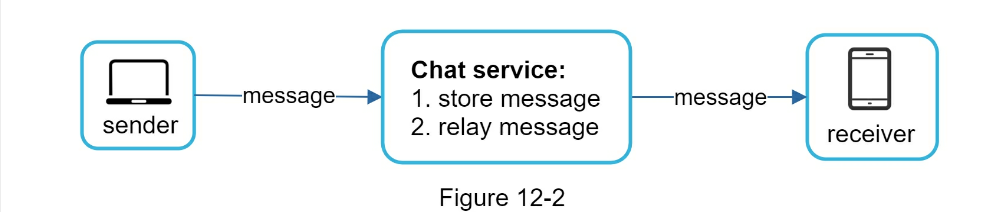

High Level Design

  1. chat server as main component of design. Orchestrate communication between users
  2. User connects to server to send message
  3. server passes message to user and stores in DB

Use Cases

  1. receive incoming messages
  2. deliver outgoing messages
  3. store and retrieve messages form db
  4. keep user status and notify "friends" of change

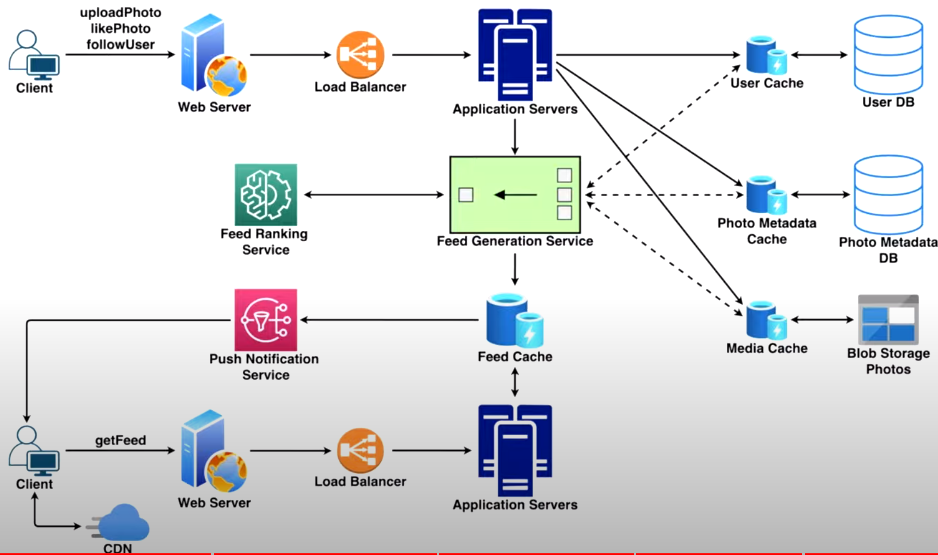

5. Instagram

Key Features

  1. User can upload and share photos
  2. Follow users
  3. Like photos
  4. Get a scrollable feed of photos posted by followed users

Design Goals

  1. minimum latency
  2. HA
  3. Eventually consistency (CAP)
  4. Read-heavy

Scale Estimations

  1. 1B DAU
  2. 5B feed requests daily
  3. 500M photos uploaded daily
  4. each photo liked 5 times avg
  5. Avg user follows 100 other users

Feed Generation

  1. Obtain IDs of all users followed
  2. retrieve most recent/popular photos
  3. rank photos based on relevance and store in cache
  4. Top photos, about 20 in number will be returned and displayed on UI
  5. When end of feed is reached, retreive next set of top photos

Feed Publishing

Pull vs Push

Notes

1 Scale

2 Estimation

3 Interview

  1. Understand problem and establish design scope
  2. Step 2 - Propose High-Level Design And Get Buy-In
  3. Design Deep Dive
  4. Wrap Up

Vertical vs Horizontal Scaling

CHAPTER 1: SCALE FROM ZERO TO MILLIONS OF USERS

CHAPTER 2: BACK-OF-THE-ENVELOPE ESTIMATION

CHAPTER 3: A FRAMEWORK FOR SYSTEM DESIGN INTERVIEWS

CHAPTER 4: DESIGN A RATE LIMITER

CHAPTER 5: DESIGN CONSISTENT HASHING

CHAPTER 6: DESIGN A KEY-VALUE STORE

CHAPTER 7: DESIGN A UNIQUE ID GENERATOR IN DISTRIBUTED SYSTEMS

CHAPTER 8: DESIGN A URL SHORTENER

CHAPTER 9: DESIGN A WEB CRAWLER

CHAPTER 10: DESIGN A NOTIFICATION SYSTEM

CHAPTER 11: DESIGN A NEWS FEED SYSTEM

CHAPTER 12: DESIGN A CHAT SYSTEM

CHAPTER 13: DESIGN A SEARCH AUTOCOMPLETE SYSTEM

CHAPTER 14: DESIGN YOUTUBE

CHAPTER 15: DESIGN GOOGLE DRIVE

CHAPTER 1: SCALE FROM ZERO TO MILLIONS OF USERS

Single server setup

single server setup

To understand this setup, it is helpful to investigate the request flow and traffic source.

request flow

  1. Users access websites through domain names, such as api.mysite.com. Usually, the Domain Name System (DNS) is a paid service provided by 3rd parties and not hosted by our servers.
  2. Internet Protocol (IP) address is returned to the browser or mobile app. In the example, IP address 15.125.23.214 is returned.
  3. Once the IP address is obtained, Hypertext Transfer Protocol (HTTP) [1] requests are sent directly to your web server.
  4. The web server returns HTML pages or JSON response for rendering.

traffic source

GET /users/12 – Retrieve user object for id = 12

{
  "id": 12,
  "firstName": "John",
  ...,
  "address":{
  "streetAddress": "21 2nd Street",
  ...,
  }
}

Database

Split Web/DB to allow independent scaling

db

Which databases to use?

Generally RDBMS are the best option. However, might not suitable for your specific use cases, e.g.

Vertical scaling vs horizontal scaling

Vertical scaling, referred to as “scale up”, means the process of adding more power (CPU, RAM, etc.) to your servers.

Horizontal scaling, referred to as “scale-out”, allows you to scale by adding more servers into your pool of resources.

When traffic is low, vertical scaling is a great option, and the simplicity of vertical scaling is its main advantage. Unfortunately, it comes with serious limitations.

Horizontal scaling is more desirable for large scale applications due to the limitations of vertical scaling.

In the previous design, users are connected to the web server directly. Users will unable to access the website if the web server is offline. In another scenario, if many users access the web server simultaneously and it reaches the web server’s load limit, users generally experience slower response or fail to connect to the server. A load balancer is the best technique to address these problems.

Load balancer

A load balancer evenly distributes incoming traffic among web servers that are defined in a load-balanced set.

load balancer

As shown in Figure 1-4, users connect to the public IP of the load balancer directly. With this setup, web servers are unreachable directly by clients anymore.

For better security, private IPs are used for communication between servers. A private IP is an IP address reachable only between servers in the same network; however, it is unreachable over the internet. The load balancer communicates with web servers through private IPs.

In Figure 1-4, after a load balancer and a second web server are added, we successfully solved no failover issue and improved the availability of the web tier. Details are explained below:

Now the web tier looks good, what about the data tier? The current design has one database, so it does not support failover and redundancy. Database replication is a common technique to address those problems. Let us take a look.

Database replication

Quoted from Wikipedia: “Database replication can be used in many database management systems, usually with a master/slave relationship between the original (master) and the copies (slaves)” [3].

A master database generally only supports write operations. A slave database gets copies of the data from the master database and only supports read operations.

All the data-modifying commands like insert, delete, or update must be sent to the master database. Most applications require a much higher ratio of reads to writes; thus, the number of slave databases in a system is usually larger than the number of master databases. Figure 1-5 shows a master database with multiple slave databases.

master slave

Advantages of database replication:

In the previous section, we discussed how a load balancer helped to improve system availability. We ask the same question here: what if one of the databases goes offline? The architectural design discussed in Figure 1-5 can handle this case:

In production systems, promoting a new master is more complicated as the data in a slave database might not be up to date. The missing data needs to be updated by running data recovery scripts. Although some other replication methods like multi-masters and circular replication could help, those setups are more complicated; and their discussions are beyond the scope of this book. Interested readers should refer to the listed reference materials [4][5].

Figure 1-6 shows the system design after adding the load balancer and database replication.

1-6 db replication

Let us take a look at the design:

Now, you have a solid understanding of the web and data tiers, it is time to improve the load/response time. This can be done by adding a cache layer and shifting static content (JavaScript/CSS/image/video files) to the content delivery network (CDN).

Cache

A cache is a temporary storage area that stores the result of expensive responses or frequently accessed data in memory so that subsequent requests are served more quickly. As illustrated in Figure 1-6, every time a new web page loads, one or more database calls are executed to fetch data. The application performance is greatly affected by calling the database repeatedly.

The cache can mitigate this problem.

Cache tier

The cache tier is a temporary data store layer, much faster than the database. The benefits of having a separate cache tier include better system performance, ability to reduce database workloads, and the ability to scale the cache tier independently. Figure 1-7 shows a possible setup of a cache server:

1-7 Cache

After receiving a request, a web server first checks if the cache has the available response. If it has, it sends data back to the client. If not, it queries the database, stores the response in cache, and sends it back to the client. This caching strategy is called a read-through cache.

Other caching strategies are available depending on the data type, size, and access patterns. A previous study explains how different caching strategies work [6].

Interacting with cache servers is simple because most cache servers provide APIs for common programming languages. The following code snippet shows typical Memcached APIs:

SECONDS=1
cache.set('myKey', 'hi there', 3600 * SECONDS)
cache.get('myKey')

Considerations for using cache

Here are a few considerations for using a cache system:

Content delivery network (CDN)

A CDN is a network of geographically dispersed servers used to deliver static content. CDN servers cache static content like images, videos, CSS, JavaScript files, etc.

Dynamic content caching is a relatively new concept and beyond the scope of this book. It enables the caching of HTML pages that are based on request path, query strings, cookies, and request headers. Refer to the article mentioned in reference material [9] for more about this. This book focuses on how to use CDN to cache static content.

Here is how CDN works at the high-level: when a user visits a website, a CDN server closest to the user will deliver static content. Intuitively, the further users are from CDN servers, the slower the website loads. For example, if CDN servers are in San Francisco, users in Los Angeles will get content faster than users in Europe. Figure 1-9 is a great example that shows how CDN improves load time.

CDN

Figure 1-10 demonstrates the CDN workflow.

CDN workflow

  1. User A tries to get image.png by using an image URL. The URL’s domain is provided by the CDN provider. The following two image URLs are samples used to demonstrate what image URLs look like on Amazon and Akamai CDNs:
  1. If the CDN server does not have image.png in the cache, the CDN server requests the file from the origin, which can be a web server or online storage like Amazon S3.
  2. The origin returns image.png to the CDN server, which includes optional HTTP header Time-to-Live (TTL) which describes how long the image is cached.
  3. The CDN caches the image and returns it to User A. The image remains cached in the CDN until the TTL expires.
  4. User B sends a request to get the same image.
  5. The image is returned from the cache as long as the TTL has not expired.

Considerations of using a CDN

CDN & cache

Figure 1-11 shows the design after the CDN and cache are added.

  1. Static assets (JS, CSS, images, etc.,) are no longer served by web servers. They are fetched from the CDN for better performance.
  2. The database load is lightened by caching data.

Stateless web tier

Now it is time to consider scaling the web tier horizontally. For this, we need to move state (for instance user session data) out of the web tier. A good practice is to store session data in the persistent storage such as relational database or NoSQL. Each web server in the cluster can access state data from databases. This is called stateless web tier.

Stateful architecture

A stateful server and stateless server has some key differences. A stateful server remembers client data (state) from one request to the next. A stateless server keeps no state information.

stateful architecture

In Figure 1-12, user A’s session data and profile image are stored in Server 1. To authenticate User A, HTTP requests must be routed to Server 1. If a request is sent to other servers like Server 2, authentication would fail because Server 2 does not contain User A’s session data.

Similarly, all HTTP requests from User B must be routed to Server 2; all requests from User C must be sent to Server 3.

The issue is that every request from the same client must be routed to the same server. This can be done with sticky sessions in most load balancers [10]; however, this adds the overhead. Adding or removing servers is much more difficult with this approach. It is also challenging to handle server failures.

Stateless architecture

Figure 1-13 shows the stateless architecture.

stateless architecture

In this stateless architecture, HTTP requests from users can be sent to any web servers, which fetch state data from a shared data store. State data is stored in a shared data store and kept out of web servers. A stateless system is simpler, more robust, and scalable.

Figure 1-14 shows the updated design with a stateless web tier.

stateless web tier

In Figure 1-14, we move the session data out of the web tier and store them in the persistent data store. The shared data store could be a relational database, Memcached/Redis, NoSQL, etc. The NoSQL data store is chosen as it is easy to scale. Autoscaling means adding or removing web servers automatically based on the traffic load. After the state data is removed out of web servers, auto-scaling of the web tier is easily achieved by adding or removing servers based on traffic load.

Your website grows rapidly and attracts a significant number of users internationally. To improve availability and provide a better user experience across wider geographical areas, supporting multiple data centers is crucial.

Data centers

Figure 1-15 shows an example setup with two data centers. In normal operation, users are geoDNS-routed, also known as geo-routed, to the closest data center, with a split traffic of x% in US-East and (100 – x)% in US-West. geoDNS is a DNS service that allows domain names to be resolved to IP addresses based on the location of a user.

DC

In the event of any significant data center outage, we direct all traffic to a healthy data center.

In Figure 1-16, data center 2 (US-West) is offline, and 100% of the traffic is routed to data center 1 (US-East).

DC offline

Several technical challenges must be resolved to achieve multi-data center setup:

To further scale our system, we need to decouple different components of the system so they can be scaled independently. Messaging queue is a key strategy employed by many realworld distributed systems to solve this problem.

Message queue

A message queue is a durable component, stored in memory, that supports asynchronous communication. It serves as a buffer and distributes asynchronous requests. The basic architecture of a message queue is simple. Input services, called producers/publishers, create messages, and publish them to a message queue. Other services or servers, called consumers/subscribers, connect to the queue, and perform actions defined by the messages. The model is shown in Figure 1-17.

MQ

Decoupling makes the message queue a preferred architecture for building a scalable and reliable application. With the message queue, the producer can post a message to the queue when the consumer is unavailable to process it. The consumer can read messages from the queue even when the producer is unavailable.

Consider the following use case: your application supports photo customization, including cropping, sharpening, blurring, etc. Those customization tasks take time to complete. In Figure 1-18, web servers publish photo processing jobs to the message queue. Photo processing workers pick up jobs from the message queue and asynchronously perform photo customization tasks. The producer and the consumer can be scaled independently. When the size of the queue becomes large, more workers are added to reduce the processing time.

However, if the queue is empty most of the time, the number of workers can be reduced.

MQ Photos

Adding message queues and different tools

Figure 1-19 shows the updated design. Due to the space constraint, only one data center is shown in the figure.

  1. The design includes a message queue, which helps to make the system more loosely coupled and failure resilient.
  2. Logging, monitoring, metrics, and automation tools are included.

LMA

As the data grows every day, your database gets more overloaded. It is time to scale the data tier.

Database scaling

There are two broad approaches for database scaling: vertical scaling and horizontal scaling.

Millions of users and beyond

Scaling a system is an iterative process. Iterating on what we have learned in this chapter could get us far. More fine-tuning and new strategies are needed to scale beyond millions of users. For example, you might need to optimize your system and decouple the system to even smaller services. All the techniques learned in this chapter should provide a good foundation to tackle new challenges. To conclude this chapter, we provide a summary of how we scale our system to support millions of users:

Congratulations on getting this far! Now give yourself a pat on the back. Good job!

Reference materials

CHAPTER 2: BACK-OF-THE-ENVELOPE ESTIMATION

In a system design interview, sometimes you are asked to estimate system capacity or performance requirements using a back-of-the-envelope estimation. According to Jeff Dean,

Google Senior Fellow, “back-of-the-envelope calculations are estimates you create using a combination of thought experiments and common performance numbers to get a good feel for which designs will meet your requirements” [1].

You need to have a good sense of scalability basics to effectively carry out back-of-theenvelope estimation. The following concepts should be well understood: power of two [2], latency numbers every programmer should know, and availability numbers.

Power of two

Although data volume can become enormous when dealing with distributed systems, calculation all boils down to the basics. To obtain correct calculations, it is critical to know the data volume unit using the power of 2. A byte is a sequence of 8 bits. An ASCII character uses one byte of memory (8 bits). Below is a table explaining the data volume unit (Table 2- 1).

Power Approx Value Full Name Short Name
10 1 Thousand 1 Kilobyte 1 KB
20 1 Million 1 Megabyte 1 MB
30 1 Billion 1 Gigabyte 1 GB
40 1 Trillion 1 Terabyte 1 TB
50 1 Quadrillion 1 Petabyte 1 PB

Latency numbers every programmer should know

Dr. Dean from Google reveals the length of typical computer operations in 2010 [1]. Some numbers are outdated as computers become faster and more powerful. However, those numbers should still be able to give us an idea of the fastness and slowness of different computer operations.

Operation Name Time
L1 cache reference 0.5 ns
Branch mispredict 5 ns
L2 cache reference 7 ns
Mutex lock/unlock 100 ns
Main memory reference 100 ns
Compress 1K bytes with Zippy 10k ns = 10 µs
Send 2K bytes over 1 Gbps network 20k ns = 20 µs
Read 1 MB sequentially from memory 250k ns = 250 µs
Round trip within the same datacenter 500k ns = 500 µs
Disk seek 10m ns = 10 ms
Read 1 MB sequentially from the network 10m ns = 10 ms
Read 1 MB sequentially from disk 30m ns = 30 ms
Send packet CA -> ND -> CA 150m ns = 150 ms

A Google software engineer built a tool to visualize Dr. Dean’s numbers. The tool also takes the time factor into consideration. Figures 2-1 shows the visualized latency numbers as of 2020 (source of figures: reference material [3]).

latency

By analyzing the numbers in Figure 2-1, we get the following conclusions:

Availability numbers

High availability is the ability of a system to be continuously operational for a desirably long period of time. High availability is measured as a percentage, with 100% means a service that has 0 downtime. Most services fall between 99% and 100%.

A service level agreement (SLA) is a commonly used term for service providers. This is an agreement between you (the service provider) and your customer, and this agreement formally defines the level of uptime your service will deliver. Cloud providers Amazon [4], Google [5] and Microsoft [6] set their SLAs at 99.9% or above. Uptime is traditionally measured in nines. The more the nines, the better. As shown in Table 2-3, the number of nines correlate to the expected system downtime.

Availability Downtime / day Downtime / year
99% 14.40 min 3.65 days
99.9% 1.44 min 8.77 hours
99.99% 8.64 sec 52.60 mins
99.999% 864 ms 5.26 mins
99.9999% 86.4 ms 31.56 sec

Example: Estimate Twitter QPS and storage requirements

Please note the following numbers are for this exercise only as they are not real numbers from Twitter.

Assumptions:

Estimations:

Tips

Back-of-the-envelope estimation is all about the process. Solving the problem is more important than obtaining results. Interviewers may test your problem-solving skills.

Here are a few tips to follow:

Congratulations on getting this far! Now give yourself a pat on the back. Good job!

Reference materials

CHAPTER 3: A FRAMEWORK FOR SYSTEM DESIGN INTERVIEWS

You have just landed a coveted on-site interview at your dream company. The hiring coordinator sends you a schedule for that day. Scanning down the list, you feel pretty good about it until your eyes land on this interview session - System Design Interview.

System design interviews are often intimidating. It could be as vague as “designing a wellknown product X?”. The questions are ambiguous and seem unreasonably broad. Your weariness is understandable. After all, how could anyone design a popular product in an hour that has taken hundreds if not thousands of engineers to build?

The good news is that no one expects you to. Real-world system design is extremely complicated. For example, Google search is deceptively simple; however, the amount of technology that underpins that simplicity is truly astonishing. If no one expects you to design a real-world system in an hour, what is the benefit of a system design interview?

The system design interview simulates real-life problem solving where two co-workers collaborate on an ambiguous problem and come up with a solution that meets their goals. The problem is open-ended, and there is no perfect answer. The final design is less important compared to the work you put in the design process. This allows you to demonstrate your design skill, defend your design choices, and respond to feedback in a constructive manner.

Let us flip the table and consider what goes through the interviewer’s head as she walks into the conference room to meet you. The primary goal of the interviewer is to accurately assess your abilities. The last thing she wants is to give an inconclusive evaluation because the session has gone poorly and there are not enough signals. What is an interviewer looking for in a system design interview?

Many think that system design interview is all about a person's technical design skills. It is much more than that. An effective system design interview gives strong signals about a person's ability to collaborate, to work under pressure, and to resolve ambiguity constructively. The ability to ask good questions is also an essential skill, and many interviewers specifically look for this skill.

A good interviewer also looks for red flags. Over-engineering is a real disease of many engineers as they delight in design purity and ignore tradeoffs. They are often unaware of the compounding costs of over-engineered systems, and many companies pay a high price for that ignorance. You certainly do not want to demonstrate this tendency in a system design interview. Other red flags include narrow mindedness, stubbornness, etc.

In this chapter, we will go over some useful tips and introduce a simple and effective framework to solve system design interview problems.

A 4-step process for effective system design interview

Every system design interview is different. A great system design interview is open-ended and there is no one-size-fits-all solution. However, there are steps and common ground to cover in every system design interview.

Step 1 - Understand the problem and establish design scope

"Why did the tiger roar?" A hand shot up in the back of the class. "Yes, Jimmy?", the teacher responded. "Because he was HUNGRY". "Very good Jimmy."

Throughout his childhood, Jimmy has always been the first to answer questions in the class.

Whenever the teacher asks a question, there is always a kid in the classroom who loves to take a crack at the question, no matter if he knows the answer or not. That is Jimmy.

Jimmy is an ace student. He takes pride in knowing all the answers fast. In exams, he is usually the first person to finish the questions. He is a teacher's top choice for any academic competition.

DON'T be like Jimmy.

In a system design interview, giving out an answer quickly without thinking gives you no bonus points. Answering without a thorough understanding of the requirements is a huge red flag as the interview is not a trivia contest. There is no right answer.

So, do not jump right in to give a solution. Slow down. Think deeply and ask questions to clarify requirements and assumptions. This is extremely important.

As an engineer, we like to solve hard problems and jump into the final design; however, this approach is likely to lead you to design the wrong system. One of the most important skills as an engineer is to ask the right questions, make the proper assumptions, and gather all the information needed to build a system. So, do not be afraid to ask questions.

When you ask a question, the interviewer either answers your question directly or asks you to make your assumptions. If the latter happens, write down your assumptions on the whiteboard or paper. You might need them later.

What kind of questions to ask? Ask questions to understand the exact requirements. Here is a list of questions to help you get started:

What specific features are we going to build? How many users does the product have? How fast does the company anticipate to scale up? What are the anticipated scales in 3 months, 6 months, and a year? What is the company’s technology stack? What existing services you might leverage to simplify the design?

Example

If you are asked to design a news feed system, you want to ask questions that help you clarify the requirements. The conversation between you and the interviewer might look like this:

Step 2 - Propose high-level design and get buy-in

In this step, we aim to develop a high-level design and reach an agreement with the interviewer on the design. It is a great idea to collaborate with the interviewer during the process.

If possible, go through a few concrete use cases. This will help you frame the high-level design. It is also likely that the use cases would help you discover edge cases you have not yet considered.

Should we include API endpoints and database schema here? This depends on the problem.

For large design problems like “Design Google search engine”, this is a bit of too low level.

For a problem like designing the backend for a multi-player poker game, this is a fair game.

Communicate with your interviewer.

Example

Let us use “Design a news feed system” to demonstrate how to approach the high-level design. Here you are not required to understand how the system actually works. All the details will be explained in Chapter 11.

At the high level, the design is divided into two flows: feed publishing and news feed building.

Figure 3-1 and Figure 3-2 present high-level designs for feed publishing and news feed building flows, respectively.

feed publishing news feed

Step 3 - Design deep dive

At this step, you and your interviewer should have already achieved the following objectives:

You shall work with the interviewer to identify and prioritize components in the architecture.

It is worth stressing that every interview is different. Sometimes, the interviewer may give off hints that she likes focusing on high-level design. Sometimes, for a senior candidate interview, the discussion could be on the system performance characteristics, likely focusing on the bottlenecks and resource estimations. In most cases, the interviewer may want you to dig into details of some system components. For URL shortener, it is interesting to dive into the hash function design that converts a long URL to a short one. For a chat system, how to reduce latency and how to support online/offline status are two interesting topics.

Time management is essential as it is easy to get carried away with minute details that do not demonstrate your abilities. You must be armed with signals to show your interviewer. Try not to get into unnecessary details. For example, talking about the EdgeRank algorithm of Facebook feed ranking in detail is not ideal during a system design interview as this takes much precious time and does not prove your ability in designing a scalable system.

Example

At this point, we have discussed the high-level design for a news feed system, and the interviewer is happy with your proposal. Next, we will investigate two of the most important use cases:

  1. Feed publishing
  2. News feed retrieval

Figure 3-3 and Figure 3-4 show the detailed design for the two use cases, which will be explained in detail in Chapter 11.

feed publishing news feed

Step 4 - Wrap up

In this final step, the interviewer might ask you a few follow-up questions or give you the freedom to discuss other additional points. Here are a few directions to follow:

How to roll out the system?

To wrap up, we summarize a list of the Dos and Don’ts.

Dos

Don’ts

Time allocation on each step

System design interview questions are usually very broad, and 45 minutes or an hour is not enough to cover the entire design. Time management is essential. How much time should you spend on each step? The following is a very rough guide on distributing your time in a 45- minute interview session. Please remember this is a rough estimate, and the actual time distribution depends on the scope of the problem and the requirements from the interviewer.

CHAPTER 4: DESIGN A RATE LIMITER

In a network system, a rate limiter is used to control the rate of traffic sent by a client or a service. In the HTTP world, a rate limiter limits the number of client requests allowed to be sent over a specified period. If the API request count exceeds the threshold defined by the rate limiter, all the excess calls are blocked. Here are a few examples:

In this chapter, you are asked to design a rate limiter. Before starting the design, we first look at the benefits of using an API rate limiter:

Step 1 - Understand the problem and establish design scope

Rate limiting can be implemented using different algorithms, each with its pros and cons. The interactions between an interviewer and a candidate help to clarify the type of rate limiters we are trying to build.

Here is a summary of the requirements for the system:

Step 2 - Propose high-level design and get buy-in

Let us keep things simple and use a basic client and server model for communication.

Where to put the rate limiter?

Intuitively, you can implement a rate limiter at either the client or server-side.

server-side

Besides the client and server-side implementations, there is an alternative way. Instead of putting a rate limiter at the API servers, we create a rate limiter middleware, which throttles requests to your APIs as shown in Figure 4-2.

middleware

Let us use an example in Figure 4-3 to illustrate how rate limiting works in this design.

Assume our API allows 2 requests per second, and a client sends 3 requests to the server within a second. The first two requests are routed to API servers. However, the rate limiter middleware throttles the third request and returns a HTTP status code 429. The HTTP 429 response status code indicates a user has sent too many requests.

rate-limiting

Cloud microservices [4] have become widely popular and rate limiting is usually implemented within a component called API gateway. API gateway is a fully managed service that supports rate limiting, SSL termination, authentication, IP whitelisting, servicing static content, etc. For now, we only need to know that the API gateway is a middleware that supports rate limiting.

While designing a rate limiter, an important question to ask ourselves is: where should the rater limiter be implemented, on the server-side or in a gateway? There is no absolute answer.

It depends on your company’s current technology stack, engineering resources, priorities, goals, etc. Here are a few general guidelines:

Algorithms for rate limiting

Rate limiting can be implemented using different algorithms, and each of them has distinct pros and cons. Even though this chapter does not focus on algorithms, understanding them at high-level helps to choose the right algorithm or combination of algorithms to fit our use cases. Here is a list of popular algorithms:

Token bucket algorithm

The token bucket algorithm is widely used for rate limiting. It is simple, well understood and commonly used by internet companies. Both Amazon [5] and Stripe 6. use this algorithm to throttle their API requests.

The token bucket algorithm work as follows:

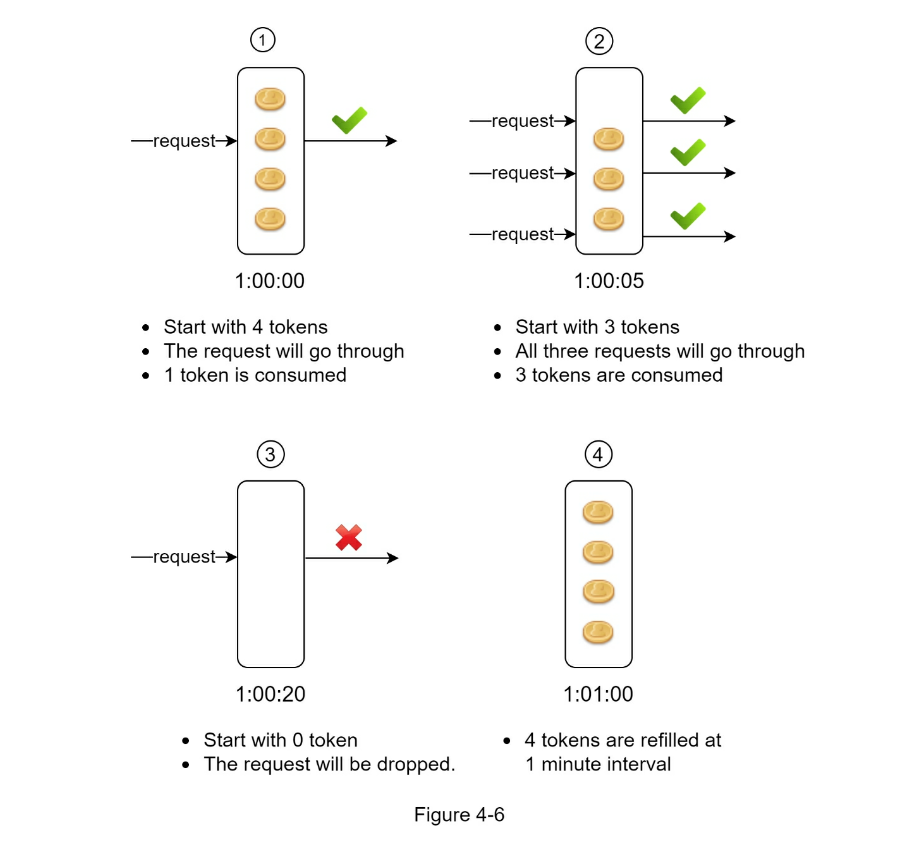

Figure 4-6 illustrates how token consumption, refill, and rate limiting logic work. In this example, the token bucket size is 4, and the refill rate is 4 per 1 minute.

The token bucket algorithm takes two parameters:

How many buckets do we need? This varies, and it depends on the rate-limiting rules. Here are a few examples.

Pros:

Cons:

Leaking bucket algorithm

The leaking bucket algorithm is similar to the token bucket except that requests are processed at a fixed rate. It is usually implemented with a first-in-first-out (FIFO) queue. The algorithm works as follows:

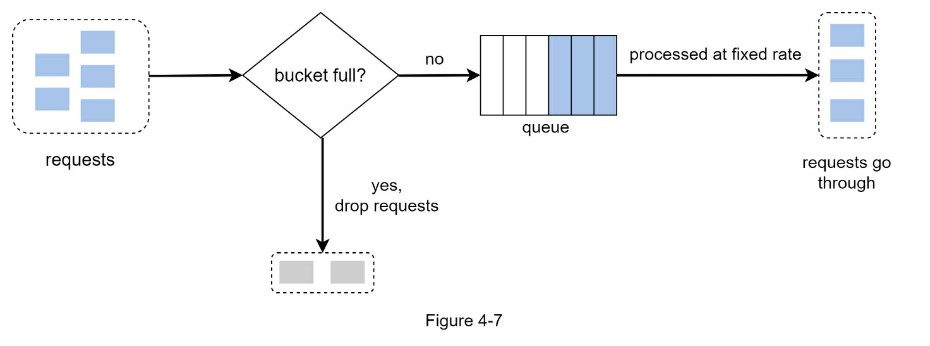

Figure 4-7 explains how the algorithm works.

Leaking bucket algorithm takes the following two parameters:

Shopify, an ecommerce company, uses leaky buckets for rate-limiting [7].

Pros:

Cons:

Fixed window counter algorithm

Fixed window counter algorithm works as follows:

Let us use a concrete example to see how it works. In Figure 4-8, the time unit is 1 second and the system allows a maximum of 3 requests per second. In each second window, if more than 3 requests are received, extra requests are dropped as shown in Figure 4-8.

A major problem with this algorithm is that a burst of traffic at the edges of time windows could cause more requests than allowed quota to go through.

Consider the following case:

In Figure 4-9, the system allows a maximum of 5 requests per minute, and the available quota resets at the human-friendly round minute. As seen, there are five requests between 2:00:00 and 2:01:00 and five more requests between 2:01:00 and 2:02:00. For the one-minute window between 2:00:30 and 2:01:30, 10 requests go through. That is twice as many as allowed requests.

Pros:

Cons:

Sliding window log algorithm

As discussed previously, the fixed window counter algorithm has a major issue: it allows more requests to go through at the edges of a window. The sliding window log algorithm fixes the issue. It works as follows:

Otherwise, it is rejected.

We explain the algorithm with an example as revealed in Figure 4-10.

In this example, the rate limiter allows 2 requests per minute. Usually, Linux timestamps are stored in the log. However, human-readable representation of time is used in our example for better readability.

Pros:

Cons:

Sliding window counter algorithm

The sliding window counter algorithm is a hybrid approach that combines the fixed window counter and sliding window log. The algorithm can be implemented by two different approaches. We will explain one implementation in this section and provide reference for the other implementation at the end of the section.

Figure 4-11 illustrates how this algorithm works.

Assume the rate limiter allows a maximum of 7 requests per minute, and there are 5 requests in the previous minute and 3 in the current minute. For a new request that arrives at a 30% position in the current minute, the number of requests in the rolling window is calculated using the following formula:

Since the rate limiter allows a maximum of 7 requests per minute, the current request can go through. However, the limit will be reached after receiving one more request.

Due to the space limitation, we will not discuss the other implementation here. Interested readers should refer to the reference material [9]. This algorithm is not perfect. It has pros and cons.

Pros

Cons

High-level architecture

The basic idea of rate limiting algorithms is simple. At the high-level, we need a counter to keep track of how many requests are sent from the same user, IP address, etc. If the counter is larger than the limit, the request is disallowed.

Where shall we store counters? Using the database is not a good idea due to slowness of disk access. In-memory cache is chosen because it is fast and supports time-based expiration strategy. For instance, Redis [11] is a popular option to implement rate limiting. It is an inmemory store that offers two commands: INCR and EXPIRE.

Figure 4-12 shows the high-level architecture for rate limiting, and this works as follows:

Step 3 - Design deep dive

The high-level design in Figure 4-12 does not answer the following questions:

In this section, we will first answer the questions regarding rate limiting rules and then go over the strategies to handle rate-limited requests. Finally, we will discuss rate limiting in distributed environment, a detailed design, performance optimization and monitoring.

Rate limiting rules

Lyft open-sourced their rate-limiting component [12]. We will peek inside of the component and look at some examples of rate limiting rules:

domain: messaging
descriptors:
- key: message_type

Value: marketing
rate_limit:
unit: day
requests_per_unit: 5

In the above example, the system is configured to allow a maximum of 5 marketing messages per day. Here is another example:

domain: auth
descriptors:
- key: auth_type

Value: login
rate_limit:
unit: minute
requests_per_unit: 5

This rule shows that clients are not allowed to login more than 5 times in 1 minute. Rules are generally written in configuration files and saved on disk.

Exceeding the rate limit

In case a request is rate limited, APIs return a HTTP response code 429 (too many requests) to the client. Depending on the use cases, we may enqueue the rate-limited requests to be processed later. For example, if some orders are rate limited due to system overload, we may keep those orders to be processed later.

Rate limiter headers

How does a client know whether it is being throttled? And how does a client know the number of allowed remaining requests before being throttled? The answer lies in HTTP response headers. The rate limiter returns the following HTTP headers to clients:

When a user has sent too many requests, a 429 too many requests error and X-Ratelimit-Retry-After header are returned to the client.

Detailed design

Figure 4-13 presents a detailed design of the system.

Rate limiter in a distributed environment

Building a rate limiter that works in a single server environment is not difficult. However, scaling the system to support multiple servers and concurrent threads is a different story.

There are two challenges:

Race condition

As discussed earlier, rate limiter works as follows at the high-level:

Race conditions can happen in a highly concurrent environment as shown in Figure 4-14.

Assume the counter value in Redis is 3. If two requests concurrently read the counter value before either of them writes the value back, each will increment the counter by one and write it back without checking the other thread. Both requests (threads) believe they have the correct counter value 4. However, the correct counter value should be 5.

Locks are the most obvious solution for solving race condition. However, locks will significantly slow down the system. Two strategies are commonly used to solve the problem:

Lua script [13] and sorted sets data structure in Redis [8]. For readers interested in these strategies, refer to the corresponding reference materials 8. [13].

Synchronization issue

Synchronization is another important factor to consider in a distributed environment. To support millions of users, one rate limiter server might not be enough to handle the traffic.

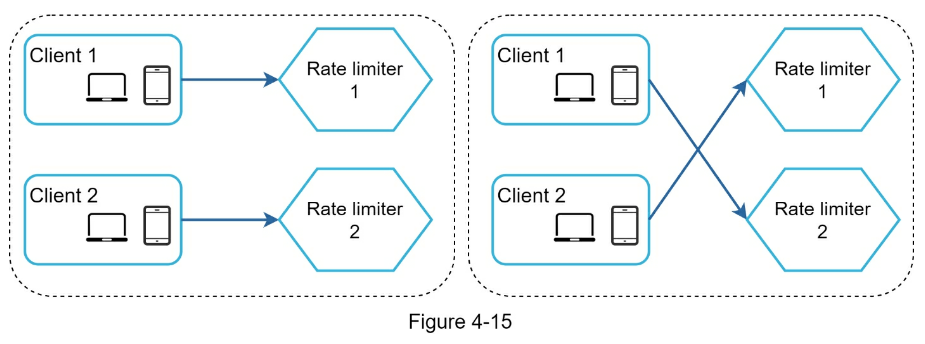

When multiple rate limiter servers are used, synchronization is required. For example, on the left side of Figure 4-15, client 1 sends requests to rate limiter 1, and client 2 sends requests to rate limiter 2. As the web tier is stateless, clients can send requests to a different rate limiter as shown on the right side of Figure 4-15. If no synchronization happens, rate limiter 1 does not contain any data about client 2. Thus, the rate limiter cannot work properly.

One possible solution is to use sticky sessions that allow a client to send traffic to the same rate limiter. This solution is not advisable because it is neither scalable nor flexible. A better approach is to use centralized data stores like Redis. The design is shown in Figure 4-16.

Performance optimization

Performance optimization is a common topic in system design interviews. We will cover two areas to improve.

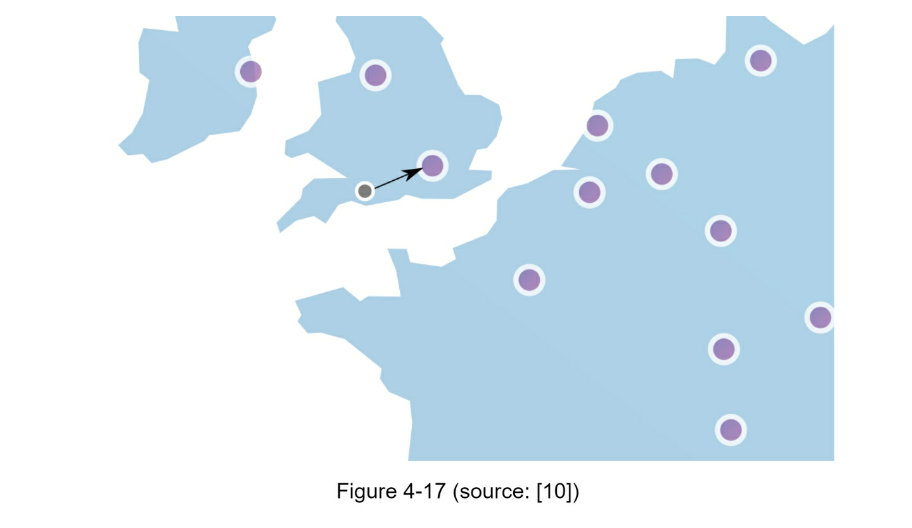

First, multi-data center setup is crucial for a rate limiter because latency is high for users located far away from the data center. Most cloud service providers build many edge server locations around the world. For example, as of 5/20 2020, Cloudflare has 194 geographically distributed edge servers [14]. Traffic is automatically routed to the closest edge server to reduce latency.

Second, synchronize data with an eventual consistency model. If you are unclear about the eventual consistency model, refer to the “Consistency” section in “Chapter 6: Design a Keyvalue Store.”

Monitoring

After the rate limiter is put in place, it is important to gather analytics data to check whether the rate limiter is effective. Primarily, we want to make sure:

For example, if rate limiting rules are too strict, many valid requests are dropped. In this case, we want to relax the rules a little bit. In another example, we notice our rate limiter becomes ineffective when there is a sudden increase in traffic like flash sales. In this scenario, we may replace the algorithm to support burst traffic. Token bucket is a good fit here.

Step 4 - Wrap up

In this chapter, we discussed different algorithms of rate limiting and their pros/cons.

Algorithms discussed include:

Then, we discussed the system architecture, rate limiter in a distributed environment, performance optimization and monitoring. Similar to any system design interview questions, there are additional talking points you can mention if time allows:

Congratulations on getting this far! Now give yourself a pat on the back. Good job!

Reference Materials

  1. Rate-limiting strategies and techniques: https://cloud.google.com/solutions/rate-limitingstrategies-techniques
  2. Twitter rate limits: https://developer.twitter.com/en/docs/basics/rate-limits
  3. Google docs usage limits: https://developers.google.com/docs/api/limits
  4. IBM microservices: https://www.ibm.com/cloud/learn/microservices
  5. Throttle API requests for better throughput: https://docs.aws.amazon.com/apigateway/latest/developerguide/api-gateway-requestthrottling.html
  6. Stripe rate limiters: https://stripe.com/blog/rate-limiters
  7. Shopify REST Admin API rate limits: https://help.shopify.com/en/api/reference/restadmin-api-rate-limits
  8. Better Rate Limiting With Redis Sorted Sets: https://engineering.classdojo.com/blog/2015/02/06/rolling-rate-limiter/
  9. System Design — Rate limiter and Data modelling: https://medium.com/@saisandeepmopuri/system-design-rate-limiter-and-data-modelling9304b0d18250
  10. How we built rate limiting capable of scaling to millions of domains: https://blog.cloudflare.com/counting-things-a-lot-of-different-things/
  11. Redis website: https://redis.io/
  12. Lyft rate limiting: https://github.com/lyft/ratelimit
  13. Scaling your API with rate limiters: https://gist.github.com/ptarjan/e38f45f2dfe601419ca3af937fff574d#request-rate-limiter
  14. What is edge computing: https://www.cloudflare.com/learning/serverless/glossary/whatis-edge-computing/
  15. Rate Limit Requests with Iptables: https://blog.programster.org/rate-limit-requests-withiptables
  16. OSI model: https://en.wikipedia.org/wiki/OSI_model#Layer_architecture

CHAPTER 5: DESIGN CONSISTENT HASHING

To achieve horizontal scaling, it is important to distribute requests/data efficiently and evenly across servers. Consistent hashing is a commonly used technique to achieve this goal. But first, let us take an in-depth look at the problem.

The rehashing problem

If you have n cache servers, a common way to balance the load is to use the following hash method: serverIndex = hash(key) % N, where N is the size of the server pool.

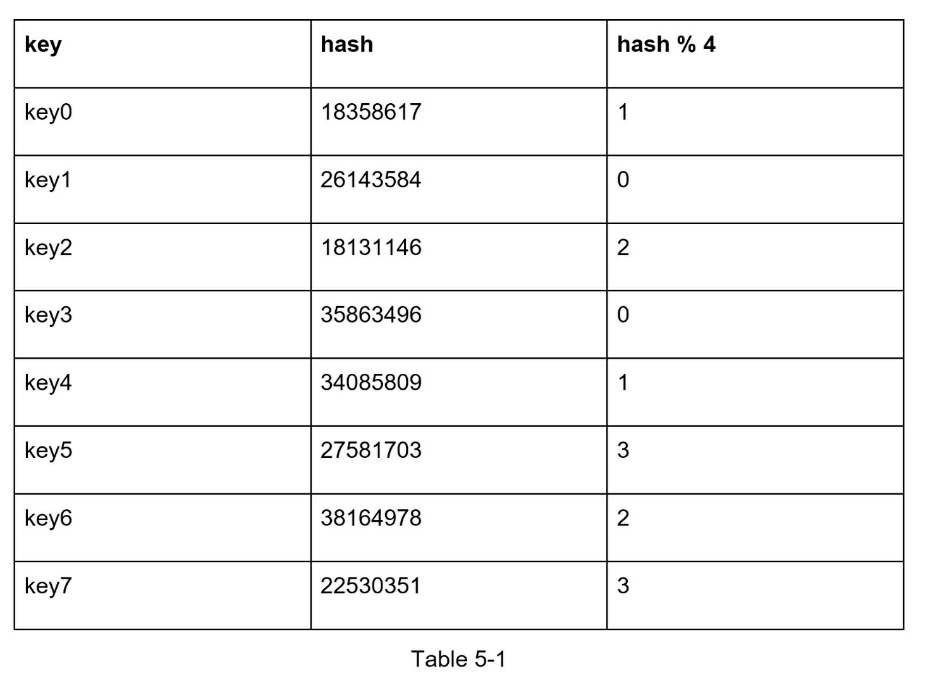

Let us use an example to illustrate how it works. As shown in Table 5-1, we have 4 servers and 8 string keys with their hashes.

To fetch the server where a key is stored, we perform the modular operation f(key) % 4. For instance, hash(key0) % 4 = 1 means a client must contact server 1 to fetch the cached data.

This approach works well when the size of the server pool is fixed, and the data distribution is even. However, problems arise when new servers are added, or existing servers are removed. For example, if server 1 goes offline, the size of the server pool becomes 3. Using the same hash function, we get the same hash value for a key. But applying modular operation gives us different server indexes because the number of servers is reduced by 1. We get the results as shown in Table 5-2 by applying hash % 3:

Figure 5-2 shows the new distribution of keys based on Table 5-2.

As shown in Figure 5-2, most keys are redistributed, not just the ones originally stored in the offline server (server 1). This means that when server 1 goes offline, most cache clients will connect to the wrong servers to fetch data. This causes a storm of cache misses. Consistent hashing is an effective technique to mitigate this problem.

Consistent hashing

Quoted from Wikipedia: "Consistent hashing is a special kind of hashing such that when a hash table is re-sized and consistent hashing is used, only k/n keys need to be remapped on average, where k is the number of keys, and n is the number of slots. In contrast, in most traditional hash tables, a change in the number of array slots causes nearly all keys to be remapped [1]”.

Hash space and hash ring

Now we understand the definition of consistent hashing, let us find out how it works.

Assume SHA-1 is used as the hash function f, and the output range of the hash function is: x0, x1, x2, x3, …, xn. In cryptography, SHA-1’s hash space goes from 0 to 2^160 - 1. That means x0 corresponds to 0, xn corresponds to 2^160 – 1, and all the other hash values in the middle fall between 0 and 2^160 - 1.

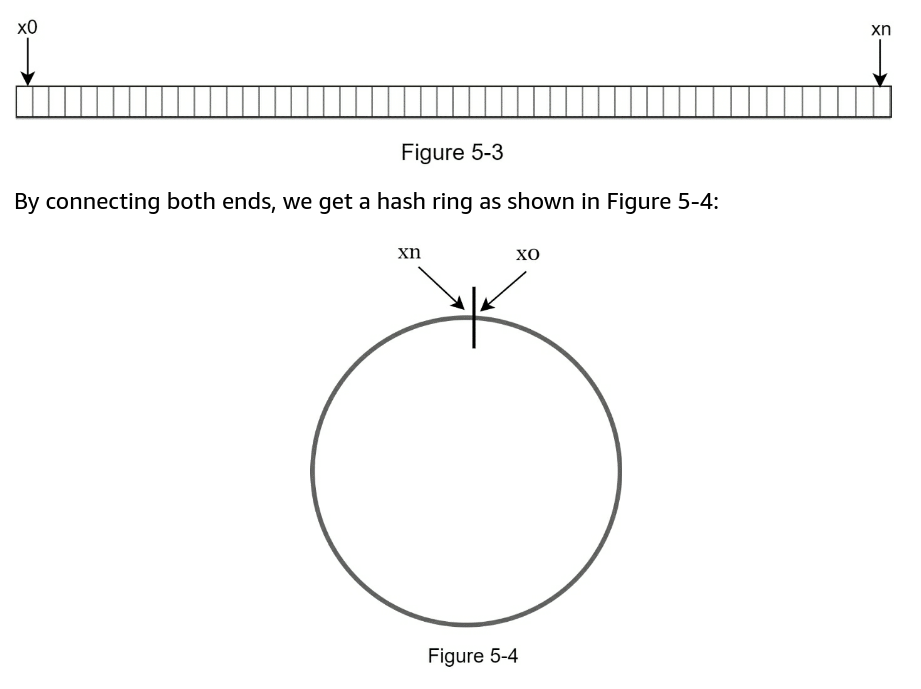

Figure 5-3 shows the hash space. By collecting both ends, we get a hash ring as shown in Figure 5-4:

Hash servers

Using the same hash function f, we map servers based on server IP or name onto the ring.

Figure 5-5 shows that 4 servers are mapped on the hash ring.

Hash keys

One thing worth mentioning is that hash function used here is different from the one in “the rehashing problem,” and there is no modular operation. As shown in Figure 5-6, 4 cache keys (key0, key1, key2, and key3) are hashed onto the hash ring

Server lookup

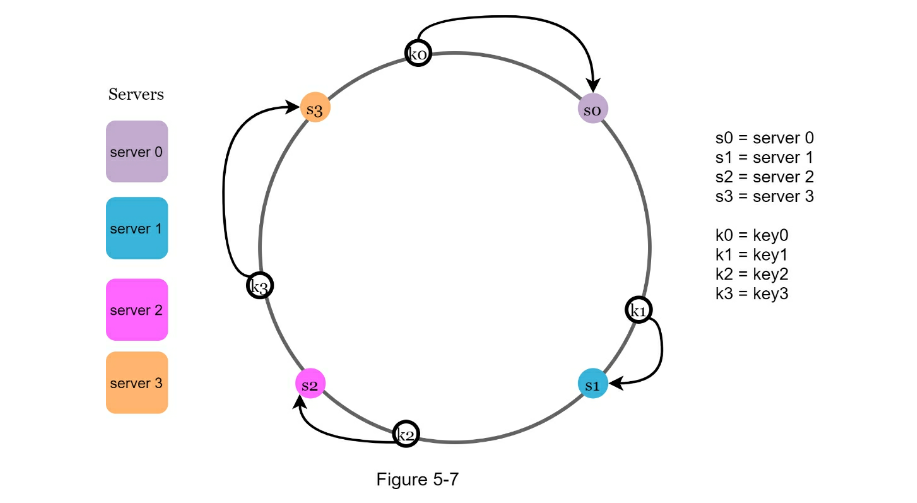

To determine which server a key is stored on, we go clockwise from the key position on the ring until a server is found. Figure 5-7 explains this process. Going clockwise, key0 is stored on server 0; key1 is stored on server 1; key2 is stored on server 2 and key3 is stored on server 3.

Add a server

Using the logic described above, adding a new server will only require redistribution of a fraction of keys.

In Figure 5-8, after a new server 4 is added, only key0 needs to be redistributed. k1, k2, and k3 remain on the same servers. Let us take a close look at the logic. Before server 4 is added, key0 is stored on server 0. Now, key0 will be stored on server 4 because server 4 is the first server it encounters by going clockwise from key0’s position on the ring. The other keys are not redistributed based on consistent hashing algorithm.

Remove a server

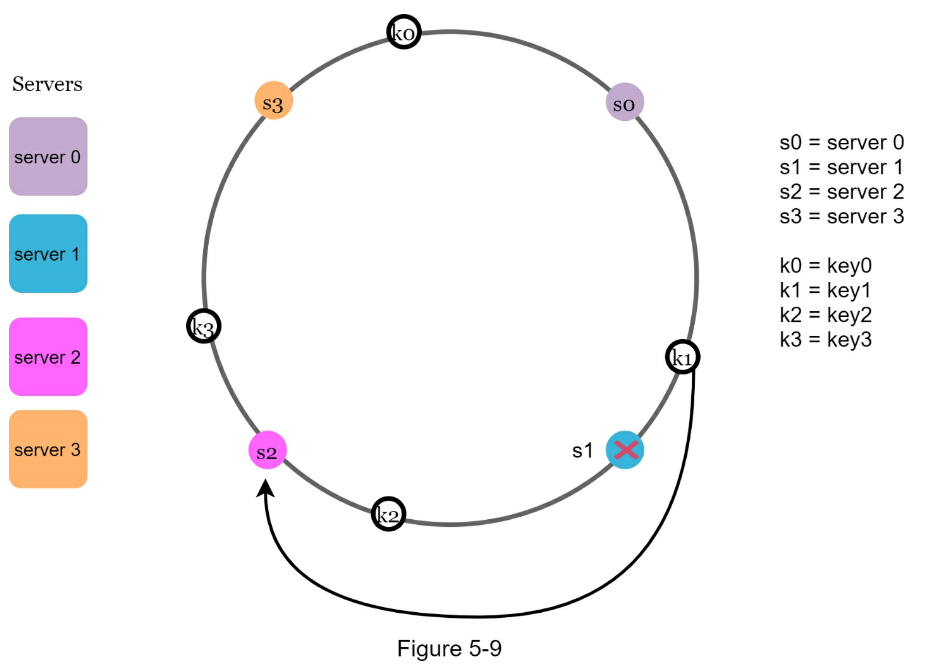

When a server is removed, only a small fraction of keys require redistribution with consistent hashing. In Figure 5-9, when server 1 is removed, only key1 must be remapped to server 2. The rest of the keys are unaffected.

Two issues in the basic approach

The consistent hashing algorithm was introduced by Karger et al. at MIT [1]. The basic steps are:

Two problems are identified with this approach. First, it is impossible to keep the same size of partitions on the ring for all servers considering a server can be added or removed. A partition is the hash space between adjacent servers. It is possible that the size of the partitions on the ring assigned to each server is very small or fairly large. In Figure 5-10, if s1 is removed, s2’s partition (highlighted with the bidirectional arrows) is twice as large as s0 and s3’s partition.

Second, it is possible to have a non-uniform key distribution on the ring. For instance, if servers are mapped to positions listed in Figure 5-11, most of the keys are stored on server 2.

However, server 1 and server 3 have no data.

A technique called virtual nodes or replicas is used to solve these problems.

Virtual nodes

A virtual node refers to the real node, and each server is represented by multiple virtual nodes on the ring. In Figure 5-12, both server 0 and server 1 have 3 virtual nodes. The 3 is arbitrarily chosen; and in real-world systems, the number of virtual nodes is much larger.

Instead of using s0, we have s0_0, s0_1, and s0_2 to represent server 0 on the ring. Similarly, s1_0, s1_1, and s1_2 represent server 1 on the ring. With virtual nodes, each server is responsible for multiple partitions. Partitions (edges) with label s0 are managed by server 0.

On the other hand, partitions with label s1 are managed by server 1.

To find which server a key is stored on, we go clockwise from the key’s location and find the first virtual node encountered on the ring. In Figure 5-13, to find out which server k0 is stored on, we go clockwise from k0’s location and find virtual node s1_1, which refers to server 1.

As the number of virtual nodes increases, the distribution of keys becomes more balanced.

This is because the standard deviation gets smaller with more virtual nodes, leading to balanced data distribution. Standard deviation measures how data are spread out. The outcome of an experiment carried out by online research [2] shows that with one or two hundred virtual nodes, the standard deviation is between 5% (200 virtual nodes) and 10% (100 virtual nodes) of the mean. The standard deviation will be smaller when we increase the number of virtual nodes. However, more spaces are needed to store data about virtual nodes.

This is a tradeoff, and we can tune the number of virtual nodes to fit our system requirements.

Find affected keys

When a server is added or removed, a fraction of data needs to be redistributed. How can we find the affected range to redistribute the keys?

In Figure 5-14, server 4 is added onto the ring. The affected range starts from s4 (newly added node) and moves anticlockwise around the ring until a server is found (s3). Thus, keys located between s3 and s4 need to be redistributed to s4.

When a server (s1) is removed as shown in Figure 5-15, the affected range starts from s1 (removed node) and moves anticlockwise around the ring until a server is found (s0). Thus, keys located between s0 and s1 must be redistributed to s2.

Wrap up

In this chapter, we had an in-depth discussion about consistent hashing, including why it is needed and how it works. The benefits of consistent hashing include:

Consistent hashing is widely used in real-world systems, including some notable ones:

Congratulations on getting this far! Now give yourself a pat on the back. Good job!

Reference Materials

CHAPTER 6: DESIGN A KEY-VALUE STORE

A key-value store, also referred to as a key-value database, is a non-relational database. Each unique identifier is stored as a key with its associated value. This data pairing is known as a “key-value” pair.

In a key-value pair, the key must be unique, and the value associated with the key can be accessed through the key. Keys can be plain text or hashed values. For performance reasons, a short key works better. What do keys look like? Here are a few examples:

The value in a key-value pair can be strings, lists, objects, etc. The value is usually treated as an opaque object in key-value stores, such as Amazon dynamo [1], Memcached [2], Redis [3], etc.

Here is a data snippet in a key-value store:

key value
145 john
147 bob
525 julia

In this chapter, you are asked to design a key-value store that supports the following operations:

Understand the problem and establish design scope

There is no perfect design. Each design achieves a specific balance regarding the tradeoffs of the read, write, and memory usage. Another tradeoff has to be made was between consistency and availability. In this chapter, we design a key-value store that comprises of the following characteristics:

Single server key-value store

Developing a key-value store that resides in a single server is easy. An intuitive approach is to store key-value pairs in a hash table, which keeps everything in memory. Even though memory access is fast, fitting everything in memory may be impossible due to the space constraint. Two optimizations can be done to fit more data in a single server:

Even with these optimizations, a single server can reach its capacity very quickly. A distributed key-value store is required to support big data.

Distributed key-value store

A distributed key-value store is also called a distributed hash table, which distributes keyvalue pairs across many servers. When designing a distributed system, it is important to understand CAP (Consistency, Availability, Partition Tolerance) theorem.

CAP theorem

CAP theorem states it is impossible for a distributed system to simultaneously provide more than two of these three guarantees:

  1. consistency,
  2. availability, and
  3. partition tolerance.

Consistency: consistency means all clients see the same data at the same time no matter which node they connect to.

Availability: availability means any client which requests data gets a response even if some of the nodes are down.

Partition Tolerance: a partition indicates a communication break between two nodes. Partition tolerance means the system continues to operate despite network partitions.

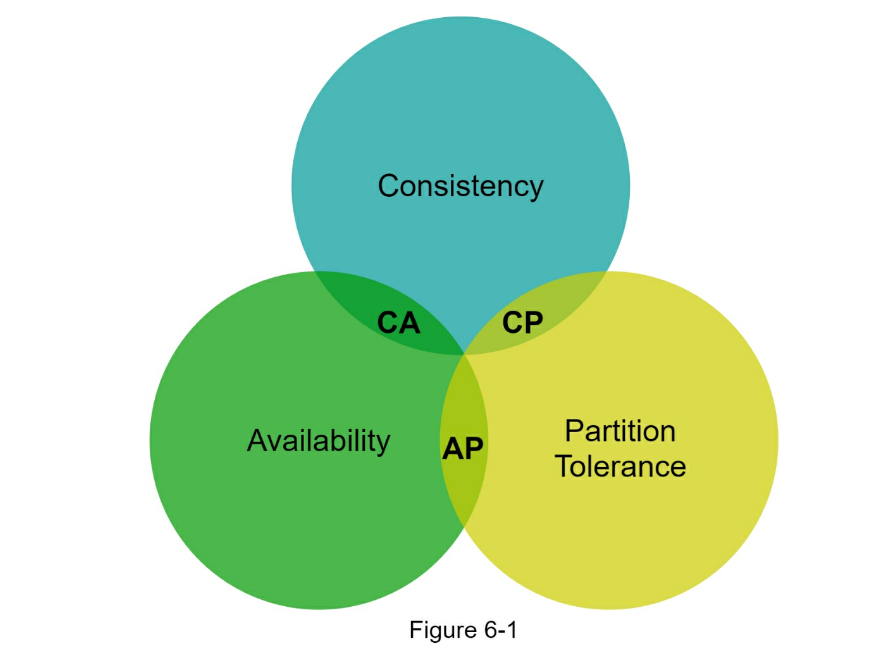

CAP theorem states that one of the three properties must be sacrificed to support 2 of the 3 properties as shown in Figure 6-1.

Nowadays, key-value stores are classified based on the two CAP characteristics they support:

What you read above is mostly the definition part. To make it easier to understand, let us take a look at some concrete examples. In distributed systems, data is usually replicated multiple times. Assume data are replicated on three replica nodes, n1, n2 and n3 as shown in Figure 6- 2.

Ideal situation

In the ideal world, network partition never occurs. Data written to n1 is automatically replicated to n2 and n3. Both consistency and availability are achieved.

Real-world distributed systems

In a distributed system, partitions cannot be avoided, and when a partition occurs, we must choose between consistency and availability. In Figure 6-3, n3 goes down and cannot communicate with n1 and n2. If clients write data to n1 or n2, data cannot be propagated to n3. If data is written to n3 but not propagated to n1 and n2 yet, n1 and n2 would have stale data.

If we choose consistency over availability (CP system), we must block all write operations to n1 and n2 to avoid data inconsistency among these three servers, which makes the system unavailable. Bank systems usually have extremely high consistent requirements. For example, it is crucial for a bank system to display the most up-to-date balance info. If inconsistency occurs due to a network partition, the bank system returns an error before the inconsistency is resolved.

However, if we choose availability over consistency (AP system), the system keeps accepting reads, even though it might return stale data. For writes, n1 and n2 will keep accepting writes, and data will be synced to n3 when the network partition is resolved.

Choosing the right CAP guarantees that fit your use case is an important step in building a distributed key-value store. You can discuss this with your interviewer and design the system accordingly.

System components

In this section, we will discuss the following core components and techniques used to build a key-value store:

The content below is largely based on three popular key-value store systems: Dynamo [4], Cassandra [5], and BigTable [6].

Data partition

For large applications, it is infeasible to fit the complete data set in a single server. The simplest way to accomplish this is to split the data into smaller partitions and store them in multiple servers. There are two challenges while partitioning the data:

Consistent hashing discussed in Chapter 5 is a great technique to solve these problems. Let us revisit how consistent hashing works at a high-level.

Using consistent hashing to partition data has the following advantages:

Data replication

To achieve high availability and reliability, data must be replicated asynchronously over N servers, where N is a configurable parameter. These N servers are chosen using the following logic: after a key is mapped to a position on the hash ring, walk clockwise from that position and choose the first N servers on the ring to store data copies. In Figure 6-5 (N = 3), key0 is replicated at s1, s2, and s3.

With virtual nodes, the first N nodes on the ring may be owned by fewer than N physical servers. To avoid this issue, we only choose unique servers while performing the clockwise walk logic.

Nodes in the same data center often fail at the same time due to power outages, network issues, natural disasters, etc. For better reliability, replicas are placed in distinct data centers, and data centers are connected through high-speed networks.

Consistency

Since data is replicated at multiple nodes, it must be synchronized across replicas. Quorum consensus can guarantee consistency for both read and write operations. Let us establish a few definitions first.

Consider the following example shown in Figure 6-6 with N = 3.

W = 1 does not mean data is written on one server. For instance, with the configuration in Figure 6-6, data is replicated at s0, s1, and s2. W = 1 means that the coordinator must receive at least one acknowledgment before the write operation is considered as successful. For instance, if we get an acknowledgment from s1, we no longer need to wait for acknowledgements from s0 and s2. A coordinator acts as a proxy between the client and the nodes.

The configuration of W, R and N is a typical tradeoff between latency and consistency.

If W = 1 or R = 1, an operation is returned quickly because a coordinator only needs to wait for a response from any of the replicas.

If W or R > 1, the system offers better consistency; however, the query will be slower because the coordinator must wait for the response from the slowest replica.

If W + R > N, strong consistency is guaranteed because there must be at least one overlapping node that has the latest data to ensure consistency.

How to configure N, W, and R to fit our use cases? Here are some of the possible setups:

Depending on the requirement, we can tune the values of W, R, N to achieve the desired level of consistency.

Consistency models

Consistency model is other important factor to consider when designing a key-value store. A consistency model defines the degree of data consistency, and a wide spectrum of possible consistency models exist:

Strong consistency is usually achieved by forcing a replica not to accept new reads/writes until every replica has agreed on current write. This approach is not ideal for highly available systems because it could block new operations.

Dynamo and Cassandra adopt eventual consistency, which is our recommended consistency model for our key-value store.

From concurrent writes, eventual consistency allows inconsistent values to enter the system and force the client to read the values to reconcile.

The next section explains how reconciliation works with versioning.

Inconsistency resolution: versioning

Replication gives high availability but causes inconsistencies among replicas. Versioning and vector locks are used to solve inconsistency problems. Versioning means treating each data modification as a new immutable version of data. Before we talk about versioning, let us use an example to explain how inconsistency happens:

As shown in Figure 6-7, both replica nodes n1 and n2 have the same value. Let us call this value the original value. Server 1 and server 2 get the same value for get(“name”) operation.

Next, server 1 changes the name to “johnSanFrancisco”, and server 2 changes the name to “johnNewYork” as shown in Figure 6-8. These two changes are performed simultaneously.

Now, we have conflicting values, called versions v1 and v2.

In this example, the original value could be ignored because the modifications were based on it. However, there is no clear way to resolve the conflict of the last two versions. To resolve this issue, we need a versioning system that can detect conflicts and reconcile conflicts.

A vector clock is a common technique to solve this problem. Let us examine how vector clocks work.

A vector clock is a [server, version] pair associated with a data item. It can be used to check if one version precedes, succeeds, or in conflict with others.

Assume a vector clock is represented by D([S1, v1], [S2, v2], …, [Sn, vn]), where D is a data item, v1 is a version counter, and s1 is a server number, etc. If data item D is written to server

Si, the system must perform one of the following tasks.

The above abstract logic is explained with a concrete example as shown in Figure 6-9.

  1. A client writes a data item D1 to the system, and the write is handled by server Sx, which now has the vector clock D1[(Sx, 1)].
  2. Another client reads the latest D1, updates it to D2, and writes it back. D2 descends from D1 so it overwrites D1. Assume the write is handled by the same server Sx, which now has vector clock D2([Sx, 2]).
  3. Another client reads the latest D2, updates it to D3, and writes it back. Assume the write is handled by server Sy, which now has vector clock D3([Sx, 2], [Sy, 1])).
  4. Another client reads the latest D2, updates it to D4, and writes it back. Assume the write is handled by server Sz, which now has D4([Sx, 2], [Sz, 1])).
  5. When another client reads D3 and D4, it discovers a conflict, which is caused by data item D2 being modified by both Sy and Sz. The conflict is resolved by the client and updated data is sent to the server. Assume the write is handled by Sx, which now has

D5([Sx, 3], [Sy, 1], [Sz, 1]). We will explain how to detect conflict shortly.

Using vector clocks, it is easy to tell that a version X is an ancestor (i.e. no conflict) of version Y if the version counters for each participant in the vector clock of Y is greater than or equal to the ones in version X.

For example, the vector clock D([s0, 1], [s1, 1])] is an ancestor of D([s0, 1], [s1, 2]). Therefore, no conflict is recorded.

Similarly, you can tell that a version X is a sibling (i.e., a conflict exists) of Y if there is any participant in Y's vector clock who has a counter that is less than its corresponding counter in X.

For example, the following two vector clocks indicate there is a conflict: D([s0, 1], [s1, 2]) and D([s0, 2], [s1, 1]).

Even though vector clocks can resolve conflicts, there are two notable downsides. First, vector clocks add complexity to the client because it needs to implement conflict resolution logic.

Second, the [server: version] pairs in the vector clock could grow rapidly. To fix this problem, we set a threshold for the length, and if it exceeds the limit, the oldest pairs are removed. This can lead to inefficiencies in reconciliation because the descendant relationship cannot be determined accurately. However, based on Dynamo paper [4], Amazon has not yet encountered this problem in production; therefore, it is probably an acceptable solution for most companies.

Handling failures

As with any large system at scale, failures are not only inevitable but common. Handling failure scenarios is very important. In this section, we first introduce techniques to detect failures. Then, we go over common failure resolution strategies.

Failure detection

In a distributed system, it is insufficient to believe that a server is down because another server says so. Usually, it requires at least two independent sources of information to mark a server down.

As shown in Figure 6-10, all-to-all multicasting is a straightforward solution. However, this is inefficient when many servers are in the system.

A better solution is to use decentralized failure detection methods like gossip protocol.

Gossip protocol works as follows:

As shown in Figure 6-11:

Handling temporary failures

After failures have been detected through the gossip protocol, the system needs to deploy certain mechanisms to ensure availability. In the strict quorum approach, read and write operations could be blocked as illustrated in the quorum consensus section.

A technique called “sloppy quorum” [4] is used to improve availability. Instead of enforcing the quorum requirement, the system chooses the first W healthy servers for writes and first R healthy servers for reads on the hash ring. Offline servers are ignored.

If a server is unavailable due to network or server failures, another server will process requests temporarily. When the down server is up, changes will be pushed back to achieve data consistency. This process is called hinted handoff. Since s2 is unavailable in Figure 6- 12, reads and writes will be handled by s3 temporarily. When s2 comes back online, s3 will hand the data back to s2.

Handling permanent failures

Hinted handoff is used to handle temporary failures. What if a replica is permanently unavailable? To handle such a situation, we implement an anti-entropy protocol to keep replicas in sync.

Anti-entropy involves comparing each piece of data on replicas and updating each replica to the newest version. A Merkle tree is used for inconsistency detection and minimizing the amount of data transferred.

Quoted from Wikipedia [7]: "A hash tree or Merkle tree is a tree in which every non-leaf node is labeled with the hash of the labels or values (in case of leaves) of its child nodes."

Hash trees allow efficient and secure verification of the contents of large data structures”.

Assuming key space is from 1 to 12, the following steps show how to build a Merkle tree.

Highlighted boxes indicate inconsistency.

Step 1: Divide key space into buckets (4 in our example) as shown in Figure

6-13. A bucket is used as the root level node to maintain a limited depth of the tree.

Step 2: Once the buckets are created, hash each key in a bucket using a uniform

hashing method (Figure 6-14).

Step 3: Create a single hash node per bucket (Figure 6-15).

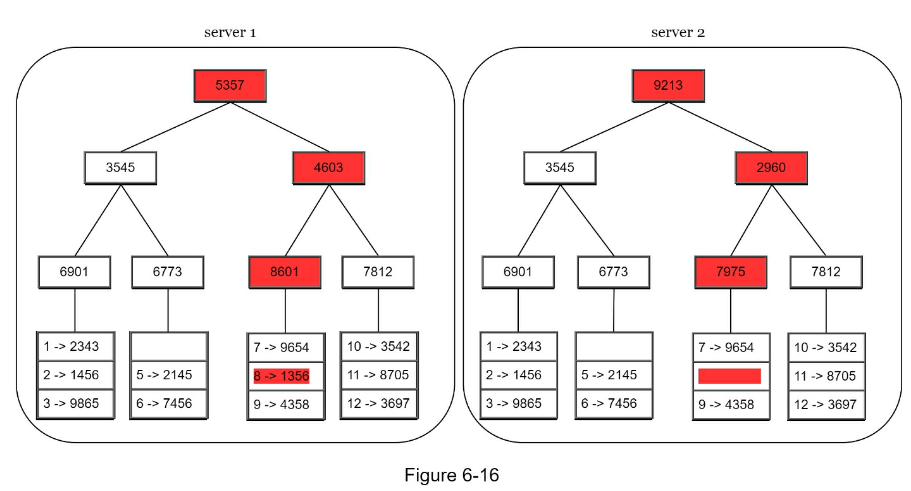

Step 4: Build the tree upwards till root by calculating hashes of children

(Figure 6-16).

To compare two Merkle trees, start by comparing the root hashes. If root hashes match, both servers have the same data. If root hashes disagree, then the left child hashes are compared followed by right child hashes. You can traverse the tree to find which buckets are not synchronized and synchronize those buckets only.

Using Merkle trees, the amount of data needed to be synchronized is proportional to the differences between the two replicas, and not the amount of data they contain. In real-world systems, the bucket size is quite big. For instance, a possible configuration is one million buckets per one billion keys, so each bucket only contains 1000 keys.

Handling data center outage

Data center outage could happen due to power outage, network outage, natural disaster, etc.

To build a system capable of handling data center outage, it is important to replicate data across multiple data centers. Even if a data center is completely offline, users can still access data through the other data centers.

System architecture diagram

Now that we have discussed different technical considerations in designing a key-value store, we can shift our focus on the architecture diagram, shown in Figure 6-17.

Main features of the architecture are listed as follows:

As the design is decentralized, each node performs many tasks as presented in Figure 6-18.

Write path

Figure 6-19 explains what happens after a write request is directed to a specific node. Please note the proposed designs for write/read paths are primary based on the architecture of Cassandra [8].

  1. The write request is persisted on a commit log file.
  2. Data is saved in the memory cache.
  3. When the memory cache is full or reaches a predefined threshold, data is flushed to SSTable [9] on disk.

Note: A sorted-string table (SSTable) is a sorted list of <key, value> pairs. For readers interested in learning more about SStable, refer to the reference material [9].

Read path

After a read request is directed to a specific node, it first checks if data is in the memory cache. If so, the data is returned to the client as shown in Figure 6-20.

If the data is not in memory, it will be retrieved from the disk instead. We need an efficient way to find out which SSTable contains the key.

Bloom filter [10] is commonly used to solve this problem.

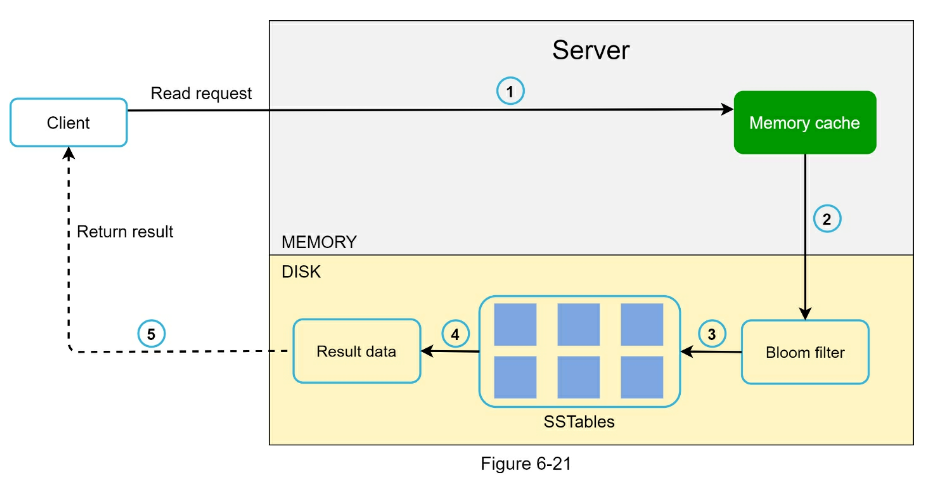

The read path is shown in Figure 6-21 when data is not in memory.

  1. The system first checks if data is in memory. If not, go to step 2.
  2. If data is not in memory, the system checks the bloom filter.
  3. The bloom filter is used to figure out which SSTables might contain the key.
  4. SSTables return the result of the data set.
  5. The result of the data set is returned to the client.

Summary

This chapter covers many concepts and techniques. To refresh your memory, the following table summarizes features and corresponding techniques used for a distributed key-value store.

Goals/Problems Technique
Ability to store big data Use consistent hashing to spread the load across servers
High Availability reads Data replication & multi-data center setup
High Availability write Versioning and conflict resolution with vector locks
Dataset partition consistent hashing
Incremental scalability consistent hashing
Heterogeneity consistent hashing
Tunable consistency quorum consensus
Handling temporary failures sloppy quorum & hinted handoff
Handling permanent failures merkle tree
Handling DC outage X-DC replication

Reference materials

CHAPTER 7: DESIGN A UNIQUE ID GENERATOR IN DISTRIBUTED SYSTEMS

In this chapter, you are asked to design a unique ID generator in distributed systems. Your first thought might be to use a primary key with the auto_increment attribute in a traditional database. However, auto_increment does not work in a distributed environment because a single database server is not large enough and generating unique IDs across multiple databases with minimal delay is challenging.

Here are a few examples of unique IDs:

user_id
1234567890
2345678901
3456789012
4567890123

Step 1 - Understand the problem and establish design scope

Asking clarification questions is the first step to tackle any system design interview question. Here is an example of candidate-interviewer interaction:

Above are some of the sample questions that you can ask your interviewer. It is important to understand the requirements and clarify ambiguities. For this interview question, the requirements are listed as follows:

Step 2 - Propose high-level design and get buy-in

Multiple options can be used to generate unique IDs in distributed systems. The options we considered are:

Let us look at each of them, how they work, and the pros/cons of each option.

Multi-master replication

As shown in Figure 7-2, the first approach is multi-master replication.

This approach uses the databases’ auto_increment feature. Instead of increasing the next ID by 1, we increase it by k, where k is the number of database servers in use. As illustrated in Figure 7-2, next ID to be generated is equal to the previous ID in the same server plus 2. This solves some scalability issues because IDs can scale with the number of database servers.

However, this strategy has some major drawbacks:

UUID

A UUID is another easy way to obtain unique IDs. UUID is a 128-bit number used to identify information in computer systems. UUID has a very low probability of getting collusion.

Quoted from Wikipedia, “after generating 1 billion UUIDs every second for approximately 100 years would the probability of creating a single duplicate reach 50%” [1].

Here is an example of UUID: 09c93e62-50b4-468d-bf8a-c07e1040bfb2. UUIDs can be generated independently without coordination between servers.

In this design, each web server contains an ID generator, and a web server is responsible for generating IDs independently.

Pros:

Cons:

Ticket Server

Ticket servers are another interesting way to generate unique IDs. Flicker developed ticket servers to generate distributed primary keys [2]. It is worth mentioning how the system works.

The idea is to use a centralized auto_increment feature in a single database server (Ticket Server). To learn more about this, refer to flicker’s engineering blog article [2].

Pros:

Cons:

Twitter snowflake approach

Approaches mentioned above give us some ideas about how different ID generation systems work. However, none of them meet our specific requirements; thus, we need another approach. Twitter’s unique ID generation system called “snowflake” 3. is inspiring and can satisfy our requirements.

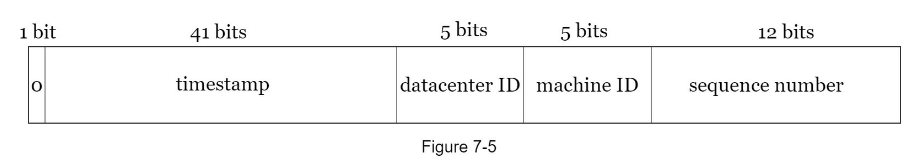

Divide and conquer is our friend. Instead of generating an ID directly, we divide an ID into different sections. Figure 7-5 shows the layout of a 64-bit ID.

Each section is explained below.

Step 3 - Design deep dive

In the high-level design, we discussed various options to design a unique ID generator in distributed systems. We settle on an approach that is based on the Twitter snowflake ID generator. Let us dive deep into the design.

Datacenter IDs and machine IDs are chosen at the startup time, generally fixed once the system is up running. Any changes in datacenter IDs and machine IDs require careful review since an accidental change in those values can lead to ID conflicts. Timestamp and sequence numbers are generated when the ID generator is running.

Timestamp

The most important 41 bits make up the timestamp section. As timestamps grow with time, IDs are sortable by time. Figure 7-7 shows an example of how binary representation is converted to UTC. You can also convert UTC back to binary representation using a similar method.

The maximum timestamp that can be represented in 41 bits is 2 ^ 41 - 1 = 2199023255551 milliseconds (ms), which gives us: ~ 69 years = 2199023255551 ms / 1000 seconds / 365 days / 24 hours/ 3600 seconds. This means the ID generator will work for 69 years and having a custom epoch time close to today’s date delays the overflow time. After 69 years, we will need a new epoch time or adopt other techniques to migrate IDs.

Sequence number

Sequence number is 12 bits, which give us 2 ^ 12 = 4096 combinations. This field is 0 unless more than one ID is generated in a millisecond on the same server. In theory, a machine can support a maximum of 4096 new IDs per millisecond.

Step 4 - Wrap up

In this chapter, we discussed different approaches to design a unique ID generator: multimaster replication, UUID, ticket server, and Twitter snowflake-like unique ID generator. We settle on snowflake as it supports all our use cases and is scalable in a distributed environment.

If there is extra time at the end of the interview, here are a few additional talking points:

Reference materials

CHAPTER 8: DESIGN A URL SHORTENER

In this chapter, we will tackle an interesting and classic system design interview question: designing a URL shortening service like tinyurl.

Step 1 - Understand the problem and establish design scope

System design interview questions are intentionally left open-ended. To design a well-crafted system, it is critical to ask clarification questions.

Here are the basic use cases:

  1. URL shortening: given a long URL => return a much shorter URL
  2. URL redirecting: given a shorter URL => redirect to the original URL
  3. High availability, scalability, and fault tolerance considerations

Back of the envelope estimation

It is important for you to walk through the assumptions and calculations with your interviewer so that both of you are on the same page.

Step 2 - Propose high-level design and get buy-in

In this section, we discuss the API endpoints, URL redirecting, and URL shortening flows.

API Endpoints

API endpoints facilitate the communication between clients and servers. We will design the APIs REST-style. If you are unfamiliar with restful API, you can consult external materials, such as the one in the reference material [1]. A URL shortener primary needs two API endpoints.

  1. URL shortening. To create a new short URL, a client sends a POST request, which contains one parameter: the original long URL. The API looks like this:
POST api/v1/data/shorten
- request parameter: {longUrl: longURLString}
- return shortURL
  1. URL redirecting. To redirect a short URL to the corresponding long URL, a client sends a GET request. The API looks like this:
GET api/v1/shortUrl
- Return longURL for HTTP redirection

URL redirecting

Figure 8-1 shows what happens when you enter a tinyurl onto the browser. Once the server receives a tinyurl request, it changes the short URL to the long URL with 301 redirect.

The detailed communication between clients and servers is shown in Figure 8-2.

One thing worth discussing here is 301 redirect vs 302 redirect.

301 redirect. A 301 redirect shows that the requested URL is “permanently” moved to the long URL. Since it is permanently redirected, the browser caches the response, and subsequent requests for the same URL will not be sent to the URL shortening service.

Instead, requests are redirected to the long URL server directly.

302 redirect. A 302 redirect means that the URL is “temporarily” moved to the long URL, meaning that subsequent requests for the same URL will be sent to the URL shortening service first. Then, they are redirected to the long URL server.

Each redirection method has its pros and cons.

The most intuitive way to implement URL redirecting is to use hash tables. Assuming the hash table stores <shortURL, longURL> pairs, URL redirecting can be implemented by the following:

URL shortening

Let us assume the short URL looks like this: www.tinyurl.com/{hashValue}. To support the URL shortening use case, we must find a hash function fx that maps a long URL to the hashValue, as shown in Figure 8-3.

The hash function must satisfy the following requirements:

Detailed design for the hash function is discussed in deep dive.

Step 3 - Design deep dive

Up until now, we have discussed the high-level design of URL shortening and URL redirecting. In this section, we dive deep into the following: data model, hash function, URL shortening and URL redirecting.

Data model

In the high-level design, everything is stored in a hash table. This is a good starting point; however, this approach is not feasible for real-world systems as memory resources are limited and expensive. A better option is to store <shortURL, longURL> mapping in a relational database. Figure 8-4 shows a simple database table design. The simplified version of the table contains 3 columns: id, shortURL, longURL.

Hash function

Hash function is used to hash a long URL to a short URL, also known as hashValue.

Hash value length

The hashValue consists of characters from [0-9, a-z, A-Z], containing 10 + 26 + 26 = 62 possible characters. To figure out the length of hashValue, find the smallest n such that 62^n ≥ 365 billion. The system must support up to 365 billion URLs based on the back of the envelope estimation. Table 8-1 shows the length of hashValue and the corresponding maximal number of URLs it can support.

When n = 7, 62 ^ n = ~3.5 trillion, 3.5 trillion is more than enough to hold 365 billion URLs, so the length of hashValue is 7.

We will explore two types of hash functions for a URL shortener. The first one is “hash + collision resolution”, and the second one is “base 62 conversion.” Let us look at them one by one.

Hash + collision resolution

To shorten a long URL, we should implement a hash function that hashes a long URL to a 7- character string. A straightforward solution is to use well-known hash functions like CRC32, MD5, or SHA-1. The following table compares the hash results after applying different hash functions on this URL: https://en.wikipedia.org/wiki/Systems_design.

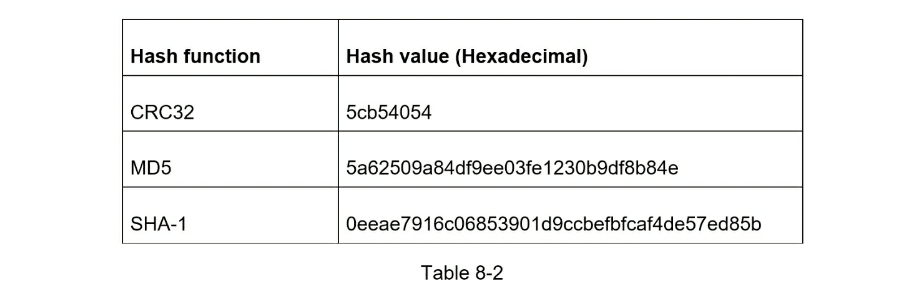

As shown in Table 8-2, even the shortest hash value (from CRC32) is too long (more than 7 characters). How can we make it shorter?

The first approach is to collect the first 7 characters of a hash value; however, this method can lead to hash collisions. To resolve hash collisions, we can recursively append a new predefined string until no more collision is discovered. This process is explained in Figure 8-5.

This method can eliminate collision; however, it is expensive to query the database to check if a shortURL exists for every request.

A technique called bloom filters [2] can improve performance. A bloom filter is a space-efficient probabilistic technique to test if an element is a member of a set. Refer to the reference material [2] for more details.

Base 62 conversion

Base conversion is another approach commonly used for URL shorteners. Base conversion helps to convert the same number between its different number representation systems. Base 62 conversion is used as there are 62 possible characters for hashValue.

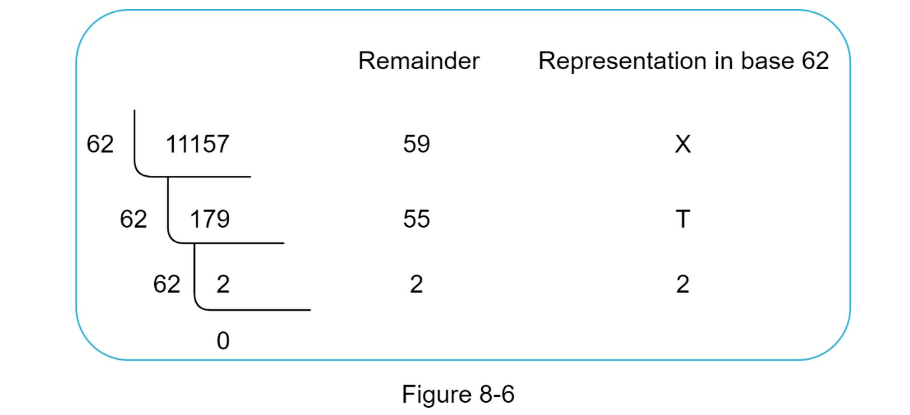

Let us use an example to explain how the conversion works: convert 1115710 base 10 to base 62 representation (1115710 represents 11157 in a base 10 system).

Thus, the short URL is https://tinyurl.com/2TX

Comparison of the two approaches

Table 8-3 shows the differences of the two approaches.

Hash + collision resolution Base 62 conversion
Fixed short URL length The short URL length is not fixed. Goes up with ID
Does not need a unique ID generator Depends on a unique ID generator
Collision is possible and must be resolved Collision impossible
Impossible to figure out the next available shortURL Can figure out next available shortUL as Id increments by 1. Possible security concern

URL shortening deep dive

As one of the core pieces of the system, we want the URL shortening flow to be logically simple and functional. Base 62 conversion is used in our design. We build the following diagram (Figure 8-7) to demonstrate the flow.

  1. longURL is the input.
  2. The system checks if the longURL is in the database.
  3. If it is, it means the longURL was converted to shortURL before. In this case, fetch the shortURL from the database and return it to the client.
  4. If not, the longURL is new. A new unique ID (primary key) Is generated by the unique ID generator.
  5. Convert the ID to shortURL with base 62 conversion.
  6. Create a new database row with the ID, shortURL, and longURL.

To make the flow easier to understand, let us look at a concrete example.

id shortURL longURL
2009215674938 zn9edcu https://en.wikipedia.org/wiki/Systems_design

The distributed unique ID generator is worth mentioning. Its primary function is to generate globally unique IDs, which are used for creating shortURLs. In a highly distributed environment, implementing a unique ID generator is challenging. Luckily, we have already discussed a few solutions in “Chapter 7: Design A Unique ID Generator in Distributed Systems”. You can refer back to it to refresh your memory.

URL redirecting deep dive

Figure 8-8 shows the detailed design of the URL redirecting. As there are more reads than writes, <shortURL, longURL> mapping is stored in a cache to improve performance.

The flow of URL redirecting is summarized as follows:

  1. A user clicks a short URL link: https://tinyurl.com/zn9edcu
  2. The load balancer forwards the request to web servers.
  3. If a shortURL is already in the cache, return the longURL directly.
  4. If a shortURL is not in the cache, fetch the longURL from the database. If it is not in the database, it is likely a user entered an invalid shortURL.
  5. The longURL is returned to the user.

Step 4 - Wrap up

In this chapter, we talked about the API design, data model, hash function, URL shortening, and URL redirecting.

If there is extra time at the end of the interview, here are a few additional talking points.

Reference materials

CHAPTER 9: DESIGN A WEB CRAWLER

In this chapter, we focus on web crawler design: an interesting and classic system design interview question.

A web crawler is known as a robot or spider. It is widely used by search engines to discover new or updated content on the web. Content can be a web page, an image, a video, a PDF file, etc. A web crawler starts by collecting a few web pages and then follows links on those pages to collect new content. Figure 9-1 shows a visual example of the crawl process.

A crawler is used for many purposes:

The complexity of developing a web crawler depends on the scale we intend to support. It could be either a small school project, which takes only a few hours to complete or a gigantic project that requires continuous improvement from a dedicated engineering team. Thus, we will explore the scale and features to support below.

Step 1 - Understand the problem and establish design scope

The basic algorithm of a web crawler is simple:

  1. Given a set of URLs, download all the web pages addressed by the URLs.
  2. Extract URLs from these web pages
  3. Add new URLs to the list of URLs to be downloaded. Repeat these 3 steps.

Does a web crawler work truly as simple as this basic algorithm? Not exactly. Designing a vastly scalable web crawler is an extremely complex task. It is unlikely for anyone to design a massive web crawler within the interview duration. Before jumping into the design, we must ask questions to understand the requirements and establish design scope:

Above are some of the sample questions that you can ask your interviewer. It is important to understand the requirements and clarify ambiguities. Even if you are asked to design a straightforward product like a web crawler, you and your interviewer might not have the same assumptions.

Beside functionalities to clarify with your interviewer, it is also important to note down the following characteristics of a good web crawler:

Back of the envelope estimation

The following estimations are based on many assumptions, and it is important to communicate with the interviewer to be on the same page.

Step 2 - Propose high-level design and get buy-in

Once the requirements are clear, we move on to the high-level design. Inspired by previous studies on web crawling [4] [5], we propose a high-level design as shown in Figure 9-2.

First, we explore each design component to understand their functionalities. Then, we examine the crawler workflow step-by-step.

Seed URLs

A web crawler uses seed URLs as a starting point for the crawl process. For example, to crawl all web pages from a university’s website, an intuitive way to select seed URLs is to use the university’s domain name.

To crawl the entire web, we need to be creative in selecting seed URLs. A good seed URL serves as a good starting point that a crawler can utilize to traverse as many links as possible.

The general strategy is to divide the entire URL space into smaller ones. The first proposed approach is based on locality as different countries may have different popular websites.

Another way is to choose seed URLs based on topics; for example, we can divide URL space into shopping, sports, healthcare, etc. Seed URL selection is an open-ended question. You are not expected to give the perfect answer. Just think out loud.

URL Frontier

Most modern web crawlers split the crawl state into two: to be downloaded and already downloaded. The component that stores URLs to be downloaded is called the URL Frontier.

You can refer to this as a First-in-First-out (FIFO) queue. For detailed information about the URL Frontier, refer to the deep dive.

HTML Downloader

The HTML downloader downloads web pages from the internet. Those URLs are provided by the URL Frontier.

DNS Resolver

To download a web page, a URL must be translated into an IP address. The HTML Downloader calls the DNS Resolver to get the corresponding IP address for the URL. For instance, URL www.wikipedia.org is converted to IP address 198.35.26.96 as of 3/5/2019.

Content Parser

After a web page is downloaded, it must be parsed and validated because malformed web pages could provoke problems and waste storage space. Implementing a content parser in a crawl server will slow down the crawling process. Thus, the content parser is a separate component.

Content Seen?

Online research [6] reveals that 29% of the web pages are duplicated contents, which may cause the same content to be stored multiple times. We introduce the “Content Seen?” data structure to eliminate data redundancy and shorten processing time. It helps to detect new content previously stored in the system. To compare two HTML documents, we can compare them character by character. However, this method is slow and time-consuming, especially when billions of web pages are involved. An efficient way to accomplish this task is to compare the hash values of the two web pages [7].

Content Storage

It is a storage system for storing HTML content. The choice of storage system depends on factors such as data type, data size, access frequency, life span, etc. Both disk and memory are used.

URL Extractor

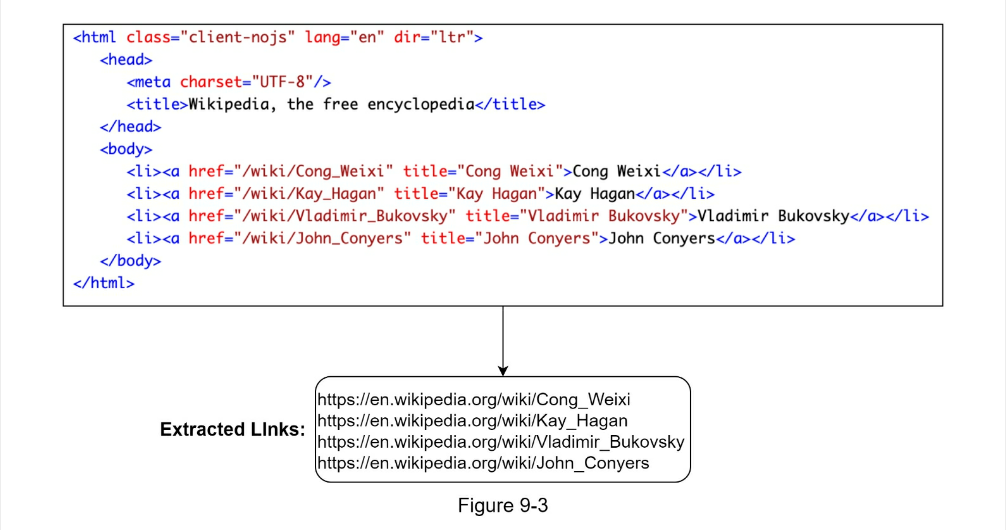

URL Extractor parses and extracts links from HTML pages. Figure 9-3 shows an example of a link extraction process. Relative paths are converted to absolute URLs by adding the “https://en.wikipedia.org” prefix.

URL Filter

The URL filter excludes certain content types, file extensions, error links and URLs in “blacklisted” sites.

URL Seen?

“URL Seen?” is a data structure that keeps track of URLs that are visited before or already in the Frontier. “URL Seen?” helps to avoid adding the same URL multiple times as this can increase server load and cause potential infinite loops.

Bloom filter and hash table are common techniques to implement the “URL Seen?” component. We will not cover the detailed implementation of the bloom filter and hash table here. For more information, refer to the reference materials [4] [8].

URL Storage

URL Storage stores already visited URLs.

So far, we have discussed every system component. Next, we put them together to explain the workflow.

Web crawler workflow

To better explain the workflow step-by-step, sequence numbers are added in the design diagram as shown in Figure 9-4.

Step 3 - Design deep dive

Up until now, we have discussed the high-level design. Next, we will discuss the most important building components and techniques in depth:

DFS vs BFS

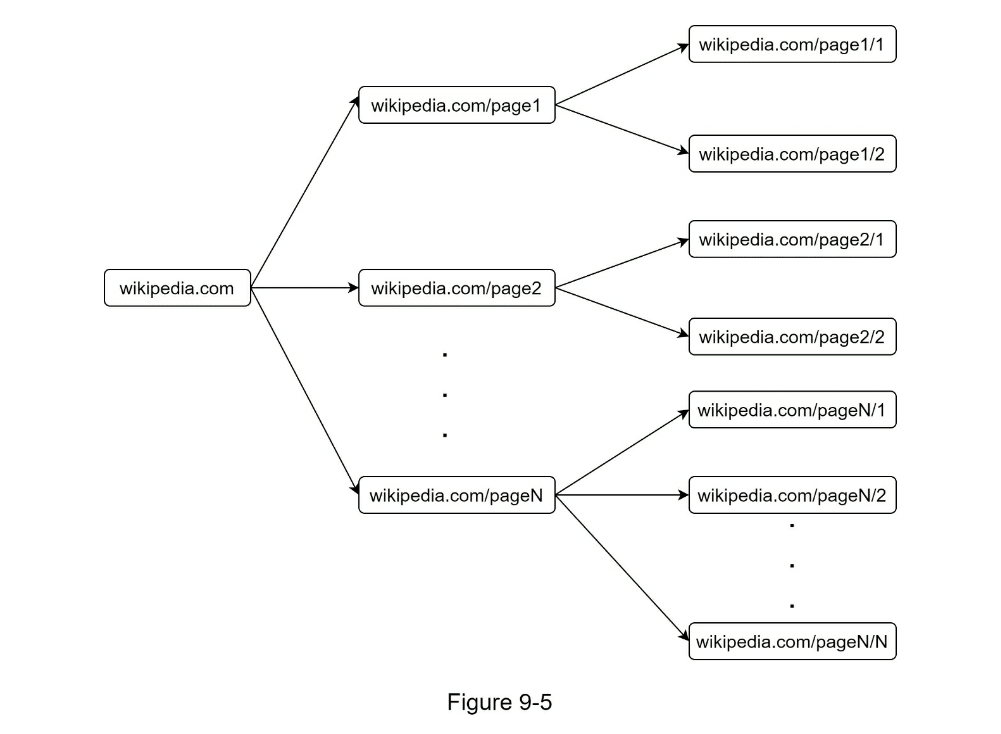

You can think of the web as a directed graph where web pages serve as nodes and hyperlinks (URLs) as edges. The crawl process can be seen as traversing a directed graph from one web page to others. Two common graph traversal algorithms are DFS and BFS. However, DFS is usually not a good choice because the depth of DFS can be very deep.

BFS is commonly used by web crawlers and is implemented by a first-in-first-out (FIFO) queue. In a FIFO queue, URLs are dequeued in the order they are enqueued. However, this implementation has two problems:

URL frontier

URL frontier helps to address these problems. A URL frontier is a data structure that stores URLs to be downloaded. The URL frontier is an important component to ensure politeness,

URL prioritization, and freshness. A few noteworthy papers on URL frontier are mentioned in the reference materials [5] [9]. The findings from these papers are as follows:

Politeness

Generally, a web crawler should avoid sending too many requests to the same hosting server within a short period. Sending too many requests is considered as “impolite” or even treated as denial-of-service (DOS) attack. For example, without any constraint, the crawler can send thousands of requests every second to the same website. This can overwhelm the web servers.

The general idea of enforcing politeness is to download one page at a time from the same host. A delay can be added between two download tasks. The politeness constraint is implemented by maintain a mapping from website hostnames to download (worker) threads.

Each downloader thread has a separate FIFO queue and only downloads URLs obtained from that queue. Figure 9-6 shows the design that manages politeness.

Priority

A random post from a discussion forum about Apple products carries very different weight than posts on the Apple home page. Even though they both have the “Apple” keyword, it is sensible for a crawler to crawl the Apple home page first.

We prioritize URLs based on usefulness, which can be measured by PageRank [10], website traffic, update frequency, etc. “Prioritizer” is the component that handles URL prioritization.

Refer to the reference materials [5] [10] for in-depth information about this concept.

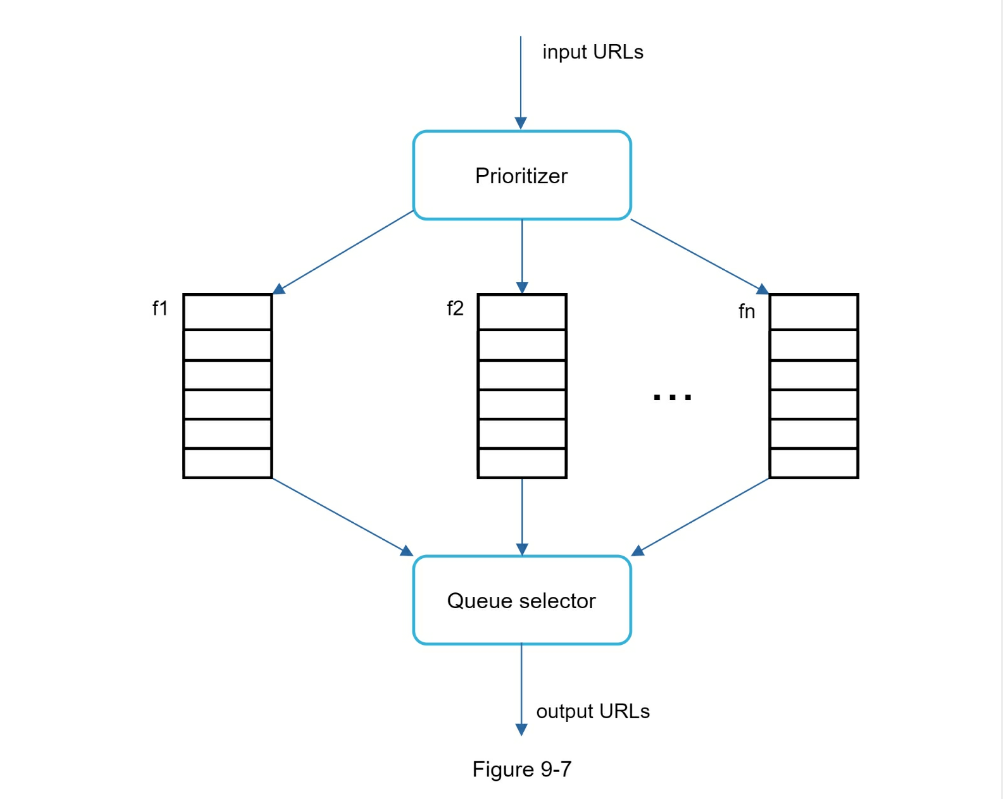

Figure 9-7 shows the design that manages URL priority.

Figure 9-8 presents the URL frontier design, and it contains two modules:

Freshness

Web pages are constantly being added, deleted, and edited. A web crawler must periodically recrawl downloaded pages to keep our data set fresh. Recrawl all the URLs is timeconsuming and resource intensive. Few strategies to optimize freshness are listed as follows:

Storage for URL Frontier

In real-world crawl for search engines, the number of URLs in the frontier could be hundreds of millions [4]. Putting everything in memory is neither durable nor scalable. Keeping everything in the disk is undesirable neither because the disk is slow; and it can easily become a bottleneck for the crawl.

We adopted a hybrid approach. The majority of URLs are stored on disk, so the storage space is not a problem. To reduce the cost of reading from the disk and writing to the disk, we maintain buffers in memory for enqueue/dequeue operations. Data in the buffer is periodically written to the disk.

HTML Downloader

The HTML Downloader downloads web pages from the internet using the HTTP protocol.

Before discussing the HTML Downloader, we look at Robots Exclusion Protocol first.

Robots.txt

Robots.txt, called Robots Exclusion Protocol, is a standard used by websites to communicate with crawlers. It specifies what pages crawlers are allowed to download. Before attempting to crawl a web site, a crawler should check its corresponding robots.txt first and follow its rules.

To avoid repeat downloads of robots.txt file, we cache the results of the file. The file is downloaded and saved to cache periodically. Here is a piece of robots.txt file taken from https://www.amazon.com/robots.txt. Some of the directories like creatorhub are disallowed for Google bot.

User-agent: Googlebot
Disallow: `/creatorhub/*`
Disallow: `/rss/people/*/reviews`
Disallow: `/gp/pdp/rss/*/reviews`
Disallow: `/gp/cdp/member-reviews/`
Disallow: `/gp/aw/cr/`

Besides robots.txt, performance optimization is another important concept we will cover for the HTML downloader.

Performance optimization

Below is a list of performance optimizations for HTML downloader.

1. Distributed crawl

To achieve high performance, crawl jobs are distributed into multiple servers, and each server runs multiple threads. The URL space is partitioned into smaller pieces; so, each downloader is responsible for a subset of the URLs. Figure 9-9 shows an example of a distributed crawl.

2. Cache DNS Resolver

DNS Resolver is a bottleneck for crawlers because DNS requests might take time due to the synchronous nature of many DNS interfaces. DNS response time ranges from 10ms to 200ms. Once a request to DNS is carried out by a crawler thread, other threads are blocked until the first request is completed. Maintaining our DNS cache to avoid calling DNS frequently is an effective technique for speed optimization. Our DNS cache keeps the domain name to IP address mapping and is updated periodically by cron jobs.

3. Locality

Distribute crawl servers geographically. When crawl servers are closer to website hosts, crawlers experience faster download time. Design locality applies to most of the system components: crawl servers, cache, queue, storage, etc.

4. Short timeout

Some web servers respond slowly or may not respond at all. To avoid long wait time, a maximal wait time is specified. If a host does not respond within a predefined time, the crawler will stop the job and crawl some other pages.

Robustness

Besides performance optimization, robustness is also an important consideration. We present a few approaches to improve the system robustness:

Extensibility

As almost every system evolves, one of the design goals is to make the system flexible enough to support new content types. The crawler can be extended by plugging in new modules. Figure 9-10 shows how to add new modules.

Detect and avoid problematic content

This section discusses the detection and prevention of redundant, meaningless, or harmful content.

1. Redundant content

As discussed previously, nearly 30% of the web pages are duplicates. Hashes or checksums help to detect duplication [11].

2. Spider traps

A spider trap is a web page that causes a crawler in an infinite loop. For instance, an infinite deep directory structure is listed as follows: www.spidertrapexample.com/foo/bar/foo/bar/foo/bar/…

Such spider traps can be avoided by setting a maximal length for URLs. However, no onesize-fits-all solution exists to detect spider traps. Websites containing spider traps are easy to identify due to an unusually large number of web pages discovered on such websites. It is hard to develop automatic algorithms to avoid spider traps; however, a user can manually verify and identify a spider trap, and either exclude those websites from the crawler or apply some customized URL filters.

3. Data noise

Some of the contents have little or no value, such as advertisements, code snippets, spam URLs, etc. Those contents are not useful for crawlers and should be excluded if possible.

Step 4 - Wrap up

In this chapter, we first discussed the characteristics of a good crawler: scalability, politeness, extensibility, and robustness. Then, we proposed a design and discussed key components.

Building a scalable web crawler is not a trivial task because the web is enormously large and full of traps. Even though we have covered many topics, we still miss many relevant talking points:

Reference materials

CHAPTER 10: DESIGN A NOTIFICATION SYSTEM

A notification system has already become a very popular feature for many applications in recent years. A notification alerts a user with important information like breaking news, product updates, events, offerings, etc. It has become an indispensable part of our daily life.

A notification is more than just mobile push notification. Three types of notification formats are: mobile push notification, SMS message, and Email. Figure 10-1 shows an example of each of these notifications.

Step 1 - Understand the problem and establish design scope

Building a scalable system that sends out millions of notifications a day is not an easy task. It requires a deep understanding of the notification ecosystem. The interview question is purposely designed to be open-ended and ambiguous, and it is your responsibility to ask questions to clarify the requirements.

Step 2 - Propose high-level design and get buy-in

This section shows the high-level design that supports various notification types: iOS push notification, Android push notification, SMS message, and Email. It is structured as follows:

Different types of notifications

We start by looking at how each notification type works at a high level.

iOS push notification

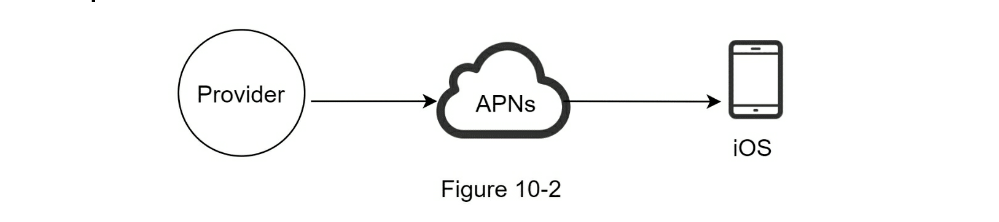

We primary need three components to send an iOS push notification:

{
  "aps":{
  "alert":{
  "title": "Game Request",
  "body": "bob wants to play chess",
  "action-loc-key": "PLAY"
  },
  "badge":5
  }
}

Android push notification

Android adopts a similar notification flow. Instead of using APNs, Firebase Cloud Messaging (FCM) is commonly used to send push notifications to android devices.

SMS message

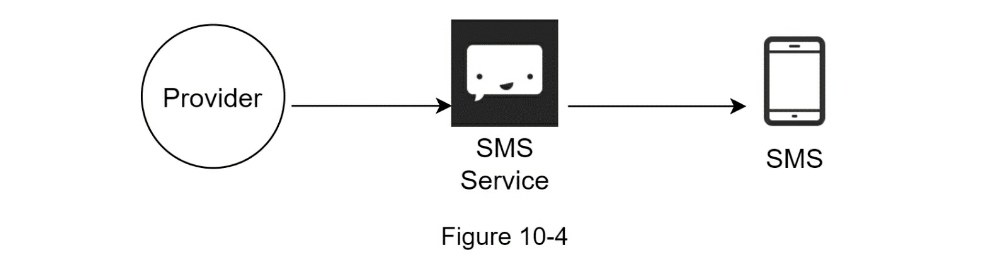

For SMS messages, third party SMS services like Twilio [1], Nexmo [2], and many others are commonly used. Most of them are commercial services.

Email

Although companies can set up their own email servers, many of them opt for commercial email services. Sendgrid [3] and Mailchimp [4] are among the most popular email services, which offer a better delivery rate and data analytics.

Figure 10-6 shows the design after including all the third-party services.

Contact info gathering flow

To send notifications, we need to gather mobile device tokens, phone numbers, or email addresses. As shown in Figure 10-7, when a user installs our app or signs up for the first time, API servers collect user contact info and store it in the database.

Figure 10-8 shows simplified database tables to store contact info. Email addresses and phone numbers are stored in the user table, whereas device tokens are stored in the device table. A user can have multiple devices, indicating that a push notification can be sent to all the user devices.

Notification sending/receiving flow

We will first present the initial design; then, propose some optimizations.

High-level design

Figure 10-9 shows the design, and each system component is explained below.

Service 1 to N:

A service can be a micro-service, a cron job, or a distributed system that triggers notification sending events. For example, a billing service sends emails to remind customers of their due payment or a shopping website tells customers that their packages will be delivered tomorrow via SMS messages.

Notification system:

The notification system is the centerpiece of sending/receiving notifications. Starting with something simple, only one notification server is used. It provides APIs for services 1 to N, and builds notification payloads for third party services.

Third-party services:

Third party services are responsible for delivering notifications to users. While integrating with third-party services, we need to pay extra attention to extensibility. Good extensibility means a flexible system that can easily plugging or unplugging of a third-party service. Another important consideration is that a third-party service might be unavailable in new markets or in the future. For instance, FCM is unavailable in China. Thus, alternative third-party services such as Jpush, PushY, etc are used there.

iOS, Android, SMS, Email: Users receive notifications on their devices.

Three problems are identified in this design:

For example, constructing HTML pages and waiting for responses from third party services could take time. Handling everything in one system can result in the system overload, especially during peak hours.

High-level design (improved)

After enumerating challenges in the initial design, we improve the design as listed below:

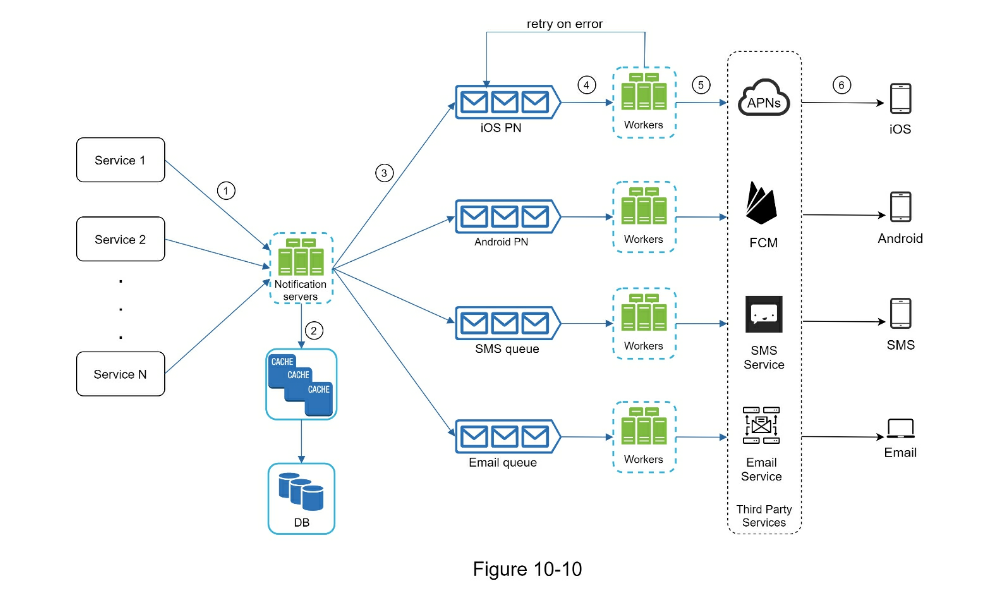

Figure 10-10 shows the improved high-level design.

The best way to go through the above diagram is from left to right:

Service 1 to N:

They represent different services that send notifications via APIs provided by notification servers.

Notification servers:

They provide the following functionalities:

Here is an example of the API to send an email:

POST https://api.example.com/v/sms/send

Request body

{
  "to": [
  {
  "user_id": 123456
  }
  ],
  "from": {
  "email": "from@examples.com"
  },
  "subject": "Hello world",
  "content": [
  {
  "type": "text/plain",
  "value": "hellow world"
  }
  ]
}

Cache:

User info, device info, notification templates are cached.

DB:

It stores data about user, notification, settings, etc.

Message queues:

They remove dependencies between components. Message queues serve as buffers when high volumes of notifications are to be sent out. Each notification type is assigned with a distinct message queue so an outage in one third-party service will not affect other notification types.

Workers:

Workers are a list of servers that pull notification events from message queues and send them to the corresponding third-party services.

Third-party services:

Already explained in the initial design.

iOS, Android, SMS, Email:

Already explained in the initial design.

Next, let us examine how every component works together to send a notification:

  1. A service calls APIs provided by notification servers to send notifications.
  2. Notification servers fetch metadata such as user info, device token, and notification setting from the cache or database.
  3. A notification event is sent to the corresponding queue for processing. For instance, an iOS push notification event is sent to the iOS PN queue.
  4. Workers pull notification events from message queues.
  5. Workers send notifications to third party services.
  6. Third-party services send notifications to user devices.

Step 3 - Design deep dive

In the high-level design, we discussed different types of notifications, contact info gathering flow, and notification sending/receiving flow. We will explore the following in deep dive:

Reliability

We must answer a few important reliability questions when designing a notification system in distributed environments.

How to prevent data loss?

One of the most important requirements in a notification system is that it cannot lose data.

Notifications can usually be delayed or re-ordered, but never lost. To satisfy this requirement, the notification system persists notification data in a database and implements a retry mechanism. The notification log database is included for data persistence.

Will recipients receive a notification exactly once?

The short answer is no. Although notification is delivered exactly once most of the time, the distributed nature could result in duplicate notifications. To reduce the duplication occurrence, we introduce a dedupe mechanism and handle each failure case carefully. Here is a simple dedupe logic:

  1. When a notification event first arrives, we check if it is seen before by checking the event ID.
  2. If it is seen before, it is discarded.
  3. Otherwise, we will send out the notification.

For interested readers to explore why we cannot have exactly once delivery, refer to the reference material [5].

Additional components and considerations

We have discussed how to collect user contact info, send, and receive a notification. A notification system is a lot more than that. Here we discuss additional components including template reusing, notification settings, event tracking, system monitoring, rate limiting, etc.

Notification template

A large notification system sends out millions of notifications per day, and many of these notifications follow a similar format. Notification templates are introduced to avoid building every notification from scratch. A notification template is a preformatted notification to create your unique notification by customizing parameters, styling, tracking links, etc. Here is an example template of push notifications.

The benefits of using notification templates include maintaining a consistent format, reducing the margin error, and saving time.

Notification setting

Users generally receive way too many notifications daily and they can easily feel overwhelmed. Thus, many websites and apps give users fine-grained control over notification settings. This information is stored in the notification setting table, with the following fields:

user_id bigInt
channel varchar # push notification, email or SMS
opt_in boolean # opt-in to receive notification

Before any notification is sent to a user, we first check if a user is opted-in to receive this type of notification.

Rate limiting

To avoid overwhelming users with too many notifications, we can limit the number of notifications a user can receive. This is important because receivers could turn off notifications completely if we send too often.

Retry mechanism

When a third-party service fails to send a notification, the notification will be added to the message queue for retrying. If the problem persists, an alert will be sent out to developers.

Security in push notifications

For iOS or Android apps, appKey and appSecret are used to secure push notification APIs [6]. Only authenticated or verified clients are allowed to send push notifications using our APIs. Interested users should refer to the reference material [6].

Monitor queued notifications

A key metric to monitor is the total number of queued notifications. If the number is large, the notification events are not processed fast enough by workers. To avoid delay in the notification delivery, more workers are needed. Figure 10-12 (credit to [7]) shows an example of queued messages to be processed.

Events tracking

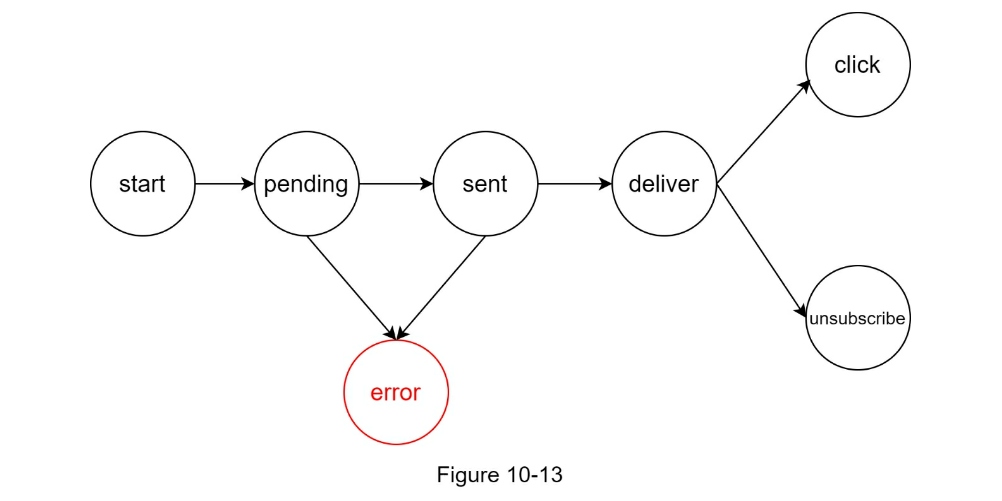

Notification metrics, such as open rate, click rate, and engagement are important in understanding customer behaviors. Analytics service implements events tracking. Integration between the notification system and the analytics service is usually required. Figure 10-13 shows an example of events that might be tracked for analytics purposes.

Updated design

In this design, many new components are added in comparison with the previous design.

Step 4 - Wrap up

Notifications are indispensable because they keep us posted with important information. It could be a push notification about your favorite movie on Netflix, an email about discounts on new products, or a message about your online shopping payment confirmation.

In this chapter, we described the design of a scalable notification system that supports multiple notification formats: push notification, SMS message, and email. We adopted message queues to decouple system components.

Besides the high-level design, we dug deep into more components and optimizations.

Reference materials

CHAPTER 11: DESIGN A NEWS FEED SYSTEM

In this chapter, you are asked to design a news feed system. What is news feed? According to the Facebook help page, “News feed is the constantly updating list of stories in the middle of your home page. News Feed includes status updates, photos, videos, links, app activity, and likes from people, pages, and groups that you follow on Facebook” [1]. This is a popular interview question. Similar questions commonly asked are: design Facebook news feed, Instagram feed, Twitter timeline, etc.

Step 1 - Understand the problem and establish design scope

The first set of clarification questions are to understand what the interviewer has in mind when she asks you to design a news feed system. At the very least, you should figure out what features to support. Here is an example of candidate-interviewer interaction:

Now you have gathered the requirements, we focus on designing the system.

Step 2 - Propose high-level design and get buy-in

The design is divided into two flows: feed publishing and news feed building.

Newsfeed APIs

The news feed APIs are the primary ways for clients to communicate with servers. Those APIs are HTTP based that allow clients to perform actions, which include posting a status, retrieving news feed, adding friends, etc. We discuss two most important APIs: feed publishing API and news feed retrieval API.

Feed publishing API

To publish a post, a HTTP POST request will be sent to the server. The API is shown below:

POST /v1/me/feed

Params:

Newsfeed retrieval API

The API to retrieve news feed is shown below:

GET /v1/me/feed

Params:

Feed publishing

Figure 11-2 shows the high-level design of the feed publishing flow.

Newsfeed building

In this section, we discuss how news feed is built behind the scenes. Figure 11-3 shows the high-level design:

Step 3 - Design deep dive

The high-level design briefly covered two flows: feed publishing and news feed building. Here, we discuss those topics in more depth.

Feed publishing deep dive

Figure 11-4 outlines the detailed design for feed publishing. We have discussed most of components in high-level design, and we will focus on two components: web servers and fanout service.

Web servers

Besides communicating with clients, web servers enforce authentication and rate-limiting.

Only users signed in with valid auth_token are allowed to make posts. The system limits the number of posts a user can make within a certain period, vital to prevent spam and abusive content.

Fanout service

Fanout is the process of delivering a post to all friends. Two types of fanout models are: fanout on write (also called push model) and fanout on read (also called pull model). Both models have pros and cons. We explain their workflows and explore the best approach to support our system.

Fanout on write.

With this approach, news feed is pre-computed during write time. A new post is delivered to friends’ cache immediately after it is published.

Pros:

Cons:

Fanout on read.

The news feed is generated during read time. This is an on-demand model. Recent posts are pulled when a user loads her home page.

Pros:

Cons:

We adopt a hybrid approach to get benefits of both approaches and avoid pitfalls in them.

Since fetching the news feed fast is crucial, we use a push model for the majority of users.

For celebrities or users who have many friends/followers, we let followers pull news content on-demand to avoid system overload. Consistent hashing is a useful technique to mitigate the hotkey problem as it helps to distribute requests/data more evenly.

Let us take a close look at the fanout service as shown in Figure 11-5.

The fanout service works as follows:

  1. Fetch friend IDs from the graph database. Graph databases are suited for managing friend relationship and friend recommendations. Interested readers wishing to learn more about this concept should refer to the reference material [2].
  2. Get friends info from the user cache. The system then filters out friends based on user settings. For example, if you mute someone, her posts will not show up on your news feed even though you are still friends. Another reason why posts may not show is that a user could selectively share information with specific friends or hide it from other people.
  3. Send friends list and new post ID to the message queue.
  4. Fanout workers fetch data from the message queue and store news feed data in the news feed cache. You can think of the news feed cache as a <post_id, user_id> mapping table. Whenever a new post is made, it will be appended to the news feed table as shown in Figure 11-6. The memory consumption can become very large if we store the entire user and post objects in the cache. Thus, only IDs are stored. To keep the memory size small, we set a configurable limit. The chance of a user scrolling through thousands of posts in news feed is slim. Most users are only interested in the latest content, so the cache miss rate is low.
  5. Store <post_id, user_id > in news feed cache. Figure 11-6 shows an example of what the news feed looks like in cache.
post_id user_id
123 456

Newsfeed retrieval deep dive

Figure 11-7 illustrates the detailed design for news feed retrieval.

As shown in Figure 11-7, media content (images, videos, etc.) are stored in CDN for fast retrieval. Let us look at how a client retrieves news feed.

  1. A user sends a request to retrieve her news feed. The request looks like this: /v1/me/feed
  2. The load balancer redistributes requests to web servers.
  3. Web servers call the news feed service to fetch news feeds.
  4. News feed service gets a list post IDs from the news feed cache.
  5. A user’s news feed is more than just a list of feed IDs. It contains username, profile picture, post content, post image, etc. Thus, the news feed service fetches the complete user and post objects from caches (user cache and post cache) to construct the fully hydrated news feed.
  6. The fully hydrated news feed is returned in JSON format back to the client for rendering.

Cache architecture

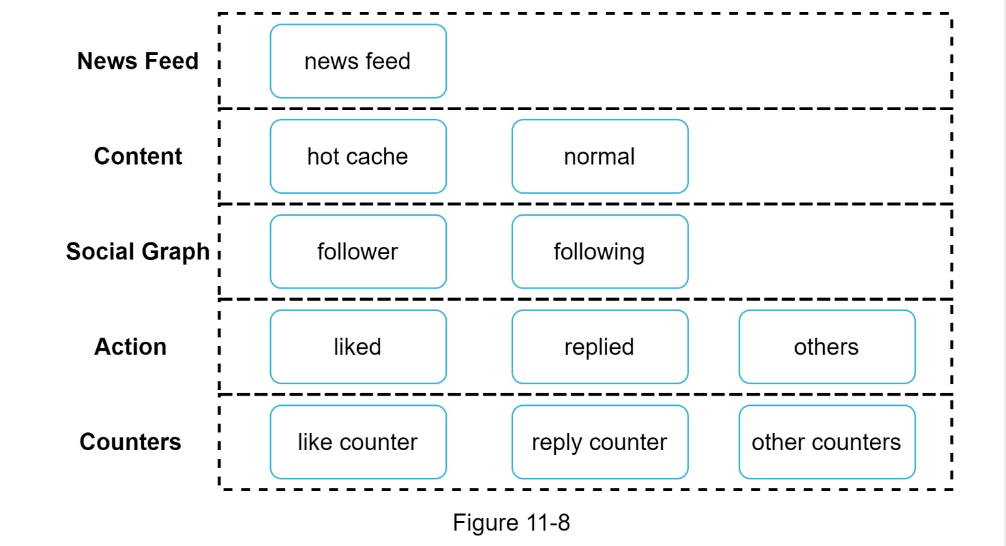

Cache is extremely important for a news feed system. We divide the cache tier into 5 layers as shown in Figure 11-8.

Step 4 - Wrap up

In this chapter, we designed a news feed system. Our design contains two flows: feed publishing and news feed retrieval.

Like any system design interview questions, there is no perfect way to design a system. Every company has its unique constraints, and you must design a system to fit those constraints.

Understanding the tradeoffs of your design and technology choices are important. If there are a few minutes left, you can talk about scalability issues. To avoid duplicated discussion, only high-level talking points are listed below.

Scaling the database:

Other talking points:

Reference materials

  1. How News Feed Works: https://www.facebook.com/help/327131014036297/
  2. Friend of Friend recommendations Neo4j and SQL Sever: http://geekswithblogs.net/brendonpage/archive/2015/10/26/friend-of-friendrecommendations-with-neo4j.aspx

CHAPTER 12: DESIGN A CHAT SYSTEM

In this chapter we explore the design of a chat system. Almost everyone uses a chat app. Figure 12-1 shows some of the most popular apps in the marketplace.

A chat app performs different functions for different people. It is extremely important to nail down the exact requirements. For example, you do not want to design a system that focuses on group chat when the interviewer has one-on-one chat in mind. It is important to explore the feature requirements.

Step 1 - Understand the problem and establish design scope

It is vital to agree on the type of chat app to design. In the marketplace, there are one-on-one chat apps like Facebook Messenger, WeChat, and WhatsApp, office chat apps that focus on group chat like Slack, or game chat apps, like Discord, that focus on large group interaction and low voice chat latency.

The first set of clarification questions should nail down what the interviewer has in mind exactly when she asks you to design a chat system. At the very least, figure out if you should focus on a one-on-one chat or group chat app. Some questions you might ask are as follows:

In the chapter, we focus on designing a chat app like Facebook messenger, with an emphasis on the following features:

It is also important to agree on the design scale. We will design a system that supports 50 million DAU.

Step 2 - Propose high-level design and get buy-in

To develop a high-quality design, we should have a basic knowledge of how clients and servers communicate. In a chat system, clients can be either mobile applications or web applications. Clients do not communicate directly with each other. Instead, each client connects to a chat service, which supports all the features mentioned above. Let us focus on fundamental operations. The chat service must support the following functions:

Figure 12-2 shows the relationships between clients (sender and receiver) and the chat service.

When a client intends to start a chat, it connects the chats service using one or more network protocols. For a chat service, the choice of network protocols is important. Let us discuss this with the interviewer.

Requests are initiated by the client for most client/server applications. This is also true for the sender side of a chat application. In Figure 12-2, when the sender sends a message to the receiver via the chat service, it uses the time-tested HTTP protocol, which is the most common web protocol. In this scenario, the client opens a HTTP connection with the chat service and sends the message, informing the service to send the message to the receiver. The keep-alive is efficient for this because the keep-alive header allows a client to maintain a persistent connection with the chat service. It also reduces the number of TCP handshakes.

HTTP is a fine option on the sender side, and many popular chat applications such as Facebook [1] used HTTP initially to send messages.

However, the receiver side is a bit more complicated. Since HTTP is client-initiated, it is not trivial to send messages from the server. Over the years, many techniques are used to simulate a server-initiated connection: polling, long polling, and WebSocket. Those are important techniques widely used in system design interviews so let us examine each of them.

Polling

As shown in Figure 12-3, polling is a technique that the client periodically asks the server if there are messages available. Depending on polling frequency, polling could be costly. It could consume precious server resources to answer a question that offers no as an answer most of the time.

Long polling

Because polling could be inefficient, the next progression is long polling (Figure 12-4).

In long polling, a client holds the connection open until there are actually new messages available or a timeout threshold has been reached. Once the client receives new messages, it immediately sends another request to the server, restarting the process. Long polling has a few drawbacks:

WebSocket

WebSocket is the most common solution for sending asynchronous updates from server to client. Figure 12-5 shows how it works.

WebSocket connection is initiated by the client. It is bi-directional and persistent. It starts its life as a HTTP connection and could be “upgraded” via some well-defined handshake to a WebSocket connection. Through this persistent connection, a server could send updates to a client. WebSocket connections generally work even if a firewall is in place. This is because they use port 80 or 443 which are also used by HTTP/HTTPS connections.

Earlier we said that on the sender side HTTP is a fine protocol to use, but since WebSocket is bidirectional, there is no strong technical reason not to use it also for sending. Figure 12-6 shows how WebSockets (ws) is used for both sender and receiver sides.

By using WebSocket for both sending and receiving, it simplifies the design and makes implementation on both client and server more straightforward. Since WebSocket connections are persistent, efficient connection management is critical on the server-side.

High-level design

Just now we mentioned that WebSocket was chosen as the main communication protocol between the client and server for its bidirectional communication, it is important to note that everything else does not have to be WebSocket. In fact, most features (sign up, login, user profile, etc) of a chat application could use the traditional request/response method over HTTP. Let us drill in a bit and look at the high-level components of the system.

As shown in Figure 12-7, the chat system is broken down into three major categories:

  1. stateless services,
  2. stateful services, and
  3. third-party integration.

Stateless Services

Stateless services are traditional public-facing request/response services, used to manage the login, signup, user profile, etc. These are common features among many websites and apps.

Stateless services sit behind a load balancer whose job is to route requests to the correct services based on the request paths. These services can be monolithic or individual microservices. We do not need to build many of these stateless services by ourselves as there are services in the market that can be integrated easily. The one service that we will discuss more in deep dive is the service discovery. Its primary job is to give the client a list of DNS host names of chat servers that the client could connect to.

Stateful Service

The only stateful service is the chat service. The service is stateful because each client maintains a persistent network connection to a chat server. In this service, a client normally does not switch to another chat server as long as the server is still available. The service discovery coordinates closely with the chat service to avoid server overloading. We will go into detail in deep dive.

Third-party integration

For a chat app, push notification is the most important third-party integration. It is a way to inform users when new messages have arrived, even when the app is not running. Proper integration of push notification is crucial. Refer to Chapter 10 Design a notification system for more information.

Scalability

On a small scale, all services listed above could fit in one server. Even at the scale we design for, it is in theory possible to fit all user connections in one modern cloud server. The number of concurrent connections that a server can handle will most likely be the limiting factor. In our scenario, at 1M concurrent users, assuming each user connection needs 10K of memory on the server (this is a very rough figure and very dependent on the language choice), it only needs about 10GB of memory to hold all the connections on one box.

If we propose a design where everything fits in one server, this may raise a big red flag in the interviewer’s mind. No technologist would design such a scale in a single server. Single server design is a deal breaker due to many factors. The single point of failure is the biggest among them.

However, it is perfectly fine to start with a single server design. Just make sure the interviewer knows this is a starting point. Putting everything we mentioned together, Figure 12-8 shows the adjusted high-level design.

In Figure 12-8, the client maintains a persistent WebSocket connection to a chat server for real-time messaging.

Storage

At this point, we have servers ready, services up running and third-party integrations complete. Deep down the technical stack is the data layer. Data layer usually requires some effort to get it correct. An important decision we must make is to decide on the right type of database to use: relational databases or NoSQL databases? To make an informed decision, we will examine the data types and read/write patterns.

Two types of data exist in a typical chat system. The first is generic data, such as user profile, setting, user friends list. These data are stored in robust and reliable relational databases.

Replication and sharding are common techniques to satisfy availability and scalability requirements.

The second is unique to chat systems: chat history data. It is important to understand the read/write pattern.

Selecting the correct storage system that supports all of our use cases is crucial. We recommend key-value stores for the following reasons:

Data models

Just now, we talked about using key-value stores as our storage layer. The most important data is message data. Let us take a close look.

Message table for 1 on 1 chat

The primary key is message_id, which helps to decide message sequence. We cannot rely on created_at to decide the message sequence because two messages can be created at the same time.

Message table for group chat

Message table for group chat

The composite primary key is (channel_id, message_id). Channel and group represent the same meaning here. channel_id is the partition key because all queries in a group chat operate in a channel.

Message ID

How to generate message_id is an interesting topic worth exploring. Message_id carries the responsibility of ensuring the order of messages. To ascertain the order of messages, message_id must satisfy the following two requirements:

How can we achieve those two guarantees? The first idea that comes to mind is the “auto_increment” keyword in MySql. However, NoSQL databases usually do not provide such a feature.

The second approach is to use a global 64-bit sequence number generator like Snowflake [6]. This is discussed in “Chapter 7: Design a unique ID generator in a distributed system”.

The final approach is to use local sequence number generator. Local means IDs are only unique within a group. The reason why local IDs work is that maintaining message sequence within one-on-one channel or a group channel is sufficient. This approach is easier to implement in comparison to the global ID implementation.

Step 3 - Design deep dive

In a system design interview, usually you are expected to dive deep into some of the components in the high-level design. For the chat system, service discovery, messaging flows, and online/offline indicators worth deeper exploration.

Service discovery

The primary role of service discovery is to recommend the best chat server for a client based on the criteria like geographical location, server capacity, etc. Apache Zookeeper [7] is a popular open-source solution for service discovery. It registers all the available chat servers and picks the best chat server for a client based on predefined criteria.

Figure 12-11 shows how service discovery (Zookeeper) works.

  1. User A tries to log in to the app.
  2. The load balancer sends the login request to API servers.
  3. After the backend authenticates the user, service discovery finds the best chat server for User A. In this example, server 2 is chosen and the server info is returned back to User A.
  4. User A connects to chat server 2 through WebSocket.

Message flows

It is interesting to understand the end-to-end flow of a chat system. In this section, we will explore 1 on 1 chat flow, message synchronization across multiple devices and group chat flow.

1 on 1 chat flow

Figure 12-12 explains what happens when User A sends a message to User B.

  1. User A sends a chat message to Chat server 1.
  2. Chat server 1 obtains a message ID from the ID generator.
  3. Chat server 1 sends the message to the message sync queue.
  4. The message is stored in a key-value store. 5.a. If User B is online, the message is forwarded to Chat server 2 where User B is connected. 5.b. If User B is offline, a push notification is sent from push notification (PN) servers.
  5. Chat server 2 forwards the message to User B. There is a persistent WebSocket connection between User B and Chat server 2.
Message synchronization across multiple devices

Many users have multiple devices. We will explain how to sync messages across multiple devices. Figure 12-13 shows an example of message synchronization.

In Figure 12-13, user A has two devices: a phone and a laptop. When User A logs in to the chat app with her phone, it establishes a WebSocket connection with Chat server 1. Similarly, there is a connection between the laptop and Chat server 1.

Each device maintains a variable called cur_max_message_id, which keeps track of the latest message ID on the device. Messages that satisfy the following two conditions are considered as news messages:

With distinct cur_max_message_id on each device, message synchronization is easy as each device can get new messages from the KV store.

Small group chat flow

In comparison to the one-on-one chat, the logic of group chat is more complicated. Figure 12-14 and 12-15 explain the flow.

Figure 12-14 explains what happens when User A sends a message in a group chat. Assume there are 3 members in the group (User A, User B and user C). First, the message from User A is copied to each group member’s message sync queue: one for User B and the second for User C. You can think of the message sync queue as an inbox for a recipient. This design choice is good for small group chat because:

WeChat uses a similar approach, and it limits a group to 500 members [8]. However, for groups with a lot of users, storing a message copy for each member is not acceptable.

On the recipient side, a recipient can receive messages from multiple users. Each recipient has an inbox (message sync queue) which contains messages from different senders. Figure 12-15 illustrates the design.

Online presence

An online presence indicator is an essential feature of many chat applications. Usually, you can see a green dot next to a user’s profile picture or username. This section explains what happens behind the scenes.

In the high-level design, presence servers are responsible for managing online status and communicating with clients through WebSocket. There are a few flows that will trigger online status change. Let us examine each of them.

User login

The user login flow is explained in the “Service Discovery” section. After a WebSocket connection is built between the client and the real-time service, user A’s online status and last_active_at timestamp are saved in the KV store. Presence indicator shows the user is online after she logs in.

User logout

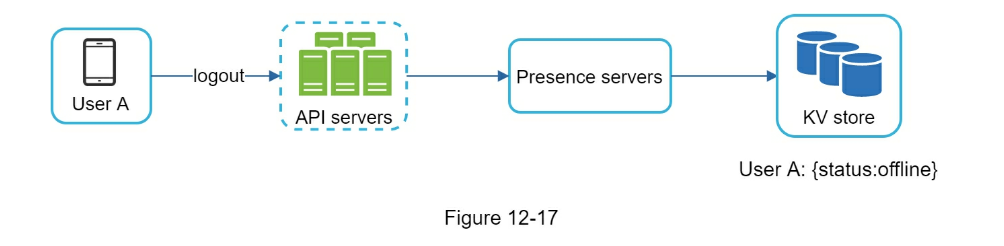

When a user logs out, it goes through the user logout flow as shown in Figure 12-17. The online status is changed to offline in the KV store. The presence indicator shows a user is offline.

User disconnection

We all wish our internet connection is consistent and reliable. However, that is not always the case; thus, we must address this issue in our design. When a user disconnects from the internet, the persistent connection between the client and server is lost. A naive way to handle user disconnection is to mark the user as offline and change the status to online when the connection re-establishes. However, this approach has a major flaw. It is common for users to disconnect and reconnect to the internet frequently in a short time. For example, network connections can be on and off while a user goes through a tunnel. Updating online status on every disconnect/reconnect would make the presence indicator change too often, resulting in poor user experience.

We introduce a heartbeat mechanism to solve this problem. Periodically, an online client sends a heartbeat event to presence servers. If presence servers receive a heartbeat event within a certain time, say x seconds from the client, a user is considered as online. Otherwise, it is offline.

In Figure 12-18, the client sends a heartbeat event to the server every 5 seconds. After sending 3 heartbeat events, the client is disconnected and does not reconnect within x = 30 seconds (This number is arbitrarily chosen to demonstrate the logic). The online status is changed to offline.

Online status fanout

How do user A’s friends know about the status changes? Figure 12-19 explains how it works.

Presence servers use a publish-subscribe model, in which each friend pair maintains a channel. When User A’s online status changes, it publishes the event to three channels, channel A-B, A-C, and A-D. Those three channels are subscribed by User B, C, and D, respectively. Thus, it is easy for friends to get online status updates. The communication between clients and servers is through real-time WebSocket.

The above design is effective for a small user group. For instance, WeChat uses a similar approach because its user group is capped to 500. For larger groups, informing all members about online status is expensive and time consuming. Assume a group has 100,000 members.

Each status change will generate 100,000 events. To solve the performance bottleneck, a possible solution is to fetch online status only when a user enters a group or manually refreshes the friend list.

Step 4 - Wrap up

In this chapter, we presented a chat system architecture that supports both 1-to-1 chat and small group chat. WebSocket is used for real-time communication between the client and server. The chat system contains the following components: chat servers for real-time messaging, presence servers for managing online presence, push notification servers for sending push notifications, key-value stores for chat history persistence and API servers for other functionalities.

If you have extra time at the end of the interview, here are additional talking points:

Reference Materials

  1. Erlang at Facebook: https://www.erlangfactory.com/upload/presentations/31/EugeneLetuchy-ErlangatFacebook.pdf
  2. Messenger and WhatsApp process 60 billion messages a day: https://www.theverge.com/2016/4/12/11415198/facebook-messenger-whatsapp-numbermessages-vs-sms-f8-2016
  3. Long tail: https://en.wikipedia.org/wiki/Long_tail
  4. The Underlying Technology of Messages: https://www.facebook.com/notes/facebookengineering/the-underlying-technology-of-messages/454991608919/
  5. How Discord Stores Billions of Messages: https://blog.discordapp.com/how-discordstores-billions-of-messages-7fa6ec7ee4c7
  6. Announcing Snowflake: https://blog.twitter.com/engineering/en_us/a/2010/announcingsnowflake.html
  7. Apache ZooKeeper: https://zookeeper.apache.org/
  8. From nothing: the evolution of WeChat background system (Article in Chinese): https://www.infoq.cn/article/the-road-of-the-growth-weixin-background
  9. End-to-end encryption: https://faq.whatsapp.com/en/android/28030015/
  10. Flannel: An Application-Level Edge Cache to Make Slack Scale: https://slack.engineering/flannel-an-application-level-edge-cache-to-make-slack-scaleb8a6400e2f6b

CHAPTER 13: DESIGN A SEARCH AUTOCOMPLETE SYSTEM

When searching on Google or shopping at Amazon, as you type in the search box, one or more matches for the search term are presented to you. This feature is referred to as autocomplete, typeahead, search-as-you-type, or incremental search. Figure 13-1 presents an example of a Google search showing a list of autocompleted results when “dinner” is typed into the search box. Search autocomplete is an important feature of many products. This leads us to the interview question: design a search autocomplete system, also called “design top k” or “design top k most searched queries”.

Step 1 - Understand the problem and establish design scope

The first step to tackle any system design interview question is to ask enough questions to clarify requirements. Here is an example of candidate-interviewer interaction:

Candidate: Is the matching only supported at the beginning of a search query or in the middle as well?

Candidate: How many autocomplete suggestions should the system return?

Candidate: How does the system know which 5 suggestions to return?

Candidate: Does the system support spell check?

Candidate: Are search queries in English?

Candidate: Do we allow capitalization and special characters?

Candidate: How many users use the product?

Requirements

Here is a summary of the requirements:

Back of the envelope estimation

Step 2 - Propose high-level design and get buy-in

At the high-level, the system is broken down into two:

Real-time processing is not practical for large data sets; however, it is a good starting point. We will explore a more realistic solution in deep dive.

Data gathering service

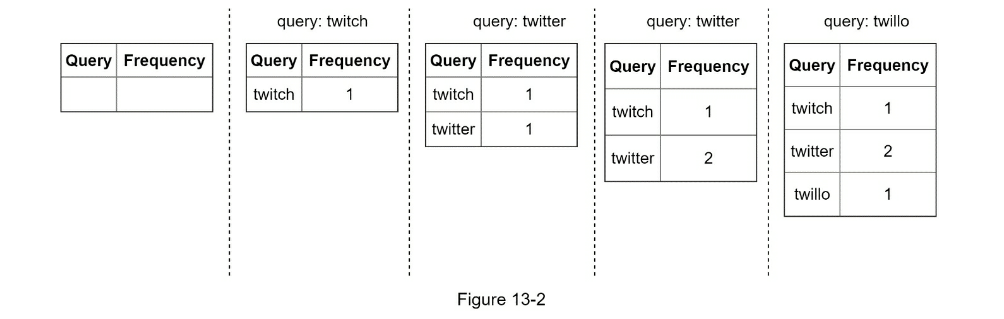

Let us use a simplified example to see how data gathering service works. Assume we have a frequency table that stores the query string and its frequency as shown in Figure 13-2. In the beginning, the frequency table is empty. Later, users enter queries “twitch”, “twitter”, “twitter,” and “twillo” sequentially. Figure 13-2 shows how the frequency table is updated.

Query service

Assume we have a frequency table as shown in Table 13-1. It has two fields.

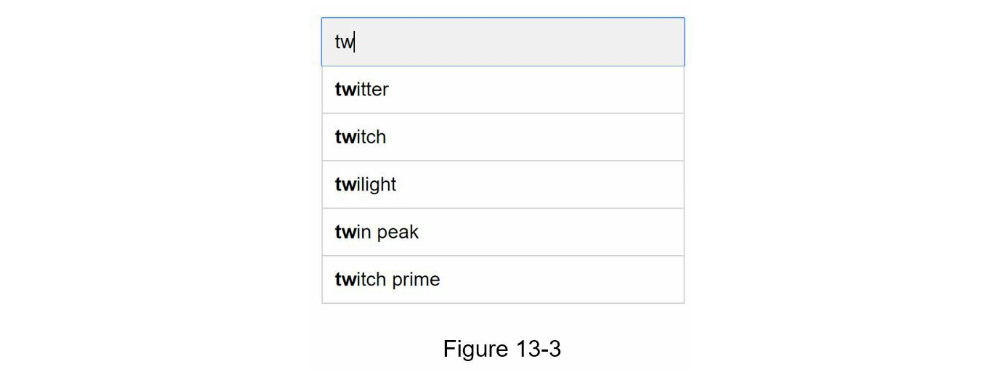

When a user types “tw” in the search box, the following top 5 searched queries are displayed (Figure 13-3), assuming the frequency table is based on Table 13-1.

To get top 5 frequently searched queries, execute the following SQL query:

select * from frequency_table
where query like `prefix%`
order by frequence desc
limit 5

This is an acceptable solution when the data set is small. When it is large, accessing the database becomes a bottleneck. We will explore optimizations in deep dive.

Step 3 - Design deep dive

In the high-level design, we discussed data gathering service and query service. The highlevel design is not optimal, but it serves as a good starting point. In this section, we will dive deep into a few components and explore optimizations as follows:

Trie data structure

Relational databases are used for storage in the high-level design. However, fetching the top 5 search queries from a relational database is inefficient. The data structure trie (prefix tree) is used to overcome the problem. As trie data structure is crucial for the system, we will dedicate significant time to design a customized trie. Please note that some of the ideas are from articles [2] and [3].

Understanding the basic trie data structure is essential for this interview question. However, this is more of a data structure question than a system design question. Besides, many online materials explain this concept. In this chapter, we will only discuss an overview of the trie data structure and focus on how to optimize the basic trie to improve response time.

Trie (pronounced “try”) is a tree-like data structure that can compactly store strings. The name comes from the word retrieval, which indicates it is designed for string retrieval operations. The main idea of trie consists of the following:

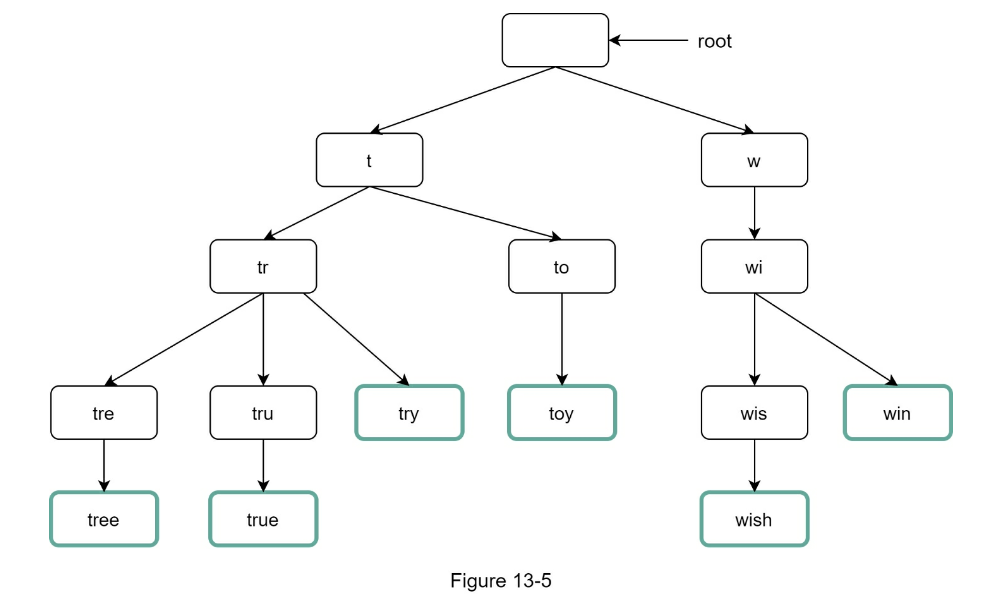

Figure 13-5 shows a trie with search queries “tree”, “try”, “true”, “toy”, “wish”, “win”. Search queries are highlighted with a thicker border.

Basic trie data structure stores characters in nodes. To support sorting by frequency, frequency info needs to be included in nodes. Assume we have the following frequency table.

After adding frequency info to nodes, updated trie data structure is shown in Figure 13-6.

How does autocomplete work with trie? Before diving into the algorithm, let us define some terms.

Steps to get top k most searched queries are listed below:

  1. Find the prefix. Time complexity: O(p).
  2. Traverse the subtree from the prefix node to get all valid children. A child is valid if it can form a valid query string. Time complexity: O(c)
  3. Sort the children and get top k. Time complexity: O(clogc)

Let us use an example as shown in Figure 13-7 to explain the algorithm. Assume k equals to 2 and a user types “tr” in the search box. The algorithm works as follows:

The time complexity of this algorithm is the sum of time spent on each step mentioned above:

O(p) + O(c) + O(clogc)

The above algorithm is straightforward. However, it is too slow because we need to traverse the entire trie to get top k results in the worst-case scenario. Below are two optimizations:

  1. Limit the max length of a prefix
  2. Cache top search queries at each node

Let us look at these optimizations one by one.

Limit the max length of a prefix

Users rarely type a long search query into the search box. Thus, it is safe to say p is a small integer number, say 50. If we limit the length of a prefix, the time complexity for “Find the prefix” can be reduced from O(p) to O(small constant), aka O(1).

Cache top search queries at each node

To avoid traversing the whole trie, we store top k most frequently used queries at each node.

Since 5 to 10 autocomplete suggestions are enough for users, k is a relatively small number.

In our specific case, only the top 5 search queries are cached.

By caching top search queries at every node, we significantly reduce the time complexity to retrieve the top 5 queries. However, this design requires a lot of space to store top queries at every node. Trading space for time is well worth it as fast response time is very important.

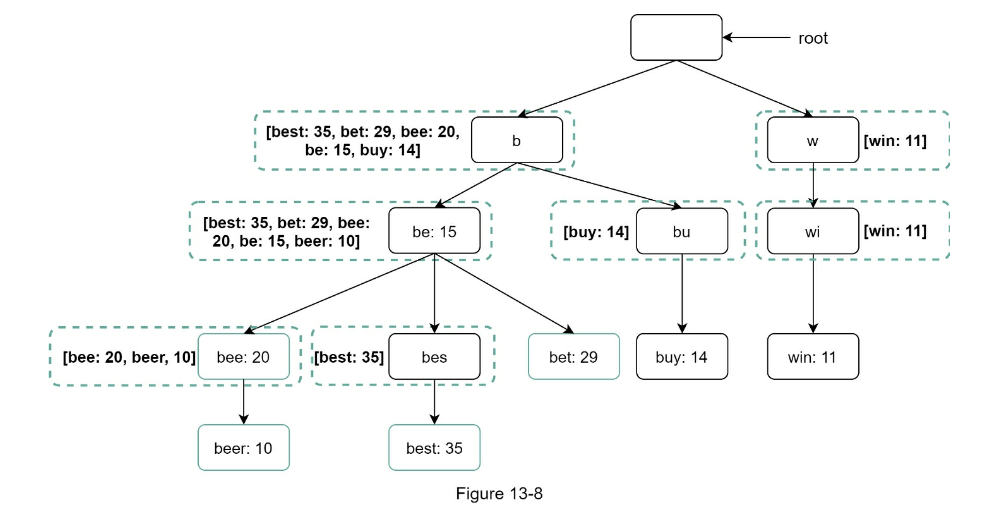

Figure 13-8 shows the updated trie data structure. Top 5 queries are stored on each node. For example, the node with prefix “be” stores the following: [best: 35, bet: 29, bee: 20, be: 15, beer: 10].

Let us revisit the time complexity of the algorithm after applying those two optimizations:

  1. Find the prefix node. Time complexity: O(1)
  2. Return top k. Since top k queries are cached, the time complexity for this step is O(1).

As the time complexity for each of the steps is reduced to O(1), our algorithm takes only O(1) to fetch top k queries.

Data gathering service

In our previous design, whenever a user types a search query, data is updated in real-time.

This approach is not practical for the following two reasons:

To design a scalable data gathering service, we examine where data comes from and how data is used. Real-time applications like Twitter require up to date autocomplete suggestions.

However, autocomplete suggestions for many Google keywords might not change much on a daily basis.

Despite the differences in use cases, the underlying foundation for data gathering service remains the same because data used to build the trie is usually from analytics or logging services.

Figure 13-9 shows the redesigned data gathering service. Each component is examined one by one.

Analytics Logs. It stores raw data about search queries. Logs are append-only and are not indexed. Table 13-3 shows an example of the log file.

Aggregators. The size of analytics logs is usually very large, and data is not in the right format. We need to aggregate data so it can be easily processed by our system.

Depending on the use case, we may aggregate data differently. For real-time applications such as Twitter, we aggregate data in a shorter time interval as real-time results are important. On the other hand, aggregating data less frequently, say once per week, might be good enough for many use cases. During an interview session, verify whether real-time results are important. We assume trie is rebuilt weekly.

Aggregated Data.

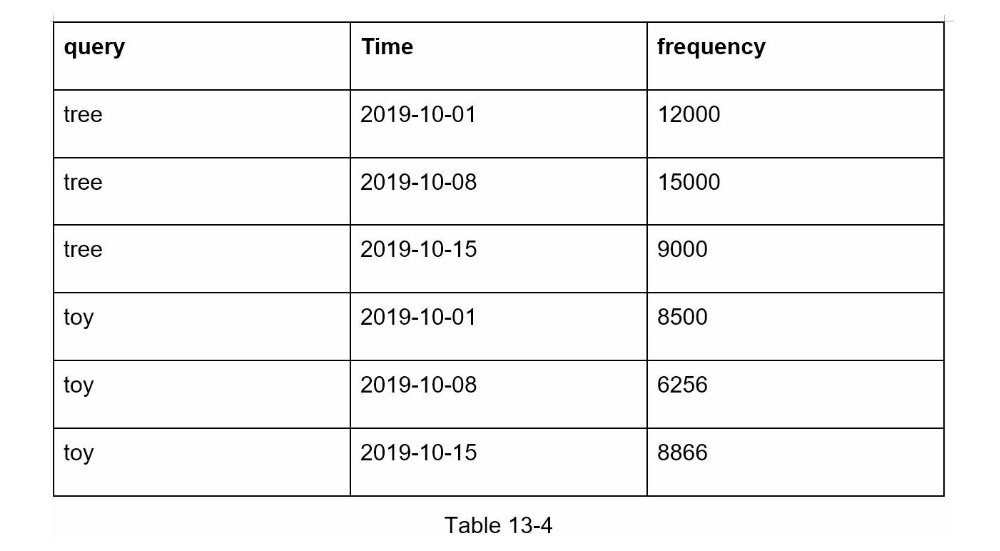

Table 13-4 shows an example of aggregated weekly data. “time” field represents the start time of a week. “frequency” field is the sum of the occurrences for the corresponding query in that week.

Workers. Workers are a set of servers that perform asynchronous jobs at regular intervals. They build the trie data structure and store it in Trie DB.

Trie Cache. Trie Cache is a distributed cache system that keeps trie in memory for fast read. It takes a weekly snapshot of the DB.

Trie DB. Trie DB is the persistent storage. Two options are available to store the data:

  1. Document store: Since a new trie is built weekly, we can periodically take a snapshot of it, serialize it, and store the serialized data in the database. Document stores like MongoDB [4] are good fits for serialized data.
  2. Key-value store: A trie can be represented in a hash table form [4] by applying the following logic:

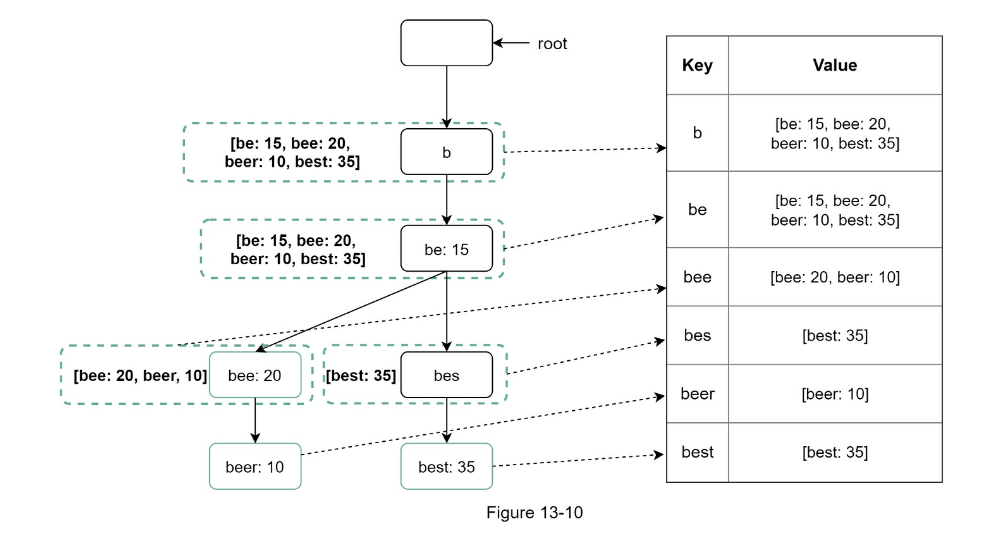

Figure 13-10 shows the mapping between the trie and hash table.

In Figure 13-10, each trie node on the left is mapped to the <key, value> pair on the right. If you are unclear how key-value stores work, refer to Chapter 6: Design a key-value store.

Query service

In the high-level design, query service calls the database directly to fetch the top 5 results.

Figure 13-11 shows the improved design as previous design is inefficient.

  1. A search query is sent to the load balancer.
  2. The load balancer routes the request to API servers.
  3. API servers get trie data from Trie Cache and construct autocomplete suggestions for the client.
  4. In case the data is not in Trie Cache, we replenish data back to the cache. This way, all subsequent requests for the same prefix are returned from the cache. A cache miss can happen when a cache server is out of memory or offline.

Query service requires lightning-fast speed. We propose the following optimizations:

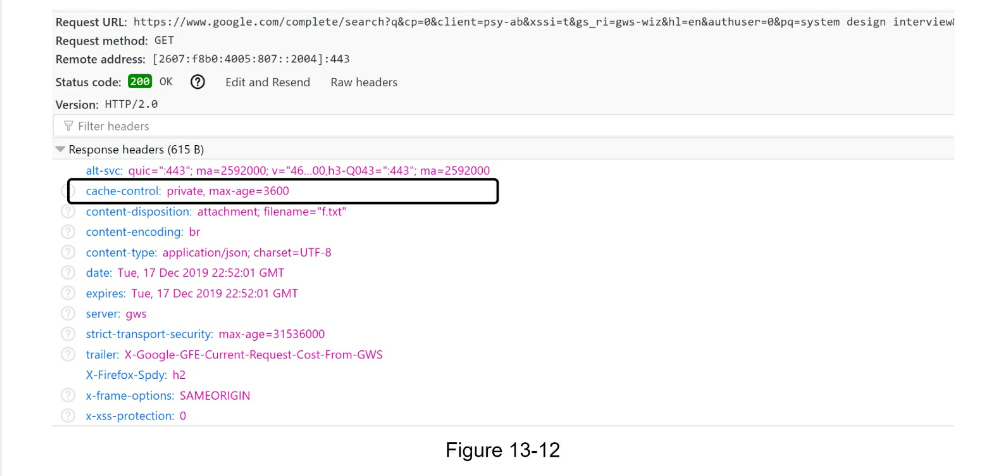

Trie operations

Trie is a core component of the autocomplete system. Let us look at how trie operations (create, update, and delete) work.

Create

Trie is created by workers using aggregated data. The source of data is from Analytics Log/DB.

Update

There are two ways to update the trie.

  1. Update the trie weekly. Once a new trie is created, the new trie replaces the old one.
  2. Update individual trie node directly. We try to avoid this operation because it is slow. However, if the size of the trie is small, it is an acceptable solution. When we update a trie node, its ancestors all the way up to the root must be updated because ancestors store top queries of children. Figure 13-13 shows an example of how the update operation works. On the left side, the search query “beer” has the original value 10. On the right side, it is updated to 30. As you can see, the node and its ancestors have the “beer” value updated to 30.

Delete

We have to remove hateful, violent, sexually explicit, or dangerous autocomplete suggestions. We add a filter layer (Figure 13-14) in front of the Trie Cache to filter out unwanted suggestions. Having a filter layer gives us the flexibility of removing results based on different filter rules. Unwanted suggestions are removed physically from the database asynchronically so the correct data set will be used to build trie in the next update cycle.

Scale the storage

Now that we have developed a system to bring autocomplete queries to users, it is time to solve the scalability issue when the trie grows too large to fit in one server.

Since English is the only supported language, a naive way to shard is based on the first character. Here are some examples.

Following this logic, we can split queries up to 26 servers because there are 26 alphabetic characters in English. Let us define sharding based on the first character as first level sharding. To store data beyond 26 servers, we can shard on the second or even at the third level. For example, data queries that start with ‘a’ can be split into 4 servers: ‘aa-ag’, ‘ahan’, ‘ao-au’, and ‘av-az’.

At the first glance this approach seems reasonable, until you realize that there are a lot more words that start with the letter ‘c’ than ‘x’. This creates uneven distribution.

To mitigate the data imbalance problem, we analyze historical data distribution pattern and apply smarter sharding logic as shown in Figure 13-15. The shard map manager maintains a lookup database for identifying where rows should be stored. For example, if there are a similar number of historical queries for ‘s’ and for ‘u’, ‘v’, ‘w’, ‘x’, ‘y’ and ‘z’ combined, we can maintain two shards: one for ‘s’ and one for ‘u’ to ‘z’.

Step 4 - Wrap up

After you finish the deep dive, your interviewer might ask you some follow up questions.

Interviewer: How do you extend your design to support multiple languages?

Interviewer: What if top search queries in one country are different from others?

Interviewer: How can we support the trending (real-time) search queries?

Building a real-time search autocomplete is complicated and is beyond the scope of this book so we will only give a few ideas:

Reference Materials

  1. The Life of a Typeahead Query: https://www.facebook.com/notes/facebookengineering/the-life-of-a-typeahead-query/389105248919/
  2. How We Built Prefixy: A Scalable Prefix Search Service for Powering Autocomplete: https://medium.com/@prefixyteam/how-we-built-prefixy-a-scalable-prefix-search-servicefor-powering-autocomplete-c20f98e2eff1
  3. Prefix Hash Tree An Indexing Data Structure over Distributed Hash Tables: https://people.eecs.berkeley.edu/~sylvia/papers/pht.pdf
  4. MongoDB wikipedia: https://en.wikipedia.org/wiki/MongoDB
  5. Unicode frequently asked questions: https://www.unicode.org/faq/basic_q.html
  6. Apache hadoop: https://hadoop.apache.org/
  7. Spark streaming: https://spark.apache.org/streaming/
  8. Apache storm: https://storm.apache.org/
  9. Apache kafka: https://kafka.apache.org/documentation/

CHAPTER 14: DESIGN YOUTUBE

In this chapter, you are asked to design YouTube. The solution to this question can be applied to other interview questions like designing a video sharing platform such as Netflix and Hulu.

YouTube looks simple: content creators upload videos and viewers click play. Is it really that simple? Not really. There are lots of complex technologies underneath the simplicity. Let us look at some impressive statistics, demographics, and fun facts of YouTube in 2020 [1] [2].

From these statistics, we know YouTube is enormous, global and makes a lot of money.

Step 1 - Understand the problem and establish design scope

As revealed in Figure 14-1, besides watching a video, you can do a lot more on YouTube. For example, comment, share, or like a video, save a video to playlists, subscribe to a channel, etc. It is impossible to design everything within a 45- or 60-minute interview. Thus, it is important to ask questions to narrow down the scope.

In the chapter, we focus on designing a video streaming service with the following features:

Back of the envelope estimation

The following estimations are based on many assumptions, so it is important to communicate with the interviewer to make sure she is on the same page.

From the rough cost estimation, we know serving videos from the CDN costs lots of money.

Even though cloud providers are willing to lower the CDN costs significantly for big customers, the cost is still substantial. We will discuss ways to reduce CDN costs in deep dive.

Step 2 - Propose high-level design and get buy-in

As discussed previously, the interviewer recommended leveraging existing cloud services instead of building everything from scratch. CDN and blob storage are the cloud services we will leverage. Some readers might ask why not building everything by ourselves? Reasons are listed below:

At the high-level, the system comprises three components (Figure 14-3).

Client: You can watch YouTube on your computer, mobile phone, and smartTV.

CDN: Videos are stored in CDN. When you press play, a video is streamed from the CDN.

API servers: Everything else except video streaming goes through API servers. This includes feed recommendation, generating video upload URL, updating metadata database and cache, user signup, etc.

In the question/answer session, the interviewer showed interests in two flows:

We will explore the high-level design for each of them.

Video uploading flow

Figure 14-4 shows the high-level design for the video uploading.

It consists of the following components:

Now that we understand each component individually, let us examine how the video uploading flow works. The flow is broken down into two processes running in parallel.

  1. Upload the actual video.
  2. Update video metadata. Metadata contains information about video URL, size, resolution, format, user info, etc.

Flow 1: upload the actual video

Figure 14-5 shows how to upload the actual video. The explanation is shown below:

  1. Videos are uploaded to the original storage.
  2. Transcoding servers fetch videos from the original storage and start transcoding.
  3. Once transcoding is complete, the following two steps are executed in parallel:
  1. API servers inform the client that the video is successfully uploaded and is ready for streaming.

Flow b: update the metadata

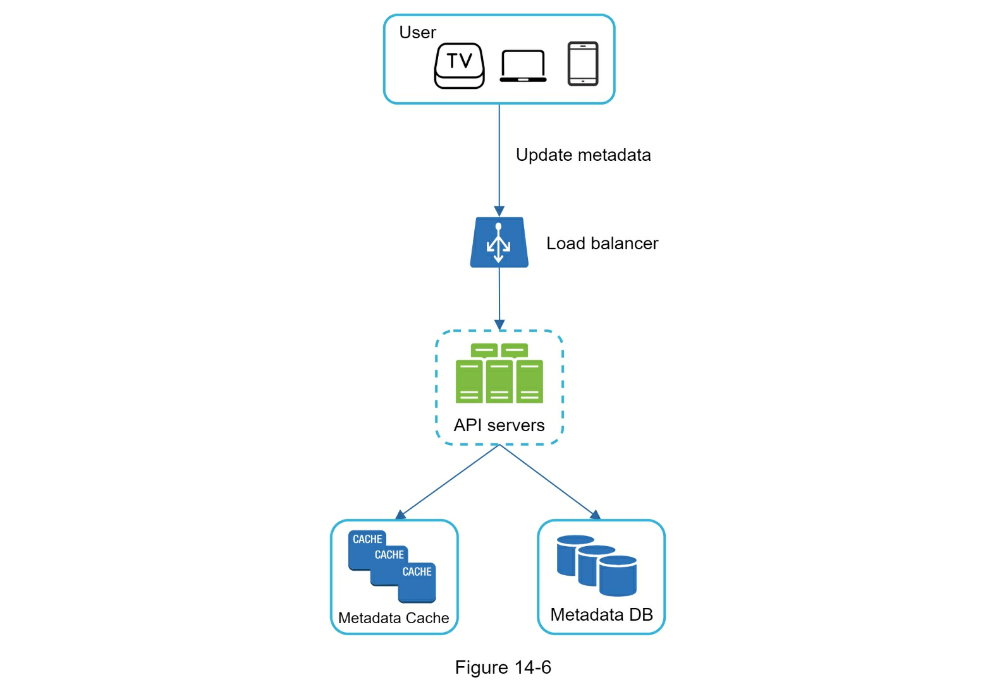

While a file is being uploaded to the original storage, the client in parallel sends a request to update the video metadata as shown in Figure 14-6. The request contains video metadata, including file name, size, format, etc. API servers update the metadata cache and database.

Video streaming flow

Whenever you watch a video on YouTube, it usually starts streaming immediately and you do not wait until the whole video is downloaded. Downloading means the whole video is copied to your device, while streaming means your device continuously receives video streams from remote source videos. When you watch streaming videos, your client loads a little bit of data at a time so you can watch videos immediately and continuously.

Before we discuss video streaming flow, let us look at an important concept: streaming protocol. This is a standardized way to control data transfer for video streaming. Popular streaming protocols are:

You do not need to fully understand or even remember those streaming protocol names as they are low-level details that require specific domain knowledge. The important thing here is to understand that different streaming protocols support different video encodings and playback players. When we design a video streaming service, we have to choose the right streaming protocol to support our use cases. To learn more about streaming protocols, here is an excellent article [7].

Videos are streamed from CDN directly. The edge server closest to you will deliver the video. Thus, there is very little latency. Figure 14-7 shows a high level of design for video streaming.

Step 3 - Design deep dive

In the high-level design, the entire system is broken down in two parts: video uploading flow and video streaming flow. In this section, we will refine both flows with important optimizations and introduce error handling mechanisms.

Video transcoding

When you record a video, the device (usually a phone or camera) gives the video file a certain format. If you want the video to be played smoothly on other devices, the video must be encoded into compatible bitrates and formats. Bitrate is the rate at which bits are processed over time. A higher bitrate generally means higher video quality. High bitrate streams need more processing power and fast internet speed.

Video transcoding is important for the following reasons:

Many types of encoding formats are available; however, most of them contain two parts:

Directed acyclic graph (DAG) model

Transcoding a video is computationally expensive and time-consuming. Besides, different content creators may have different video processing requirements. For instance, some content creators require watermarks on top of their videos, some provide thumbnail images themselves, and some upload high definition videos, whereas others do not.

To support different video processing pipelines and maintain high parallelism, it is important to add some level of abstraction and let client programmers define what tasks to execute. For example, Facebook’s streaming video engine uses a directed acyclic graph (DAG) programming model, which defines tasks in stages so they can be executed sequentially or parallelly [8]. In our design, we adopt a similar DAG model to achieve flexibility and parallelism. Figure 14-8 represents a DAG for video transcoding.

In Figure 14-8, the original video is split into video, audio, and metadata. Here are some of the tasks that can be applied on a video file:

Video transcoding architecture

The proposed video transcoding architecture that leverages the cloud services, is shown in Figure 14-10.

The architecture has six main components: preprocessor, DAG scheduler, resource manager, task workers, temporary storage, and encoded video as the output. Let us take a close look at each component.

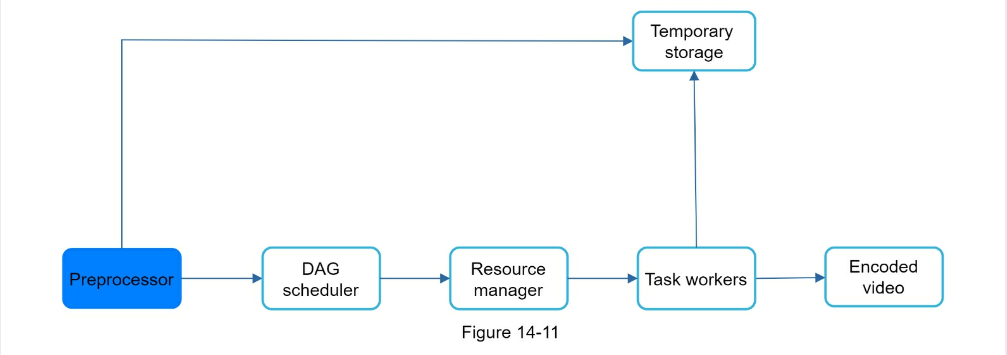

Preprocessor

The preprocessor has 4 responsibilities:

  1. Video splitting. Video stream is split or further split into smaller Group of Pictures (GOP) alignment. GOP is a group/chunk of frames arranged in a specific order. Each chunk is an independently playable unit, usually a few seconds in length.
  2. Some old mobile devices or browsers might not support video splitting. Preprocessor split videos by GOP alignment for old clients.
  3. DAG generation. The processor generates DAG based on configuration files client programmers write. Figure 14-12 is a simplified DAG representation which has 2 nodes and 1 edge:

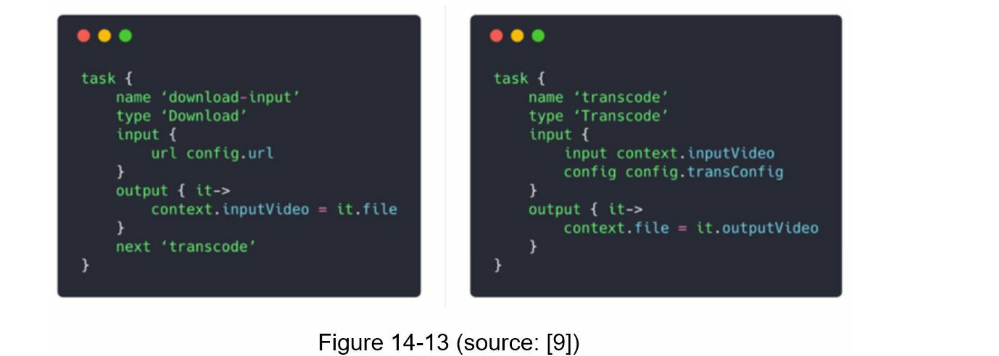

  1. Cache data. The preprocessor is a cache for segmented videos. For better reliability, the preprocessor stores GOPs and metadata in temporary storage. If video encoding fails, the system could use persisted data for retry operations.

DAG scheduler

The DAG scheduler splits a DAG graph into stages of tasks and puts them in the task queue in the resource manager. Figure 14-15 shows an example of how the DAG scheduler works.

As shown in Figure 14-15, the original video is split into three stages: Stage 1: video, audio, and metadata. The video file is further split into two tasks in stage 2: video encoding and thumbnail. The audio file requires audio encoding as part of the stage 2 tasks.

Resource manager

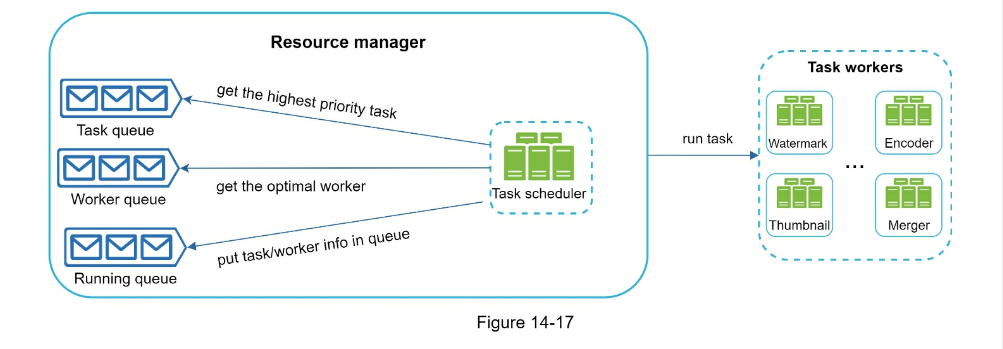

The resource manager is responsible for managing the efficiency of resource allocation. It contains 3 queues and a task scheduler as shown in Figure 14-17.

The resource manager works as follows:

Task workers

Task workers run the tasks which are defined in the DAG. Different task workers may run different tasks as shown in Figure 14-19.

Temporary storage

Multiple storage systems are used here. The choice of storage system depends on factors like data type, data size, access frequency, data life span, etc. For instance, metadata is frequently accessed by workers, and the data size is usually small. Thus, caching metadata in memory is a good idea. For video or audio data, we put them in blob storage. Data in temporary storage is freed up once the corresponding video processing is complete.

Encoded video

Encoded video is the final output of the encoding pipeline. Here is an example of the output: funny_720p.mp4 .

System optimizations

At this point, you ought to have good understanding about the video uploading flow, video streaming flow and video transcoding. Next, we will refine the system with optimizations, including speed, safety, and cost-saving.

Speed optimization: parallelize video uploading

Uploading a video as a whole unit is inefficient. We can split a video into smaller chunks by

GOP alignment as shown in Figure 14-22.

This allows fast resumable uploads when the previous upload failed. The job of splitting a video file by GOP can be implemented by the client to improve the upload speed as shown in Figure 14-23.

Speed optimization: place upload centers close to users

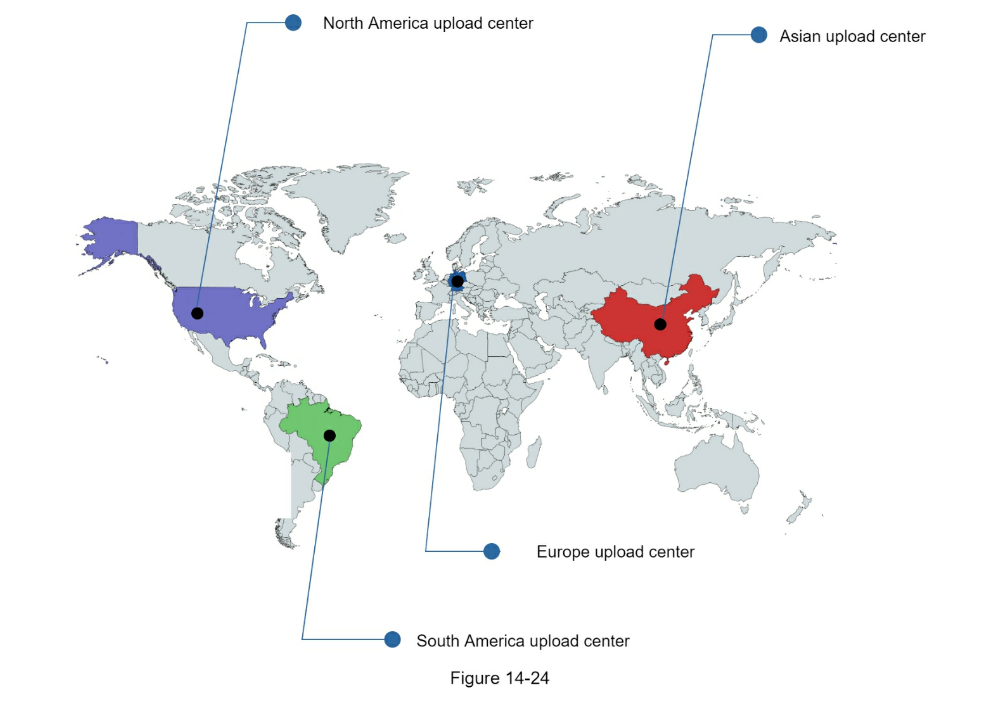

Another way to improve the upload speed is by setting up multiple upload centers across the globe (Figure 14-24). People in the United States can upload videos to the North America upload center, and people in China can upload videos to the Asian upload center. To achieve this, we use CDN as upload centers.

Speed optimization: parallelism everywhere

Achieving low latency requires serious efforts. Another optimization is to build a loosely coupled system and enable high parallelism.

Our design needs some modifications to achieve high parallelism. Let us zoom in to the flow of how a video is transferred from original storage to the CDN. The flow is shown in Figure 14-25, revealing that the output depends on the input of the previous step. This dependency makes parallelism difficult.

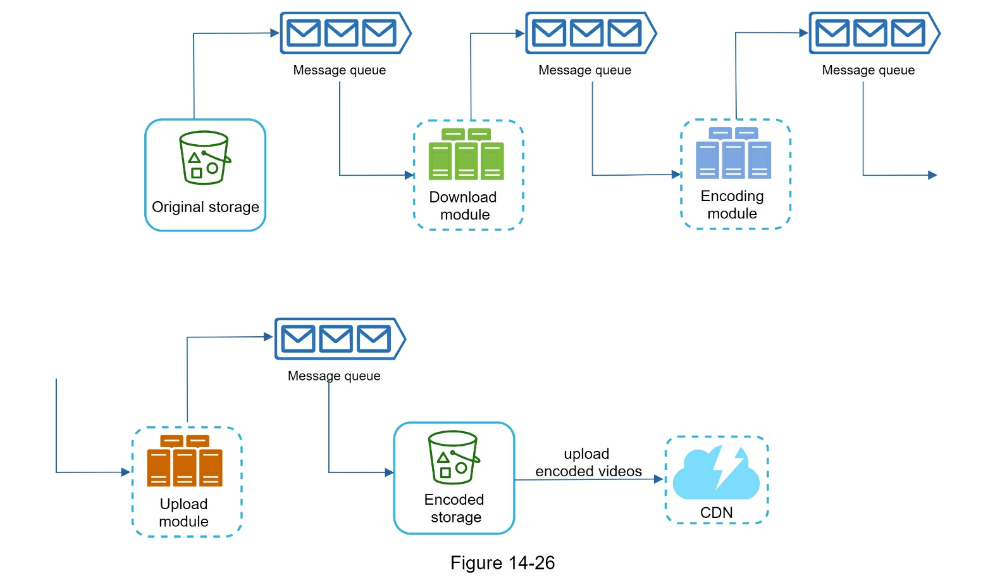

To make the system more loosely coupled, we introduced message queues as shown in Figure 14-26. Let us use an example to explain how message queues make the system more loosely coupled.

Safety optimization: pre-signed upload URL

Safety is one of the most important aspects of any product. To ensure only authorized users upload videos to the right location, we introduce pre-signed URLs as shown in Figure 14-27.

The upload flow is updated as follows:

  1. The client makes a HTTP request to API servers to fetch the pre-signed URL, which gives the access permission to the object identified in the URL. The term pre-signed URL is used by uploading files to Amazon S3. Other cloud service providers might use a different name. For instance, Microsoft Azure blob storage supports the same feature, but call it “Shared Access Signature” [10].
  2. API servers respond with a pre-signed URL.
  3. Once the client receives the response, it uploads the video using the pre-signed URL.

Safety optimization: protect your videos

Many content makers are reluctant to post videos online because they fear their original videos will be stolen. To protect copyrighted videos, we can adopt one of the following three safety options:

Cost-saving optimization

CDN is a crucial component of our system. It ensures fast video delivery on a global scale.

However, from the back of the envelope calculation, we know CDN is expensive, especially when the data size is large. How can we reduce the cost?

Previous research shows that YouTube video streams follow long-tail distribution [11] [12].

It means a few popular videos are accessed frequently but many others have few or no viewers. Based on this observation, we implement a few optimizations:

  1. Only serve the most popular videos from CDN and other videos from our high capacity storage video servers (Figure 14-28).
  2. For less popular content, we may not need to store many encoded video versions. Short videos can be encoded on-demand.
  3. Some videos are popular only in certain regions. There is no need to distribute these videos to other regions.
  4. Build your own CDN like Netflix and partner with Internet Service Providers (ISPs).

Building your CDN is a giant project; however, this could make sense for large streaming companies. An ISP can be Comcast, AT&T, Verizon, or other internet providers. ISPs are located all around the world and are close to users. By partnering with ISPs, you can improve the viewing experience and reduce the bandwidth charges.

All those optimizations are based on content popularity, user access pattern, video size, etc. It is important to analyze historical viewing patterns before doing any optimization. Here are some of the interesting articles on this topic: [12] [13].

Error handling

For a large-scale system, system errors are unavoidable. To build a highly fault-tolerant system, we must handle errors gracefully and recover from them fast. Two types of errors exist:

Typical errors for each system component are covered by the following playbook:

Step 4 - Wrap up

In this chapter, we presented the architecture design for video streaming services like YouTube. If there is extra time at the end of the interview, here are a few additional points:

Congratulations on getting this far! Now give yourself a pat on the back. Good job!

Reference Materials

  1. YouTube by the numbers: https://www.omnicoreagency.com/youtube-statistics/
  2. 2019 YouTube Demographics: https://blog.hubspot.com/marketing/youtube-demographics
  3. Cloudfront Pricing: https://aws.amazon.com/cloudfront/pricing/
  4. Netflix on AWS: https://aws.amazon.com/solutions/case-studies/netflix/
  5. Akamai homepage: https://www.akamai.com/
  6. Binary large object: https://en.wikipedia.org/wiki/Binary_large_object
  7. Here’s What You Need to Know About Streaming Protocols: https://www.dacast.com/blog/streaming-protocols/
  8. SVE: Distributed Video Processing at Facebook Scale: https://www.cs.princeton.edu/~wlloyd/papers/sve-sosp17.pdf
  9. Weibo video processing architecture (in Chinese): https://www.upyun.com/opentalk/399.html
  10. Delegate access with a shared access signature: https://docs.microsoft.com/en-us/rest/api/storageservices/delegate-access-with-shared-accesssignature
  11. YouTube scalability talk by early YouTube employee: https://www.youtube.com/watch?v=w5WVu624fY8
  12. Understanding the characteristics of internet short video sharing: A youtube-based measurement study. https://arxiv.org/pdf/0707.3670.pdf
  13. Content Popularity for Open Connect: https://netflixtechblog.com/content-popularity-for-open-connect-b86d56f613b

CHAPTER 15: DESIGN GOOGLE DRIVE

In recent years, cloud storage services such as Google Drive, Dropbox, Microsoft OneDrive, and Apple iCloud have become very popular. In this chapter, you are asked to design Google Drive.

Let us take a moment to understand Google Drive before jumping into the design. Google Drive is a file storage and synchronization service that helps you store documents, photos, videos, and other files in the cloud. You can access your files from any computer, smartphone, and tablet. You can easily share those files with friends, family, and coworkers [1]. Figure 15-1 and 15-2 show what Google drive looks like on a browser and mobile application, respectively.

Step 1 - Understand the problem and establish design scope

Designing a Google drive is a big project, so it is important to ask questions to narrow down the scope.

In this chapter, we focus on the following features:

Features not discussed in this chapter include:

Other than clarifying requirements, it is important to understand non-functional requirements:

Back of the envelope estimation

Step 2 - Propose high-level design and get buy-in

Instead of showing the high-level design diagram from the beginning, we will use a slightly different approach. We will start with something simple: build everything in a single server.

Then, gradually scale it up to support millions of users. By doing this exercise, it will refresh your memory about some important topics covered in the book.

Let us start with a single server setup as listed below:

We spend a few hours setting up an Apache web server, a MySql database, and a directory called drive/ as the root directory to store uploaded files. Under drive/ directory, there is a list of directories, known as namespaces. Each namespace contains all the uploaded files for that user. The filename on the server is kept the same as the original file name. Each file or folder can be uniquely identified by joining the namespace and the relative path.

Figure 15-3 shows an example of how the /drive directory looks like on the left side and its expanded view on the right side.

APIs

What do the APIs look like? We primary need 3 APIs: upload a file, download a file, and get file revisions.

1. Upload a file to Google Drive

Two types of uploads are supported:

Here is an example of resumable upload API: https://api.example.com/files/upload?uploadType=resumable

Params:

A resumable upload is achieved by the following 3 steps [2]:

2. Download a file from Google Drive

Example API: https://api.example.com/files/download

Params:

Example params:
{
"path": "/recipes/soup/best_soup.txt"
}
3. Get file revisions

Example API: https://api.example.com/files/list_revisions

Params:

Example params:

{
"path": "/recipes/soup/best_soup.txt",
"limit": 20
}

All the APIs require user authentication and use HTTPS. Secure Sockets Layer (SSL) protects data transfer between the client and backend servers.

Move away from single server

As more files are uploaded, eventually you get the space full alert as shown in Figure 15-4.

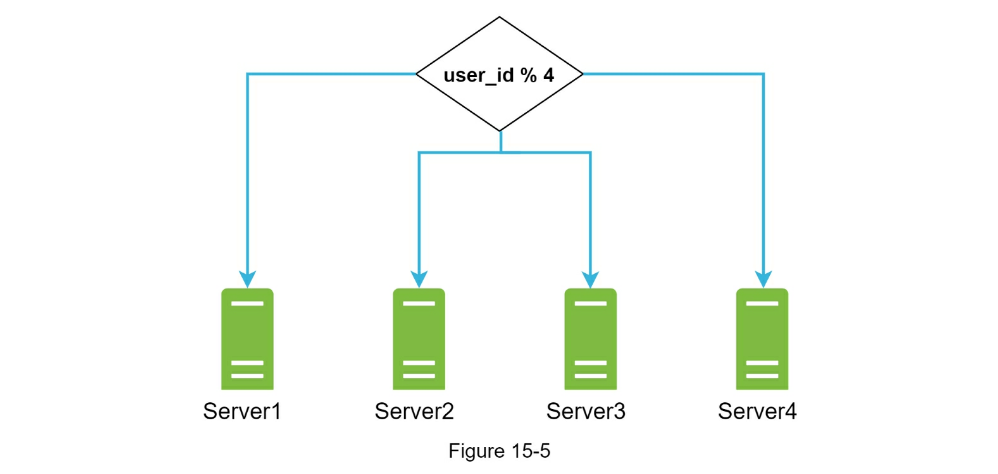

Only 10 MB of storage space is left! This is an emergency as users cannot upload files anymore. The first solution comes to mind is to shard the data, so it is stored on multiple storage servers. Figure 15-5 shows an example of sharding based on user_id .

You pull an all-nighter to set up database sharding and monitor it closely. Everything works smoothly again. You have stopped the fire, but you are still worried about potential data losses in case of storage server outage. You ask around and your backend guru friend Frank told you that many leading companies like Netflix and Airbnb use Amazon S3 for storage. “Amazon Simple Storage Service (Amazon S3) is an object storage service that offers industry-leading scalability, data availability, security, and performance” [3]. You decide to do some research to see if it is a good fit.

After a lot of reading, you gain a good understanding of the S3 storage system and decide to store files in S3. Amazon S3 supports same-region and cross-region replication. A region is a geographic area where Amazon web services (AWS) have data centers. As shown in Figure 15-6, data can be replicated on the same-region (left side) and cross-region (right side).

Redundant files are stored in multiple regions to guard against data loss and ensure availability. A bucket is like a folder in file systems.

After putting files in S3, you can finally have a good night's sleep without worrying about data losses. To stop similar problems from happening in the future, you decide to do further research on areas you can improve. Here are a few areas you find:

After applying the above improvements, you have successfully decoupled web servers, metadata database, and file storage from a single server. The updated design is shown in Figure 15-7.

Sync conflicts

For a large storage system like Google Drive, sync conflicts happen from time to time. When two users modify the same file or folder at the same time, a conflict happens. How can we resolve the conflict? Here is our strategy: the first version that gets processed wins, and the version that gets processed later receives a conflict. Figure 15-8 shows an example of a sync conflict.

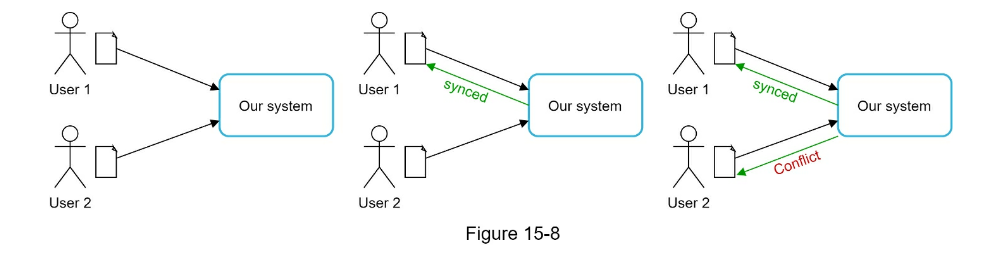

In Figure 15-8, user 1 and user 2 tries to update the same file at the same time, but user 1’s file is processed by our system first. User 1’s update operation goes through, but, user 2 gets a sync conflict. How can we resolve the conflict for user 2? Our system presents both copies of the same file: user 2’s local copy and the latest version from the server (Figure 15-9). User 2 has the option to merge both files or override one version with the other.

While multiple users are editing the same document at the same, it is challenging to keep the document synchronized. Interested readers should refer to the reference material [4] [5].

High-level design

Figure 15-10 illustrates the proposed high-level design. Let us examine each component of the system.

User:

A user uses the application either through a browser or mobile app.

Block servers:

Block servers upload blocks to cloud storage. Block storage, referred to as block-level storage, is a technology to store data files on cloud-based environments. A file can be split into several blocks, each with a unique hash value, stored in our metadata database. Each block is treated as an independent object and stored in our storage system (S3). To reconstruct a file, blocks are joined in a particular order. As for the block size, we use Dropbox as a reference: it sets the maximal size of a block to 4MB [6].

Cloud storage

A file is split into smaller blocks and stored in cloud storage.

Cold storage

Cold storage is a computer system designed for storing inactive data, meaning files are not accessed for a long time.

Load balancer

A load balancer evenly distributes requests among API servers.

API servers

These are responsible for almost everything other than the uploading flow. API servers are used for user authentication, managing user profile, updating file metadata, etc.

Metadata database

It stores metadata of users, files, blocks, versions, etc. Please note that files are stored in the cloud and the metadata database only contains metadata.

Metadata cache

Some of the metadata are cached for fast retrieval.

Notification service

It is a publisher/subscriber system that allows data to be transferred from notification service to clients as certain events happen. In our specific case, notification service notifies relevant clients when a file is added/edited/removed elsewhere so they can pull the latest changes.

Offline backup queue

If a client is offline and cannot pull the latest file changes, the offline backup queue stores the info so changes will be synced when the client is online.

We have discussed the design of Google Drive at the high-level. Some of the components are complicated and worth careful examination; we will discuss these in detail in the deep dive.

Step 3 - Design deep dive

In this section, we will take a close look at the following: block servers, metadata database, upload flow, download flow, notification service, save storage space and failure handling.

Block servers

For large files that are updated regularly, sending the whole file on each update consumes a lot of bandwidth. Two optimizations are proposed to minimize the amount of network traffic being transmitted:

Thus, blocks are compressed using compression algorithms depending on file types. For example, gzip and bzip2 are used to compress text files. Different compression algorithms are needed to compress images and videos.

In our system, block servers do the heavy lifting work for uploading files. Block servers process files passed from clients by splitting a file into blocks, compressing each block, and encrypting them. Instead of uploading the whole file to the storage system, only modified blocks are transferred.

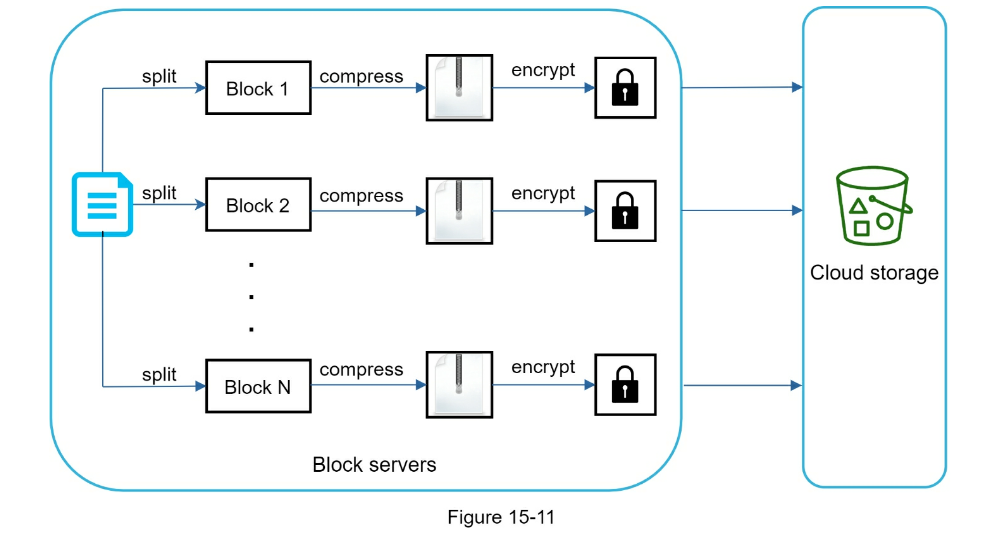

Figure 15-11 shows how a block server works when a new file is added.

Figure 15-12 illustrates delta sync, meaning only modified blocks are transferred to cloud storage. Highlighted blocks “block 2” and “block 5” represent changed blocks. Using delta sync, only those two blocks are uploaded to the cloud storage.

Block servers allow us to save network traffic by providing delta sync and compression.

High consistency requirement

Our system requires strong consistency by default. It is unacceptable for a file to be shown differently by different clients at the same time. The system needs to provide strong consistency for metadata cache and database layers.

Memory caches adopt an eventual consistency model by default, which means different replicas might have different data. To achieve strong consistency, we must ensure the following:

Achieving strong consistency in a relational database is easy because it maintains the ACID (Atomicity, Consistency, Isolation, Durability) properties [9]. However, NoSQL databases do not support ACID properties by default. ACID properties must be programmatically incorporated in synchronization logic. In our design, we choose relational databases because the ACID is natively supported.

Metadata database

Figure 15-13 shows the database schema design. Please note this is a highly simplified version as it only includes the most important tables and interesting fields.

User

The user table contains basic information about the user such as username, email, profile photo, etc.

Device

Device table stores device info. Push_id is used for sending and receiving mobile push notifications. Please note a user can have multiple devices.

Namespace

A namespace is the root directory of a user.

File

File table stores everything related to the latest file.

File_version

It stores version history of a file. Existing rows are read-only to keep the integrity of the file revision history.

Block

It stores everything related to a file block. A file of any version can be reconstructed by joining all the blocks in the correct order.

Upload flow

Let us discuss what happens when a client uploads a file. To better understand the flow, we draw the sequence diagram as shown in Figure 15-14.

In Figure 15-14, two requests are sent in parallel: add file metadata and upload the file to cloud storage. Both requests originate from client 1.

When a file is edited, the flow is similar, so we will not repeat it.

Download flow

Download flow is triggered when a file is added or edited elsewhere. How does a client know if a file is added or edited by another client? There are two ways a client can know:

Once a client knows a file is changed, it first requests metadata via API servers, then downloads blocks to construct the file. Figure 15-15 shows the detailed flow. Note, only the most important components are shown in the diagram due to space constraint.

  1. Notification service informs client 2 that a file is changed somewhere else.
  2. Once client 2 knows that new updates are available, it sends a request to fetch metadata.
  3. API servers call metadata DB to fetch metadata of the changes.
  4. Metadata is returned to the API servers.
  5. Client 2 gets the metadata.
  6. Once the client receives the metadata, it sends requests to block servers to download blocks.
  7. Block servers first download blocks from cloud storage.
  8. Cloud storage returns blocks to the block servers.
  9. Client 2 downloads all the new blocks to reconstruct the file.

Notification service

To maintain file consistency, any mutation of a file performed locally needs to be informed to other clients to reduce conflicts. Notification service is built to serve this purpose. At the high-level, notification service allows data to be transferred to clients as events happen. Here are a few options:

Even though both options work well, we opt for long polling for the following two reasons:

Google Drive, notifications are sent infrequently with no burst of data.

With long polling, each client establishes a long poll connection to the notification service. If changes to a file are detected, the client will close the long poll connection. Closing the connection means a client must connect to the metadata server to download the latest changes. After a response is received or connection timeout is reached, a client immediately sends a new request to keep the connection open.

Save storage space

To support file version history and ensure reliability, multiple versions of the same file are stored across multiple data centers. Storage space can be filled up quickly with frequent backups of all file revisions. Three techniques are proposed to reduce storage costs:

Failure Handling

Failures can occur in a large-scale system and we must adopt design strategies to address these failures. Your interviewer might be interested in hearing about how you handle the following system failures:

Step 4 - Wrap up

In this chapter, we proposed a system design to support Google Drive. The combination of strong consistency, low network bandwidth and fast sync make the design interesting. Our design contains two flows: manage file metadata and file sync. Notification service is another important component of the system. It uses long polling to keep clients up to date with file changes.

Like any system design interview questions, there is no perfect solution. Every company has its unique constraints and you must design a system to fit those constraints. Knowing the tradeoffs of your design and technology choices are important. If there are a few minutes left, you can talk about different design choices.

For example, we can upload files directly to cloud storage from the client instead of going through block servers. The advantage of this approach is that it makes file upload faster because a file only needs to be transferred once to the cloud storage. In our design, a file is transferred to block servers first, and then to the cloud storage. However, the new approach has a few drawbacks:

Another interesting evolution of the system is moving online/offline logic to a separate service. Let us call it presence service. By moving presence service out of notification servers, online/offline functionality can easily be integrated by other services.

Reference Materials

  1. Google Drive: https://www.google.com/drive/
  2. Upload file data: https://developers.google.com/drive/api/v2/manage-uploads
  3. Amazon S3: https://aws.amazon.com/s3
  4. Differential Synchronization https://neil.fraser.name/writing/sync/
  5. Differential Synchronization youtube talk https://www.youtube.com/watch?v=S2Hp_1jqpY8
  6. How We’ve Scaled Dropbox: https://youtu.be/PE4gwstWhmc
  7. Tridgell, A., & Mackerras, P. (1996). The rsync algorithm.
  8. Librsync. (n.d.). Retrieved April 18, 2015, from https://github.com/librsync/librsync
  9. ACID: https://en.wikipedia.org/wiki/ACID
  10. Dropbox security white paper: https://www.dropbox.com/static/business/resources/Security_Whitepaper.pdf
  11. Amazon S3 Glacier: https://aws.amazon.com/glacier/faqs/

CHAPTER 16: THE LEARNING CONTINUES

Designing good systems requires years of accumulation of knowledge. One shortcut is to dive into real-world system architectures. Below is a collection of helpful reading materials. We highly recommend you pay attention to both the shared principles and the underlying technologies. Researching each technology and understanding what problems it solves is a great way to strengthen your knowledge base and refine the design process.

Real-world systems

The following materials can help you understand general design ideas of real system architectures behind different companies.

Company engineering blogs

If you are going to interview with a company, it is a great idea to read their engineering blogs and get familiar with technologies and systems adopted and implemented there. Besides, engineering blogs provide invaluable insights about certain fields. Reading them regularly could help us become better engineers.

Here is a list of engineering blogs of well-known large companies and startups.

AFTERWORD

Congratulations! You are at the end of this interview guide. You have accumulated skills and knowledge to design systems. Not everyone has the discipline to learn what you have learned.

Take a moment and pat yourself on the back. Your hard work will be paid off.

Landing a dream job is a long journey and requires lots of time and effort. Practice makes perfect. Best luck!

Thank you for buying and reading this book. Without readers like you, our work would not exist. We hope you have enjoyed the book!

If you don’t mind, please review this book on Amazon: https://tinyurl.com/y7d3ltbc It would help me attract more wonderful readers like you.

Please subscribe to our email list if you want to be notified when new chapters are available: https://bit.ly/3dtIcsE

If you have comments or questions about this book, feel free to send us an email at systemdesigninsider@gmail.com. Besides, if you notice any errors, please let us know so we can make corrections in the next edition. Thank you!
